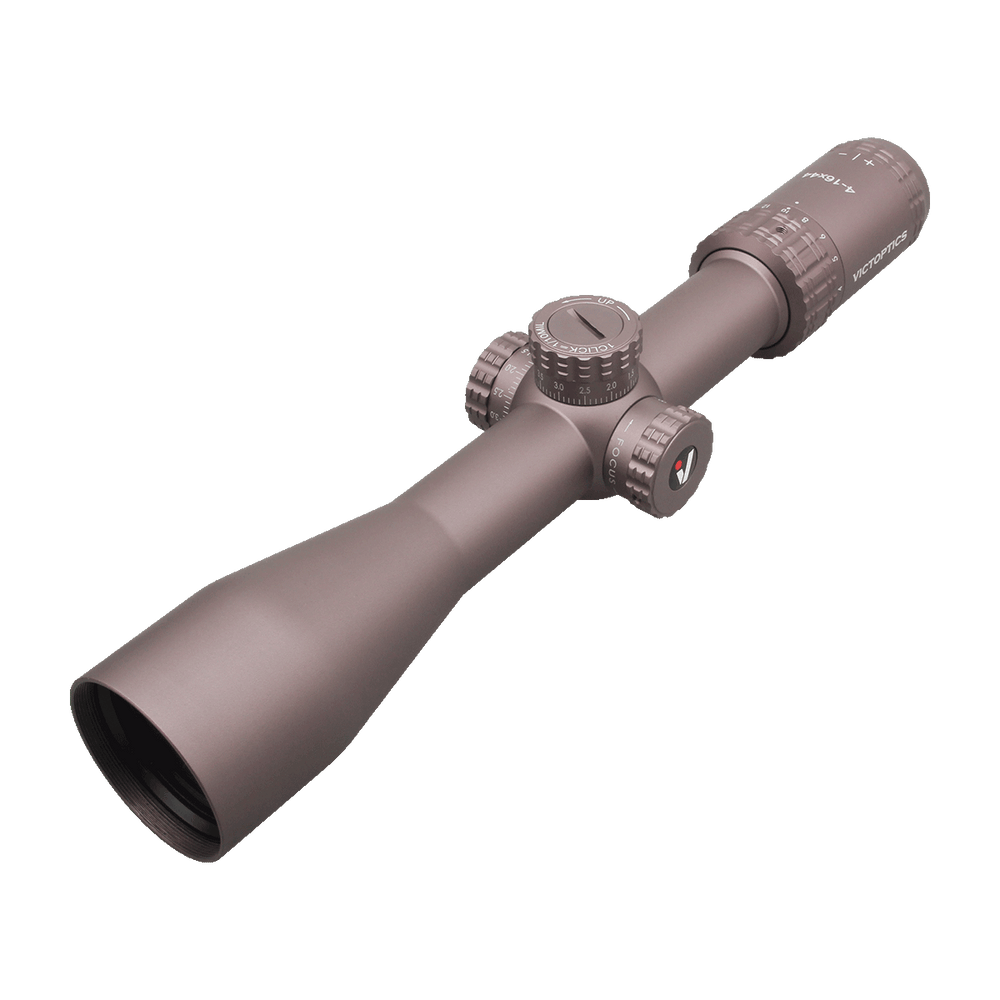

Feature
Super Slim Edge-to-Edge Image, Crystal Clear Optics, 1/10MIL Adjustment with Turret Lock Feature
WDL Reticle Used at 10x Power, Custom Designed Patent Reticle Exclusive for Air Guns & Firearms
Long Eye Relief, 30mm Monotube, FDE Finish, Side Focus Min at 15 Yds, Power Ring Lever Mount
Specification
·Magnification: 4-16x
·Objective Lens: 44mm
·Ocular Lens Dia: 35mm / 1.4in
·Ocular Length: 58mm / 2.3in
·Exit Pupil: 11.0-2.75mm
·Tube Diameter: 30mm
·Length: 317mm / 12.5in
·Weight (net): 500g / 17.6oz
·Eye Relief: 96mm / 3.8in
·Field of View (@100yds)" 28.8-7.2 feet
·Optics Coating: Fully-multi coated
·Reticle: MDL wire reticle
·Click Value: 1/10MIL
·Evaluation Range: 15MIL
·Windage Range: 15MIL
·Parallax Adjustment: 15 Yds to infinite
·Finish: Coyote FDE
·Illumination: N/A
·Exclusive for air gun and .22 LR rimfire etc benchrest shooting and hunting
·Side focus knob marked 15, 20, 25, 30, 50, 75, 100, 200, 400, 600 yards to infinite
·Shock tested to 750g, water resistant and fully nitrogen purged
·Turret lock system. Pull up to adjust, press down to lock
·High quality 6061 T6 aircraft grade aluminum
·Diopter compensation from fast-focus eyepiece -2 to +2
·Including items: 30mm weaver rings (default) or dovetail mount ring (on request only), power ring lever mount, big side wheel, sunshade, cleaning cloth, instruction, lens flip-up caps and packed in nice retail box
Reticle
