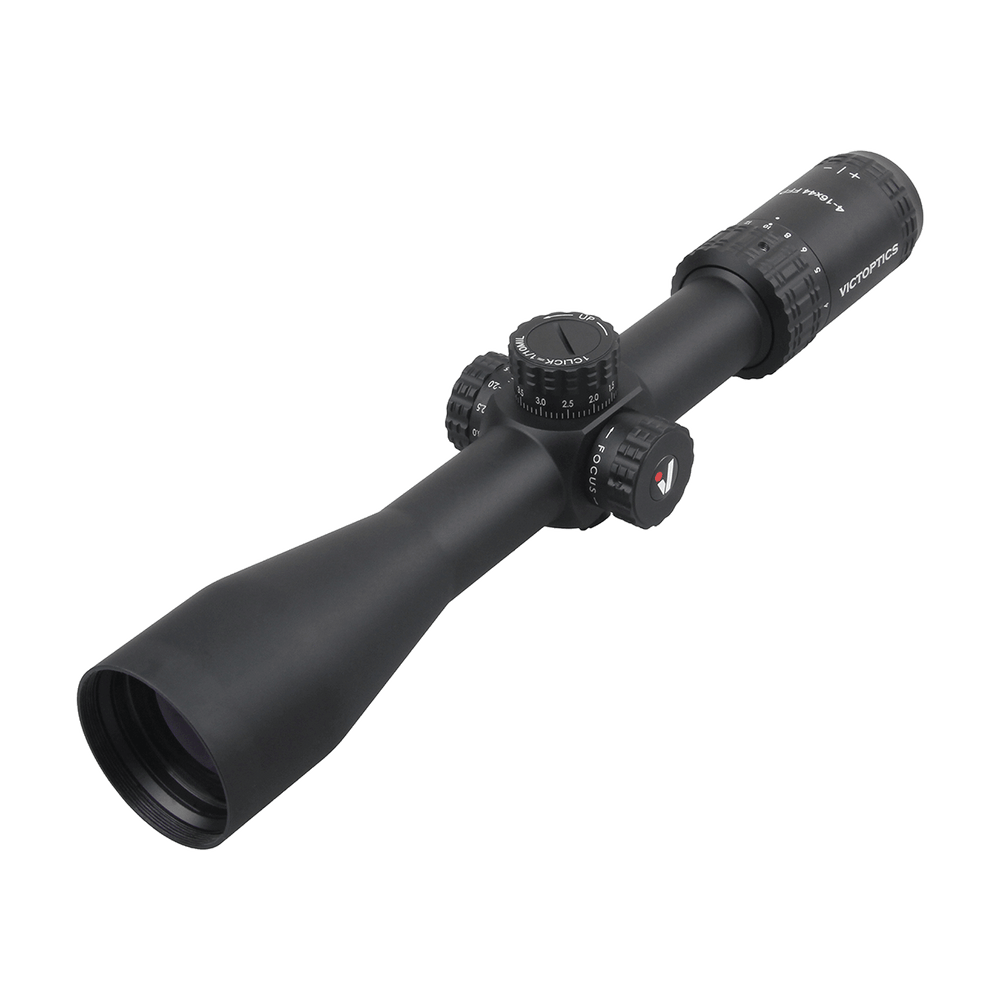

VictOptics S4 4-16x44 First Focal Plane

Feature

• First Focal Plane, Edge-to-Edge Image, 96mm 3.8" Long Eye Relief, Crystal Clear

• 1/10MIL Adjustment with Turret Lock Feature, VIS-FMIL Etched Glass Reticle

• 30mm Monotube, Wide Field of View, Side Focus Min at 15 Yds, Power Ring Lever

Specification

• Magnification: 4-16x

• Objective Lens: 44mm

• Ocular Lens Dia: 35mm / 1.4 inch

• Ocular Length: 58mm / 2.3 inch

• Exit Pupil: 11.0-2.75mm

• Tube Diameter: 30mm

• Length: 315mm / 12.4 inch

• Weight (net): 518g / 18.3oz

• Eye Relief: 96mm / 3.8 inch

• Field of View (@100yds): 28.8-7.2 feet

• Optics Coating: Fully-multi coated

• Reticle: VIS-FMIL etched glass reticle

• Click Value: 1/10MIL

• Evaluation Range: 15MIL

• Windage Range: 15MIL

• Parallax Adjustment: 15 Yds to infinite

• Finish: Black matte

• Illumination: N/A

• Exclusive for air gun and .22 LR rimfire etc benchrest shooting and hunting

• Side focus knob marked 15, 20, 25, 30, 50, 75, 100, 200, 400, 600 yards to infinite

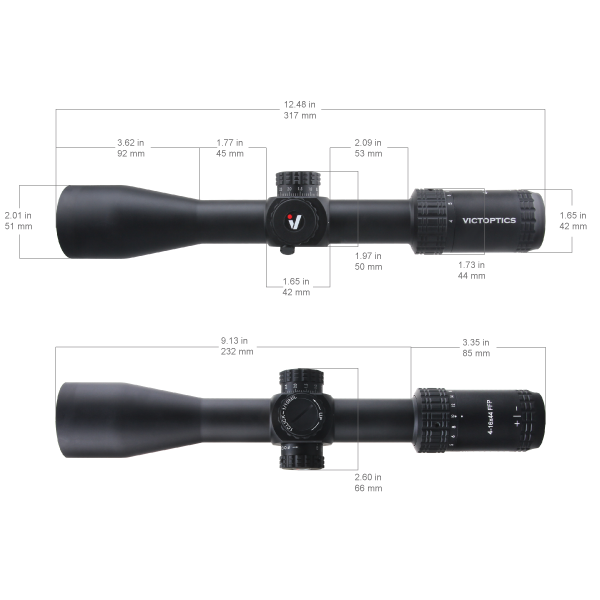

• Distance between objective lens part and middle turret: 45mm (1.8 inch)

• Length of middle turret part: 42mm (1.6 inch)

• Distance between middle turret parts to power ring: 52mm (2.0 inch)

• Shock tested to 750g, IPX4 water resistant and fully nitrogen purged

• Turret lock system. Pull to adjust, Depress to lock.

• High quality 6061 T6 aircraft grade aluminum

• Diopter compensation from fast-focus eyepiece -2 to +2

• Including items: 30mm weaver rings (default) or dovetail ring (on request only), power ring lever, 3 inch sunshade, big side wheel, cleaning cloth, instruction, lens flip-up caps
