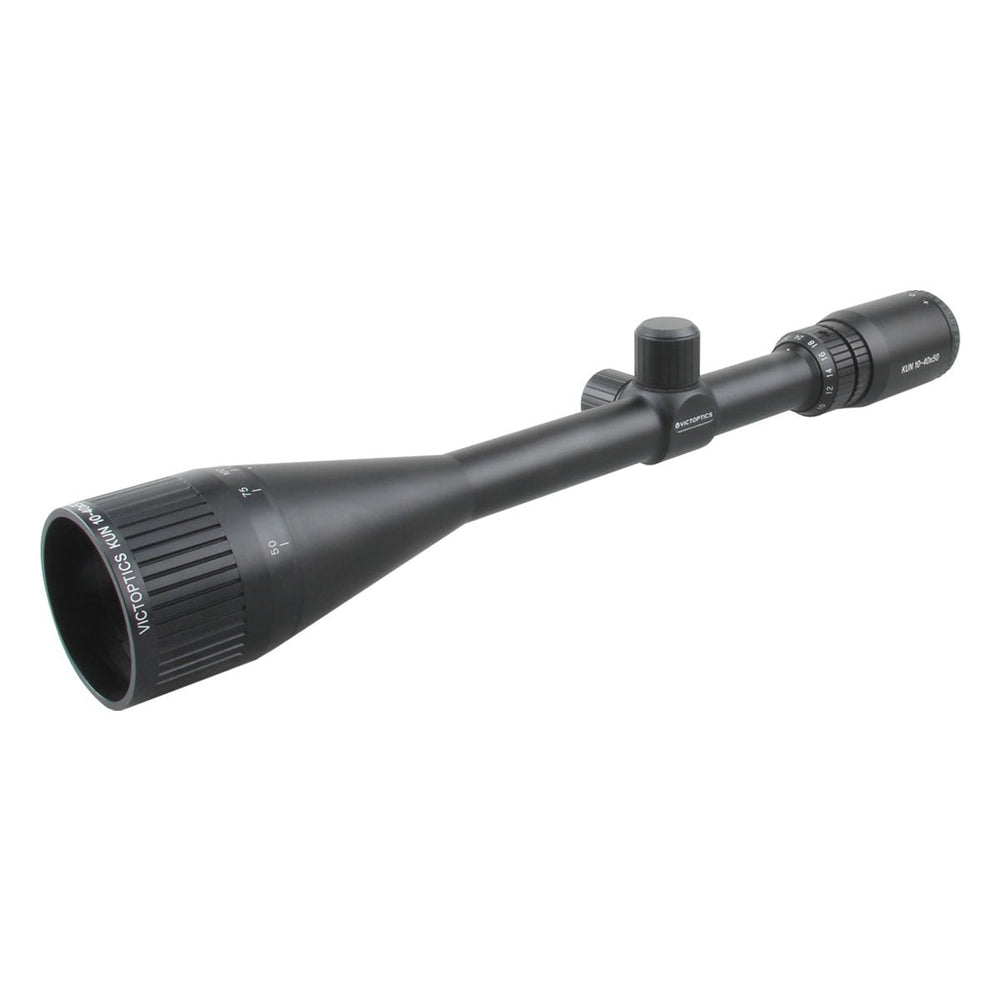

· 25.4mm 1" Monotube Made of 6063 T6, Second Focal Plane Scope, Fully Multi Coated.
· 1/8 MOA Capped Adjustment, 35MOA Range, Objective Lens Parallax Min from 25 Years.
· 3.6" 91mm Eye Relief, R14 Ranging Reticle, True 4x Zoom and Max 40x Magnification.
Magnification | 10-40x |
Objective Lens Dia | 50 mm |
Focal Plane | Second Focal Plane |
Eye Relief | 92 mm / 3.6 in |
Lens Coating | Fully-multi coated |
Linear Field of View @ 100 yd | 9.42-2.62 ft@ 100 yards |
Reticle | R14 Ranging |
Tube Dia | 25.4 mm |
Parallax Setting | 25 yards to Infinity |
Click Value | 1/8 MOA |
Elevation Adjustment Range | 35 MOA |
Windage Adjustment Range | 35 MOA |
Diopter Compensation | -2 to +2 |
Illumination Setting | N/A |
Battery Type(NOT INCLUDE) | N/A |
Waterproof | IPX4 |
Fogproof | Nitrogen Filled |
Shockproof | 750 G |
Housing Material | 6061-T6 Aluminum Alloy |
Finish | Matte Black |
Length | 420 mm / 16.5 in |
Weight (Net) | 610 g / 21.5 oz |
Items in the Package | One Pair Of 25.4mm Weaver Scope Rings, Cleaning Cloth, Lens Caps |
FEATURE
· 25.4mm 1" Monotube Made of 6063 T6, Second Focal Plane Scope, Fully Multi Coated.
· 1/8 MOA Capped Adjustment, 35MOA Range, Objective Lens Parallax Min from 25 Years.
· 3.6" 91mm Eye Relief, R14 Ranging Reticle, True 4x Zoom and Max 40x Magnification.
SPECIFICATION
Magnification | 10-40x |
Objective Lens Dia | 50 mm |
Focal Plane | Second Focal Plane |
Eye Relief | 92 mm / 3.6 in |
Lens Coating | Fully-multi coated |
Linear Field of View @ 100 yd | 9.42-2.62 ft@ 100 yards |
Reticle | R14 Ranging |
Tube Dia | 25.4 mm |
Parallax Setting | 25 yards to Infinity |
Click Value | 1/8 MOA |
Elevation Adjustment Range | 35 MOA |
Windage Adjustment Range | 35 MOA |
Diopter Compensation | -2 to +2 |
Illumination Setting | N/A |
Battery Type(NOT INCLUDE) | N/A |
Waterproof | IPX4 |
Fogproof | Nitrogen Filled |
Shockproof | 750 G |
Housing Material | 6061-T6 Aluminum Alloy |
Finish | Matte Black |
Length | 420 mm / 16.5 in |
Weight (Net) | 610 g / 21.5 oz |
Items in the Package | One Pair Of 25.4mm Weaver Scope Rings, Cleaning Cloth, Lens Caps |
