- SFP MPR-V7 MIL Etched Glass Reticle w/ 0.08MIL Illuminated Floating Dot, Dualscale Crosshair (DCR) for Mid-to-Long Range
- Upgraded LaREE HD Glass w/ Fully Multi-Coating Delivers Brighter, Sharper Imaging Compared with the Veyron Gen I
- 1/10 MIL Turrets Offer Precise Dialing w/ Crisp Clicks, 30mm Tube Provides ≥30 MIL Elevation Adjustment
- Compact 258mm / 10.2in & Lightweight 636g / 22.4oz Build Ideal for AR Platforms & PCP Compacts
- 6-Level Red Illumination for Low-Light Visibility, Elevation & Windage Turret Lock Prevents Unintentional Adjustment
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 28.8-7.5 ft @ 100 yards |
| Linear Field of View @ 100 m | 9.6-2.5 m @ 100 meters |
| Angular Field of View | 5.50-1.43° |
| Reticle | MPR-V7 |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | ≥30 MIL |
| Windage Adjustment Range | ≥25 MIL |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP56 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 258 mm / 10.2 in |
| Weight | 636 g / 22.4 oz |
| Items in the Package | Flip-Up Caps, Side Focus Wheel, Honeycomb Sunshade, Plastic Wrench, Cleaning Cloth, User Manual, etc. |
FEATURE
- SFP MPR-V7 MIL Etched Glass Reticle w/ 0.08MIL Illuminated Floating Dot, Dualscale Crosshair (DCR) for Mid-to-Long Range
- Upgraded LaREE HD Glass w/ Fully Multi-Coating Delivers Brighter, Sharper Imaging Compared with the Veyron Gen I
- 1/10 MIL Turrets Offer Precise Dialing w/ Crisp Clicks, 30mm Tube Provides ≥30 MIL Elevation Adjustment
- Compact 258mm / 10.2in & Lightweight 636g / 22.4oz Build Ideal for AR Platforms & PCP Compacts
- 6-Level Red Illumination for Low-Light Visibility, Elevation & Windage Turret Lock Prevents Unintentional Adjustment
SPECIFICATION
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 28.8-7.5 ft @ 100 yards |
| Linear Field of View @ 100 m | 9.6-2.5 m @ 100 meters |
| Angular Field of View | 5.50-1.43° |
| Reticle | MPR-V7 |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | ≥30 MIL |
| Windage Adjustment Range | ≥25 MIL |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP56 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 258 mm / 10.2 in |
| Weight | 636 g / 22.4 oz |
| Items in the Package | Flip-Up Caps, Side Focus Wheel, Honeycomb Sunshade, Plastic Wrench, Cleaning Cloth, User Manual, etc. |
SIZE

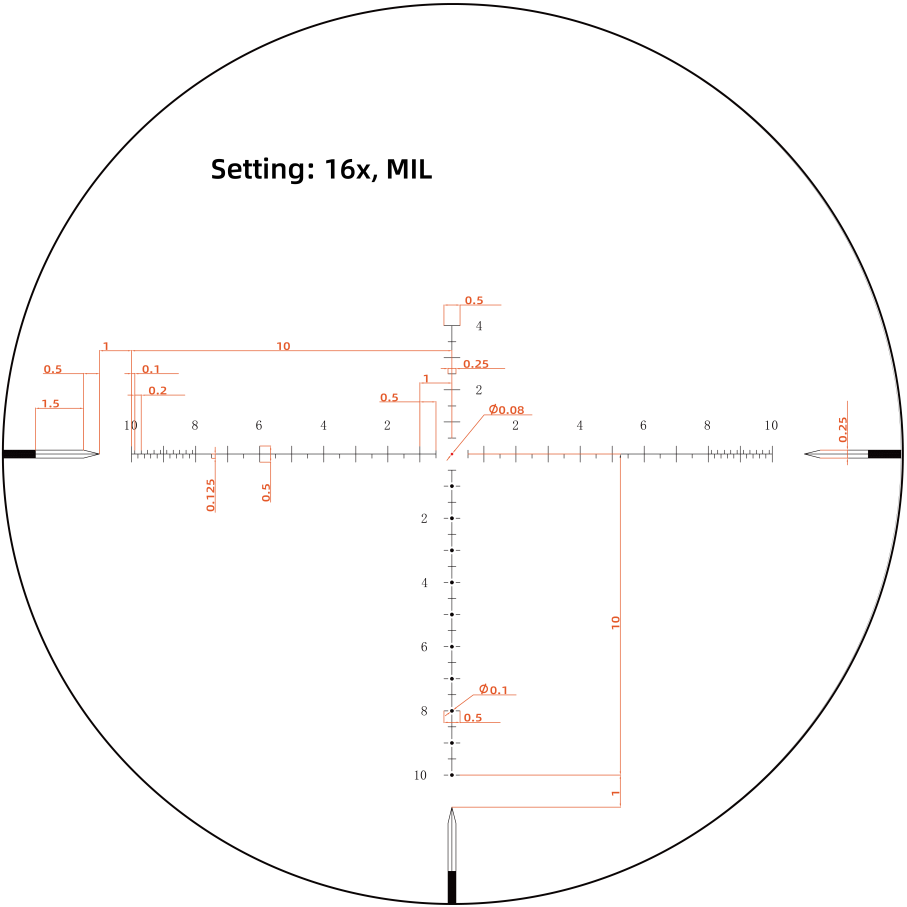

RETICLE
DOWNLOAD
