- FFP VVE-1 MIL Etched Glass Reticle w/ 0.08 MIL Illuminated Floating Dot, Christmas Tree Pattern for Fast Follow-Up Correction
- LaREE HD Glass and Fully Multi-Coated Lenses Enhance Light Transmission, Contrast, and Image Detail for a Bright Sight PictureV
- The Robust 34 mm Monotube Enables ≥50 MIL Adjustment Range, While Precise 1/10 MIL Clicks Support Accurate Corrections
- The 243 mm / 9.6 in Ultra-Short MPVO Design Saves Space and Improves Rifle Balance, Handling, and Portability
- Built Around Airgun, AR & Thermal Clip-On Setups, with 2-10× Magnification for Fast Observation and Mid-Range Shooting
| Magnification | 2-10x |
| Objective Lens Dia | 32 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 85-90 mm |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 61.5-12.3 ft @ 100 yards |
| Linear Field of View @ 100 m | 20.5-4.1 m @ 100 meters |
| Angular Field of View | 11.7-2.34° |
| Reticle | VVE-1 MIL |
| Tube Dia | 34 mm |
| Side Focus | 6 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | ≥50 MIL |
| Windage Adjustment Range | ≥30 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Waterproof | IP56 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 243 mm / 9.5 in |
| Weight | 607 g / 21.4 oz |
| Items in the Package | One Pair of 30mm Picatinny Scope Rings, Flip-up Caps, Honeycomb Sunshade, User Manual, Cleaning Cloth, etc. |
FEATURE
- FFP VVE-1 MIL Etched Glass Reticle w/ 0.08 MIL Illuminated Floating Dot, Christmas Tree Pattern for Fast Follow-Up Correction
- LaREE HD Glass and Fully Multi-Coated Lenses Enhance Light Transmission, Contrast, and Image Detail for a Bright Sight PictureV
- The Robust 34 mm Monotube Enables ≥50 MIL Adjustment Range, While Precise 1/10 MIL Clicks Support Accurate Corrections
- The 243 mm / 9.6 in Ultra-Short MPVO Design Saves Space and Improves Rifle Balance, Handling, and Portability
- Built Around Airgun, AR & Thermal Clip-On Setups, with 2-10× Magnification for Fast Observation and Mid-Range Shooting
SPECIFICATION
| Magnification | 2-10x |
| Objective Lens Dia | 32 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 85-90 mm |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 61.5-12.3 ft @ 100 yards |
| Linear Field of View @ 100 m | 20.5-4.1 m @ 100 meters |
| Angular Field of View | 11.7-2.34° |
| Reticle | VVE-1 MIL |
| Tube Dia | 34 mm |
| Side Focus | 6 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | ≥50 MIL |
| Windage Adjustment Range | ≥30 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Waterproof | IP56 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 243 mm / 9.5 in |
| Weight | 607 g / 21.4 oz |
| Items in the Package | One Pair of 30mm Picatinny Scope Rings, Flip-up Caps, Honeycomb Sunshade, User Manual, Cleaning Cloth, etc. |
SIZE

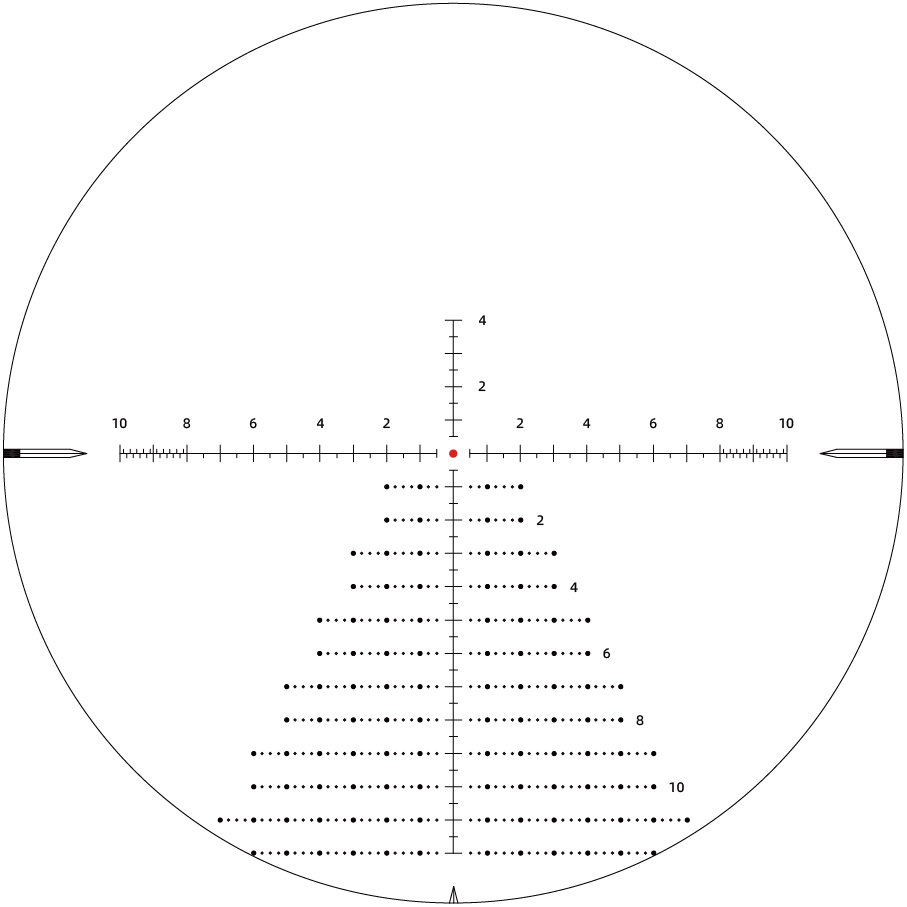

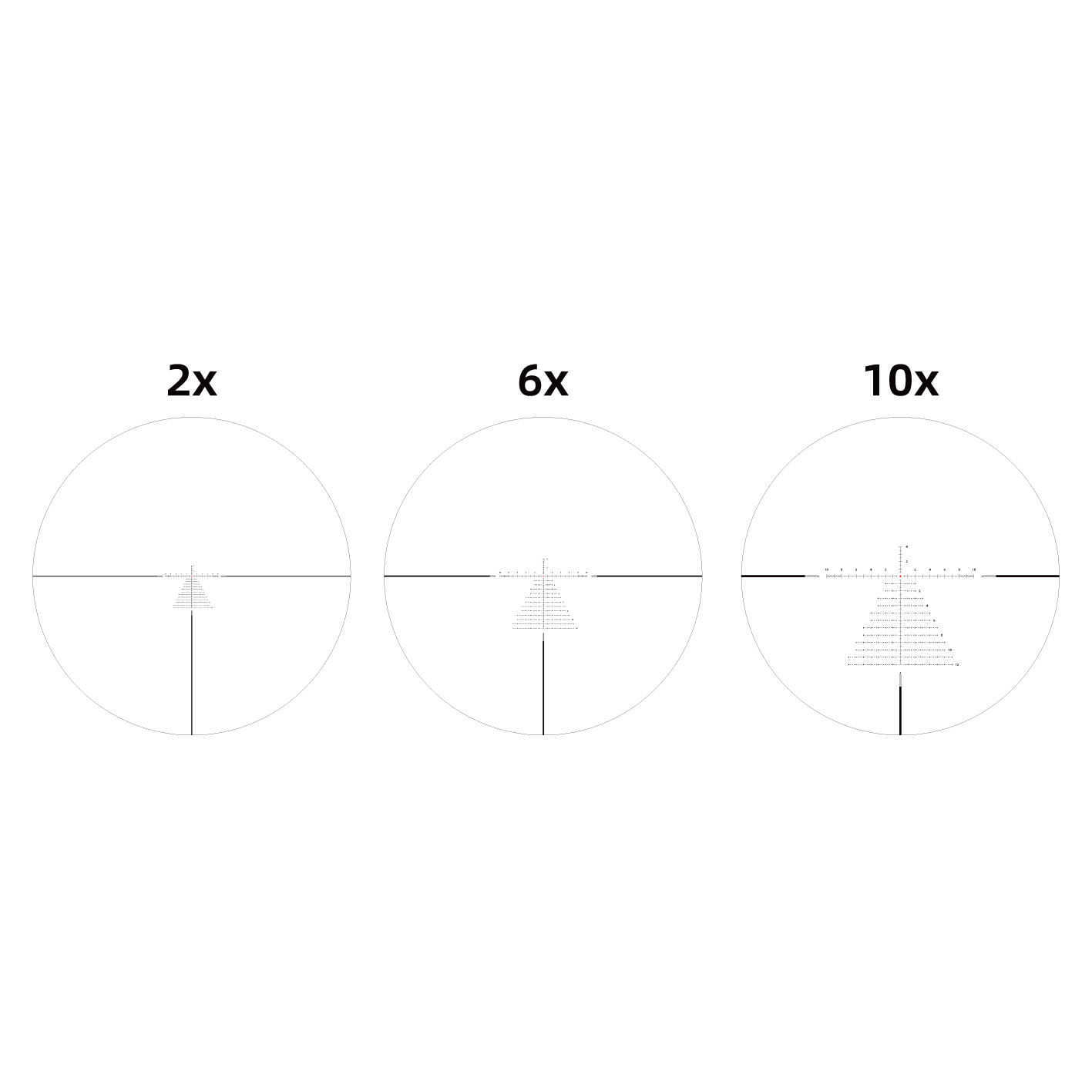

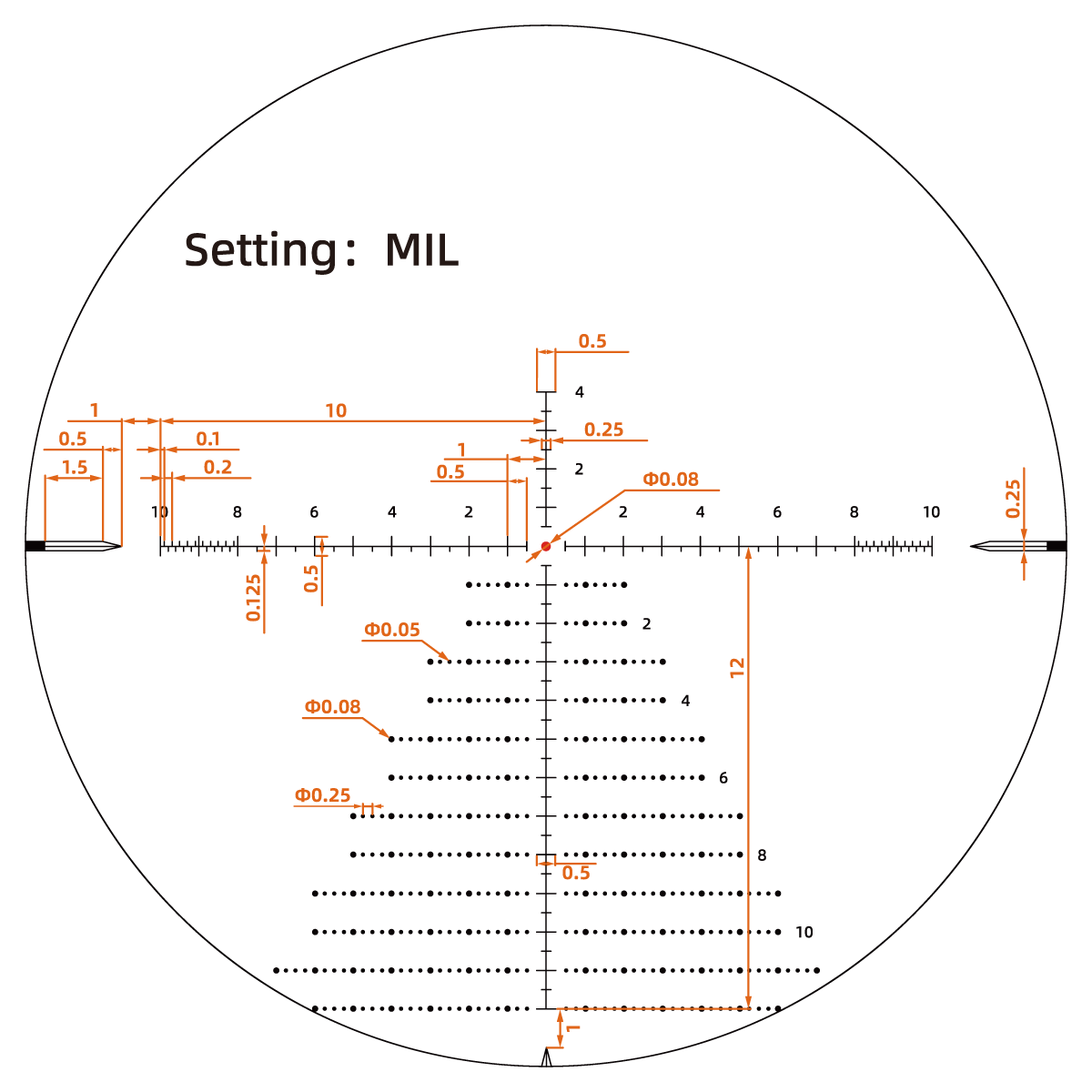

RETICLE
