PRODUCT FEATURES
True 4x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around Image
30mm Monotube Made of 6061 T6, VMD-2 Wire Reticle in MIL Specification
1/5 MIL Adjustment w/ Zero Reset & Turret Lock Features, w/ Power Ring Lever
FMC, Wide Field of View, 101mm 4.0in Long Eye Relief, Red & Green Illumination
SPECIFICATIONS
- Magnification: 1.5-6x
- Objective Lens Dia: 28mm
- Ocular Lens Dia: 36mm / 1.4in
- Ocular Lens Length: 59mm / 2.3in
- Exit Pupil: 10.7-4.0mm
- Optics Coating: FMC
- Field of View: 72.8-18.8 feet@ 100 yards
- Eye Relief: 101mm / 4.0in

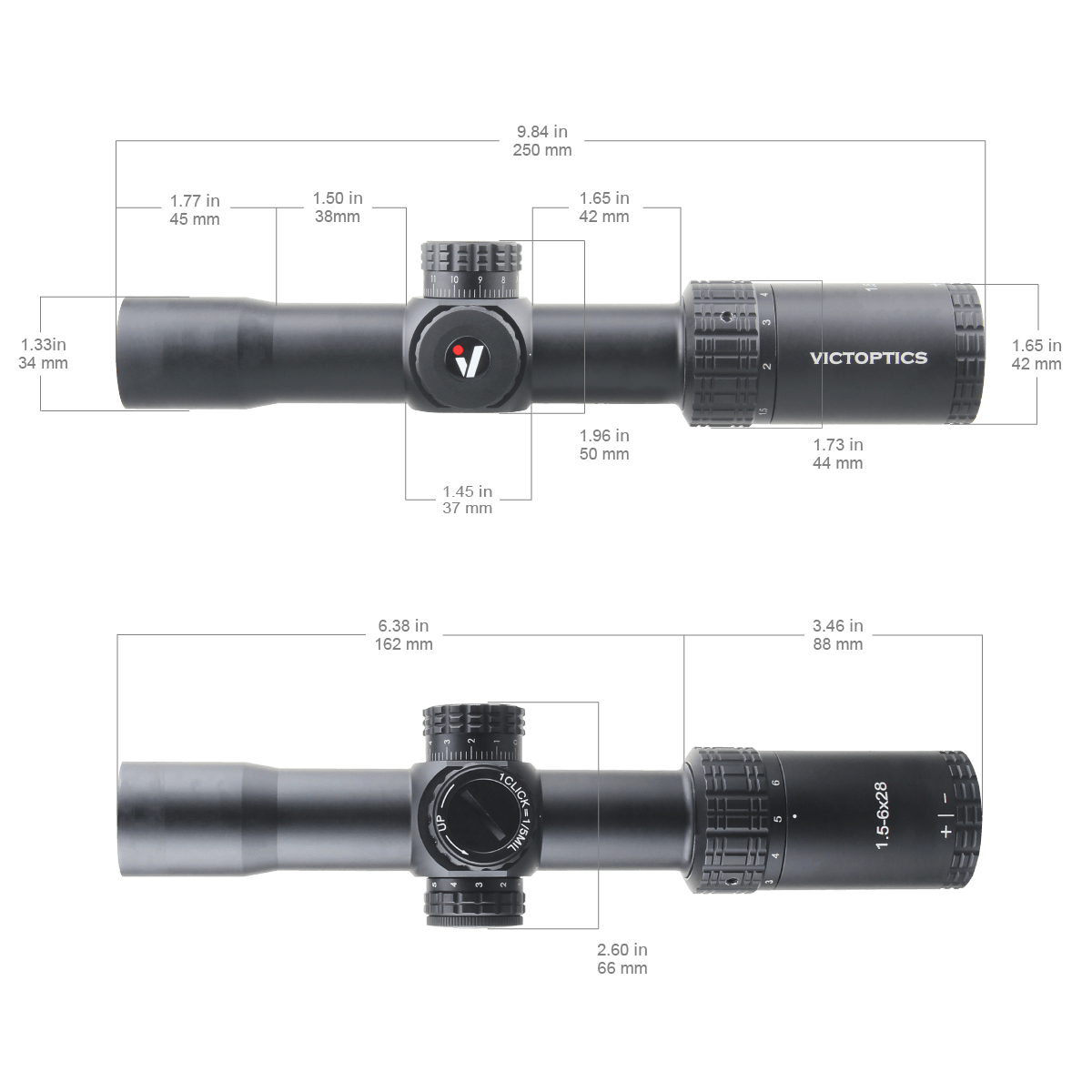

- Length: 250mm / 9.8 inch
- Weight: 395g / 13.9oz
- Tube Dia: 30mm
- Click Value: 1/5MIL
- Adjustment Range: >30MIL
- Parallax Setting: 100 yards

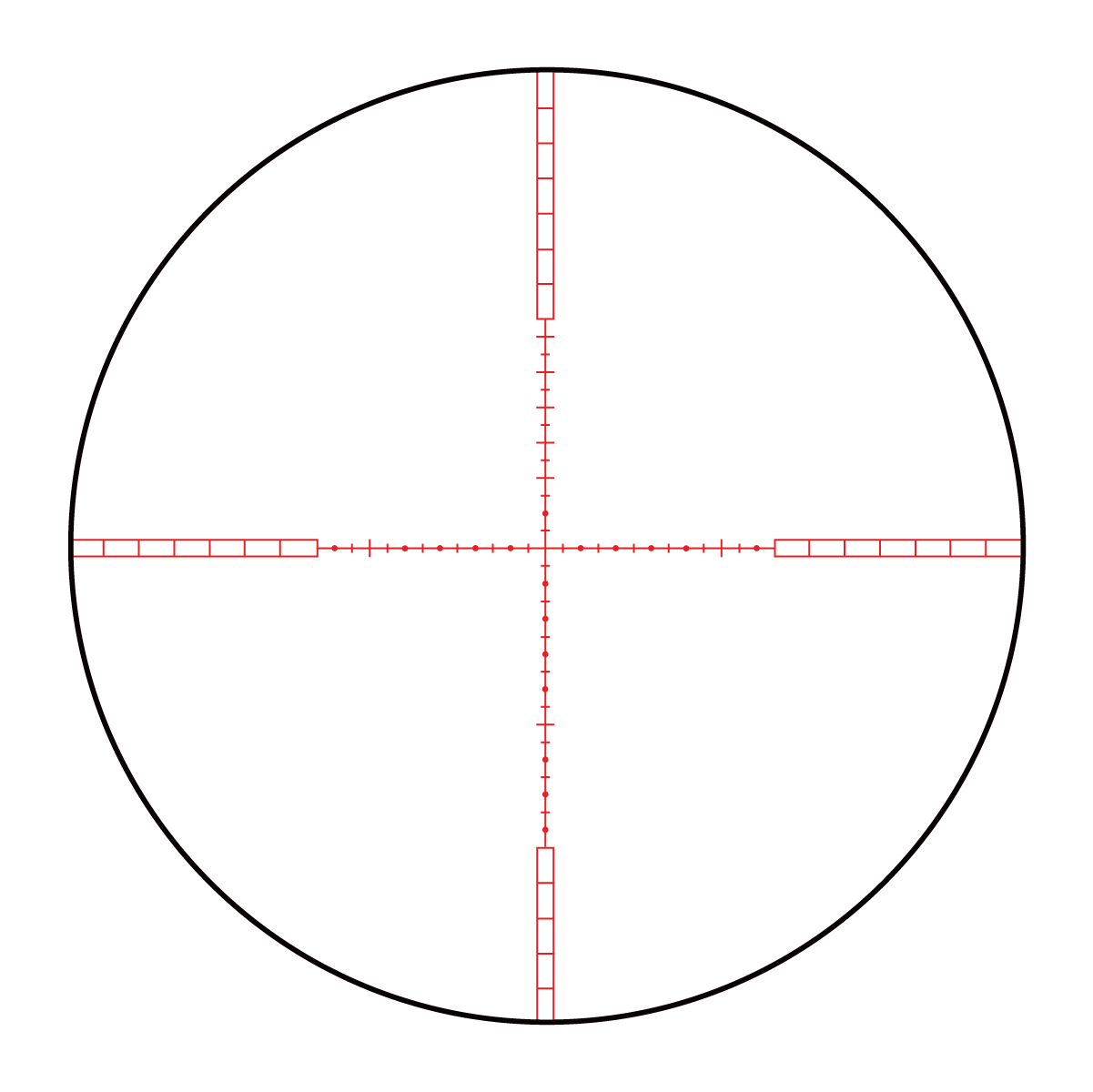

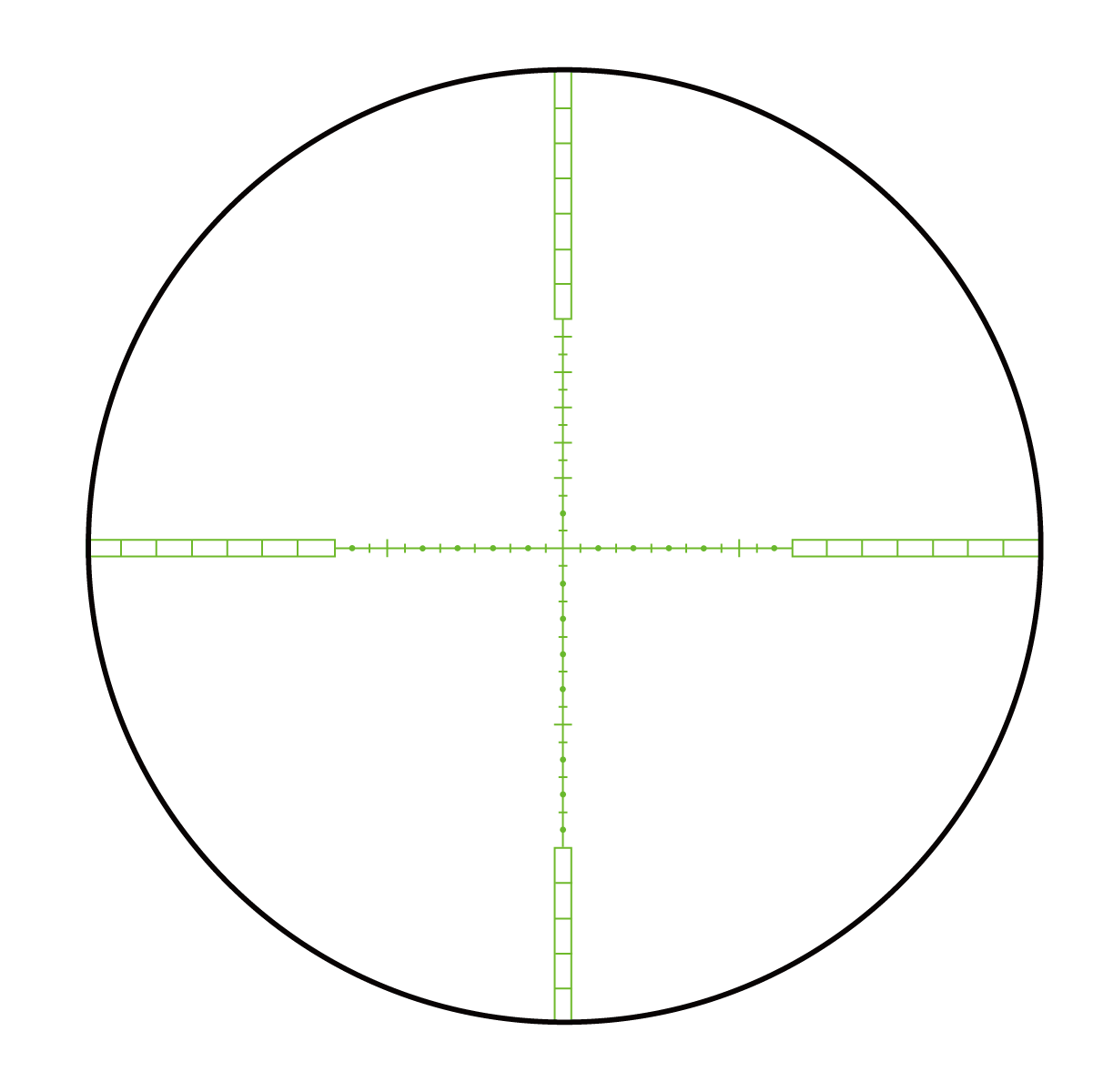

- Reticle: wire VMD-2 in mil specification
- Illumination: 5 levels red & green
- Battery Type: CR2032
- Finish: Black matte
- Shock tested to 750g, water resistant IPX4
- Fully nitrogen purged to eliminate any fogging of the lenses internally
- Turret lock and can be zero re-set
- High quality 6061 T6 aircraft grade aluminum
- Diopter compensation from fast-focus eyepiece (+2 to -2)
- Including items: one pair of 25.4mm weaver scope rings, power ring lever, flip-up caps and cleaning cloth etc
RETICLE
