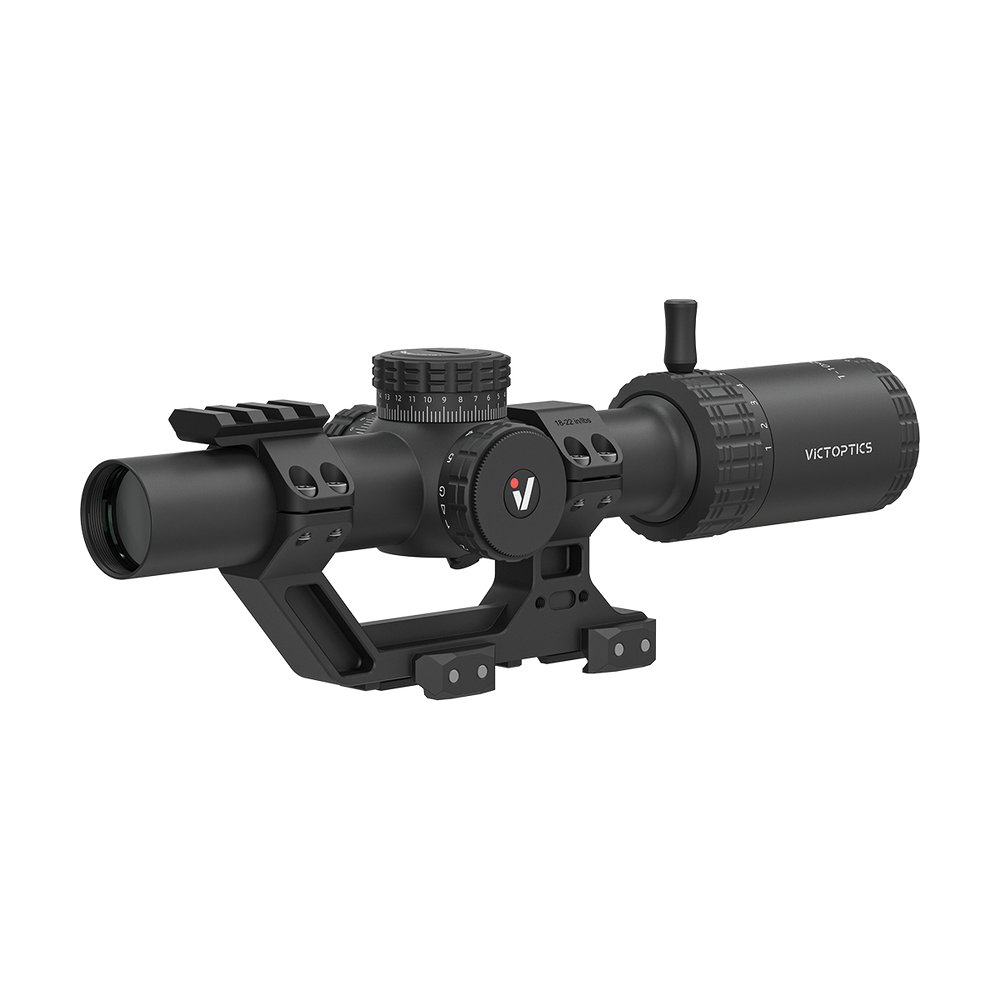

· A Kit Includes S10 1-10×24i LPVO SFP Scope & 1-Piece Picatinny Mount, w/ 1.93 in (49 mm) Center Height for AR Shooting Position
· Fiber Optic Reticle w/ Bright Center Dot for Clear Aiming in Bright Light, Ensuring Precise Targeting During Daytime Shooting
· Extensive Elevation Range of over 120 MOA w/ Precise 1/4 MOA Click Value, Supports Flexible Zeroing Across Different Setups
· Fully Multi-Coated Lens Delivers Bright, Crisp Imaging with Consistent Edge-to-Edge Clarity Across the Entire Field of View
· Comes with an Extra Interchangeable Ring Cap, Offering More Options for DIY Customization and a Personalized Mounting Style
| Optical Parameter | |
| Magnification | 1-10x |
| Objective Lens Dia | 24 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 101 mm / 4.0 in |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 111-11.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 37-3.7 m @ 100 meters |
| Angular Field of View | 21.2-2.1 ° |
| Reticle | VS10-2 MOA |
| Mechanical Parameter | |
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |
| Click Value | 1/4 MOA |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | >120 MOA |
| Windage Adjustment Range | >120 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination | 5 Gears Red and Green Illumination, On/off Switch |
| Battery Type | CR2032 |
| Waterproof | IPX5 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 274.0 mm / 10.79 in |
| Weight (Net) | 597 g / 21.1 oz |
| Items in the Package (Complete Kit) | honeycomb sunshade, extra Picatinny-style ring caps, hex key, plastic wrench, power throw lever, flip-up caps, cleaning cloth, etc. |
| Picatinny AR Mount Parameter | |
| Ring Dia | 30 mm |
| Height | 72 mm / 2.83 in |
| Center Height | 49 mm / 1.93 in (Bottom to Center) |
| Length | 140 mm / 5.51 in |
| Material | 6061-T6 Aluminum Alloy |
| Weight | 161 g / 5.68 oz |
| Mount | Picatinny |
| Finish | Matte Black |
