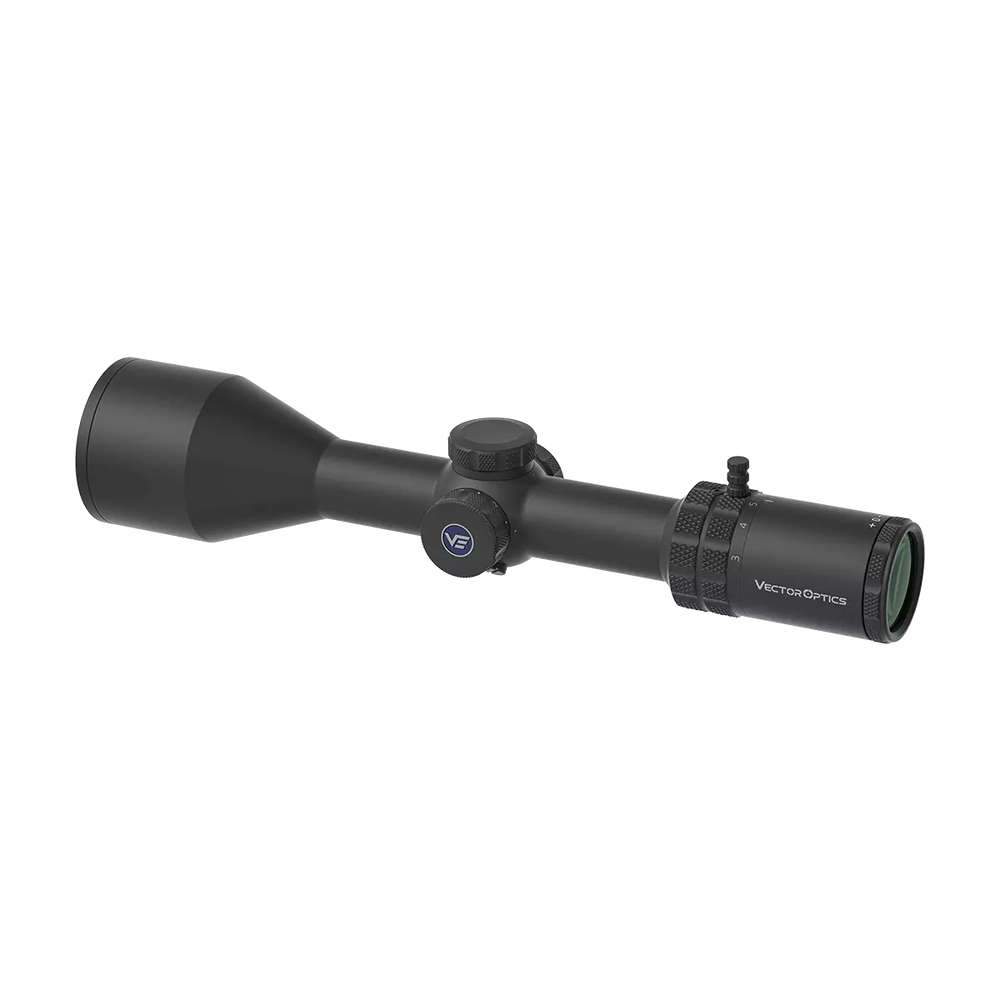

- Fiber Center Dot with 6-Level Red Illumination Ensures Clear Visibility in Bright Daylight for Hunting
- 56mm Objective with Fully Multi-Coated Lens Delivers Bright, Clear Images in Low-Light Conditions
- Precise 1/10 MIL Clicks with 35 MIL Elevation Range Ensure Accurate Zeroing and Reliable Holdovers4-Inch / 100mm Eye Relief Supports Flexible Shooting Positions and Improved Situational Awareness

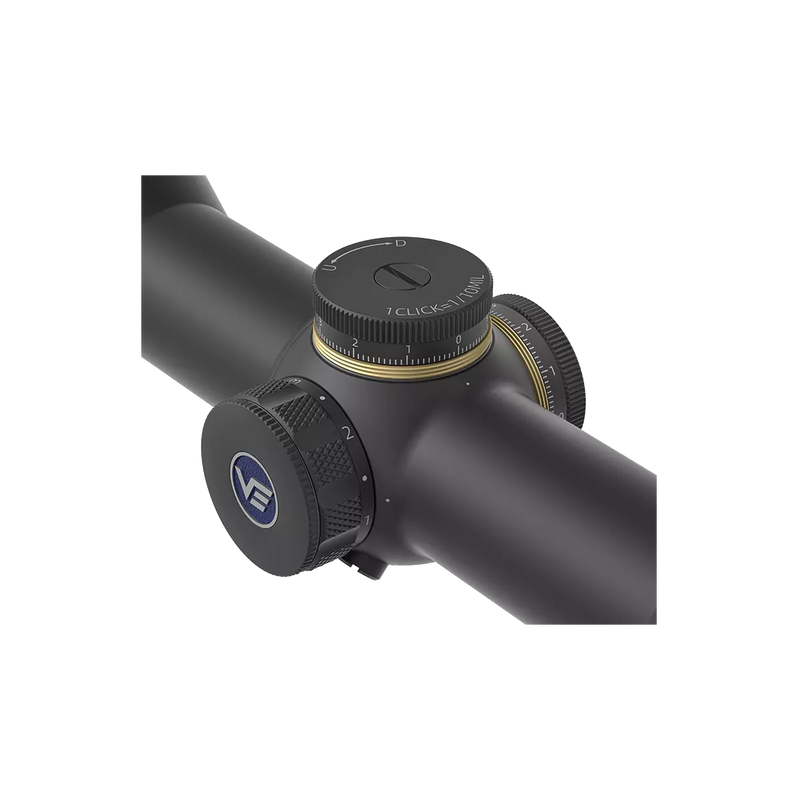

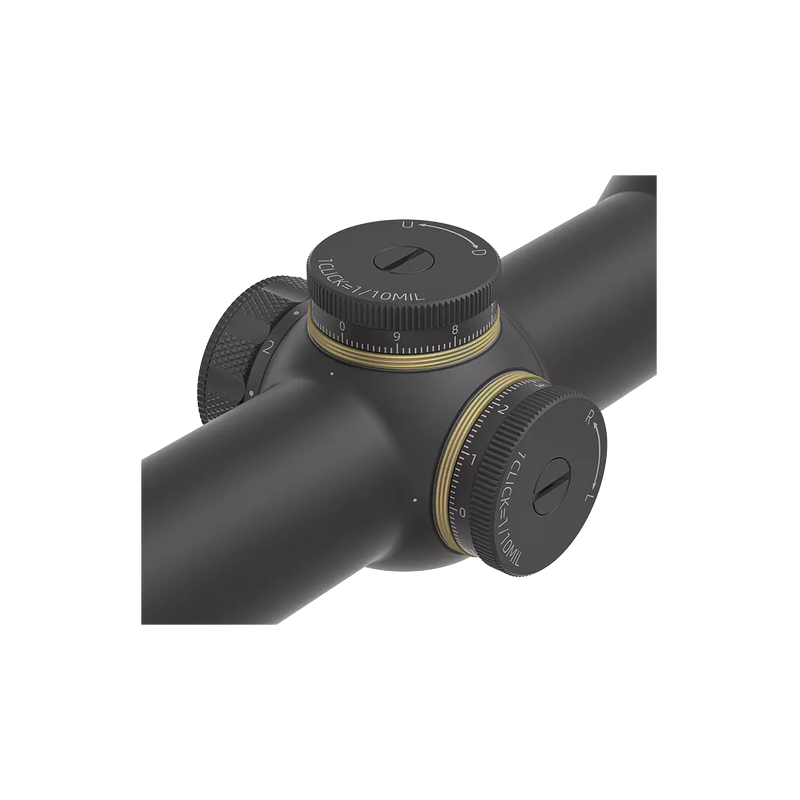

- Capped Turret Design Prevents Accidental Adjustments for More Reliable Hunting Performance
| Magnification | 3-12x |
| Objective Lens Dia | 56 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm / 4 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 34.2-9.15 ft @100 yards |
| Linear Field of View @ 100 m | 11.4-3.05 m @100 meters |
| Angular Field of View ° | 6.53-1.75° |
| Reticle | G4 Fiber |
| Parallax Setting | 100 m |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | ≥35 MIL |
| Windage Adjustment Range | ≥35 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears Red, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP65 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6063-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 315 mm / 12.4 in |
| Weight | 709 g / 25 oz |

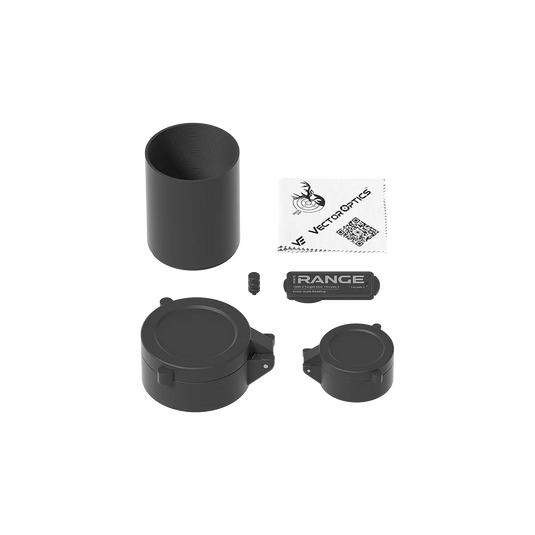

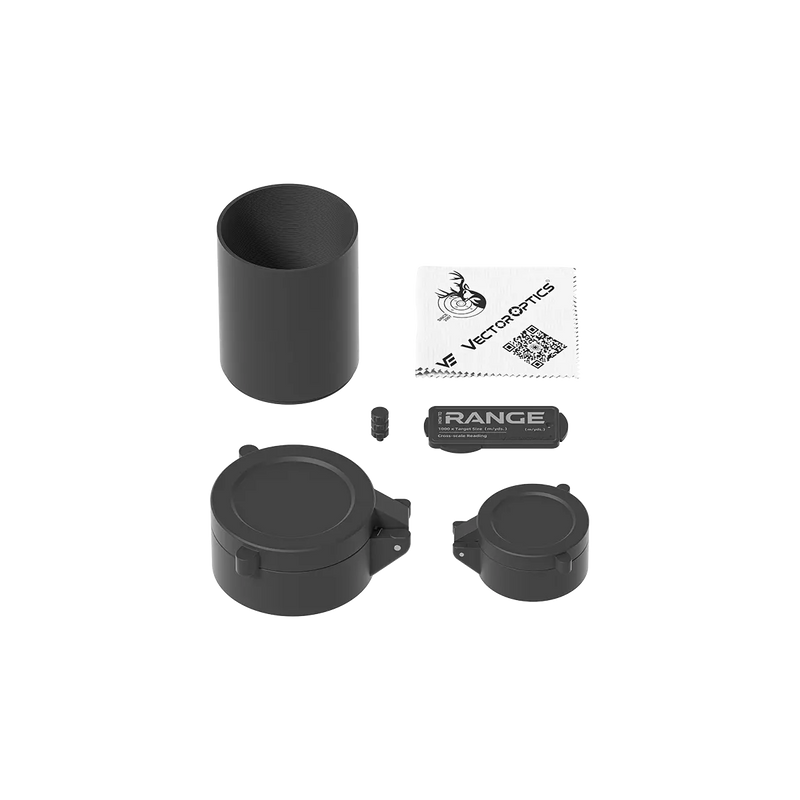

| Items in the Package | One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Cleaning Cloth, etc. |
FEATURE
- Fiber Center Dot with 6-Level Red Illumination Ensures Clear Visibility in Bright Daylight for Hunting
- 56mm Objective with Fully Multi-Coated Lens Delivers Bright, Clear Images in Low-Light Conditions
- Precise 1/10 MIL Clicks with 35 MIL Elevation Range Ensure Accurate Zeroing and Reliable Holdovers4-Inch / 100mm Eye Relief Supports Flexible Shooting Positions and Improved Situational Awareness
- Capped Turret Design Prevents Accidental Adjustments for More Reliable Hunting Performance
SPECIFICATION
| Magnification | 3-12x |
| Objective Lens Dia | 56 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm / 4 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 34.2-9.15 ft @100 yards |
| Linear Field of View @ 100 m | 11.4-3.05 m @100 meters |
| Angular Field of View ° | 6.53-1.75° |
| Reticle | G4 Fiber |
| Parallax Setting | 100 m |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | ≥35 MIL |
| Windage Adjustment Range | ≥35 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears Red, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP65 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6063-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 315 mm / 12.4 in |
| Weight | 709 g / 25 oz |
| Items in the Package | One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Cleaning Cloth, etc. |
SIZE
RETICLE
DOWNLOAD
