- German #4 SFP Fiber Reticle Enables Fast Target Acquisition, Highly Visible Even in Strong Sunlight
- LaREE HD Glass Enhances Light Transmission, Delivering Bright, Sharp Images with Excellent Clarity
- 30mm Main Tube with 1/10 MIL Click Adjustments Provides Precise Tracking and Repeatable Performance

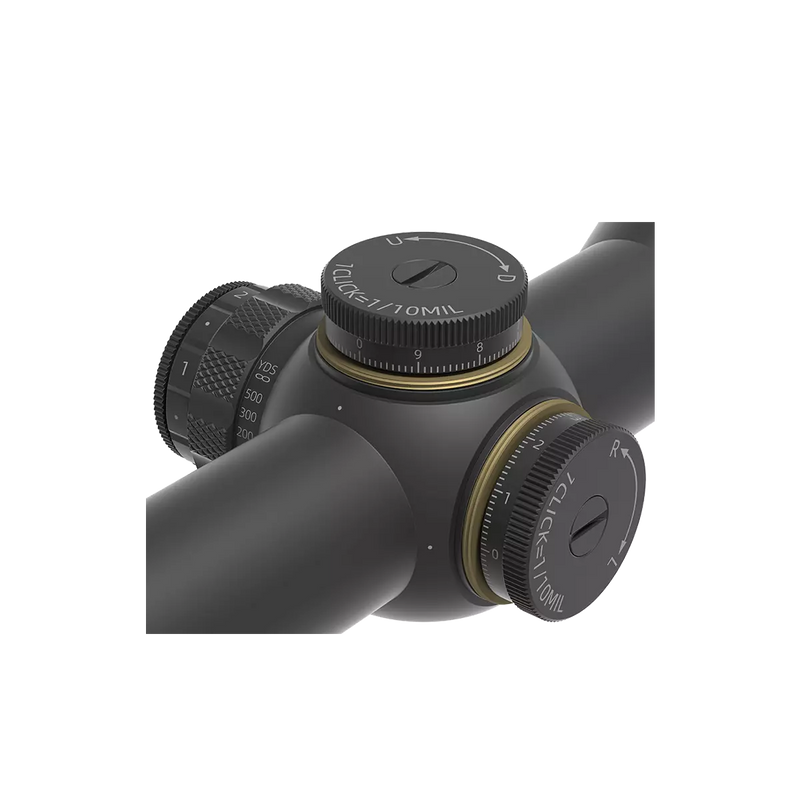

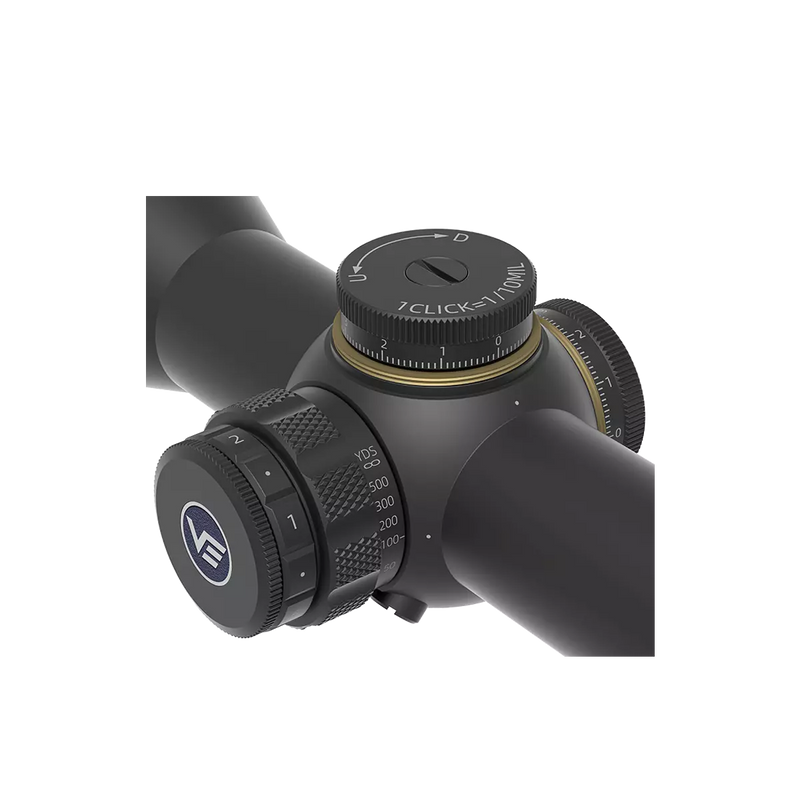

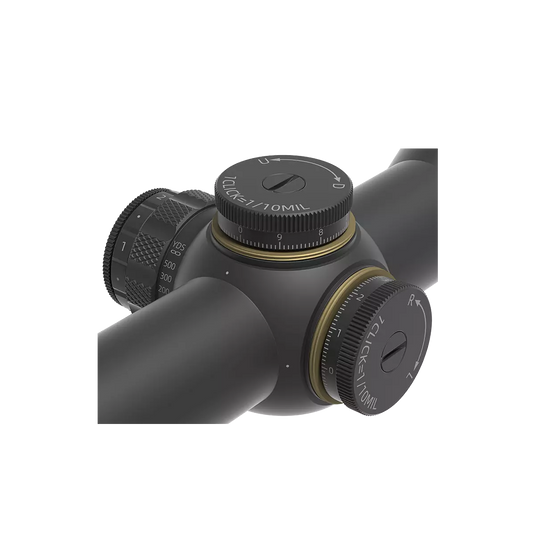

- Capped Turrets Prevent Accidental Adjustments, While Long Eye Relief Enhances Situational Awareness
| Magnification | 1.7-10x |
| Objective Lens Dia | 40 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 68.4 - 11.4 ft @ 100 yards |
| Linear Field of View @ 100 m | 22.8 - 3.8 m @ 100 meters |
| Angular Field of View | 13.0° - 2.2° |
| Reticle | G4 Fiber |
| Side Focus | 10 yards to infinity |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | ≥ 48 MIL |
| Windage Adjustment Range | ≥ 48 MIL |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 6 Gear, Red, On / Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP56 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 276 mm / 10.87 in |
| Weight | 655 g / 23.1 oz |

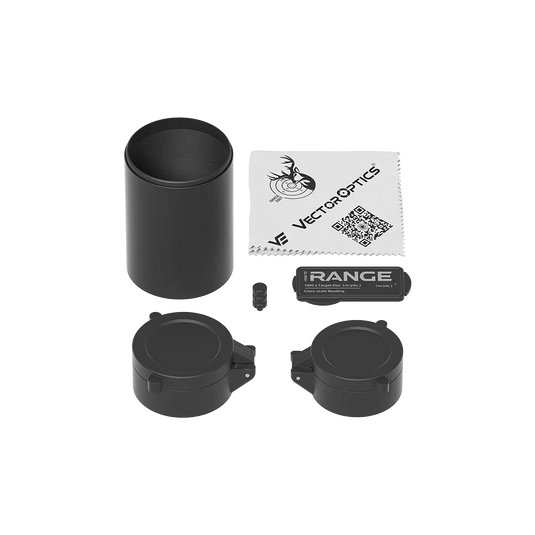

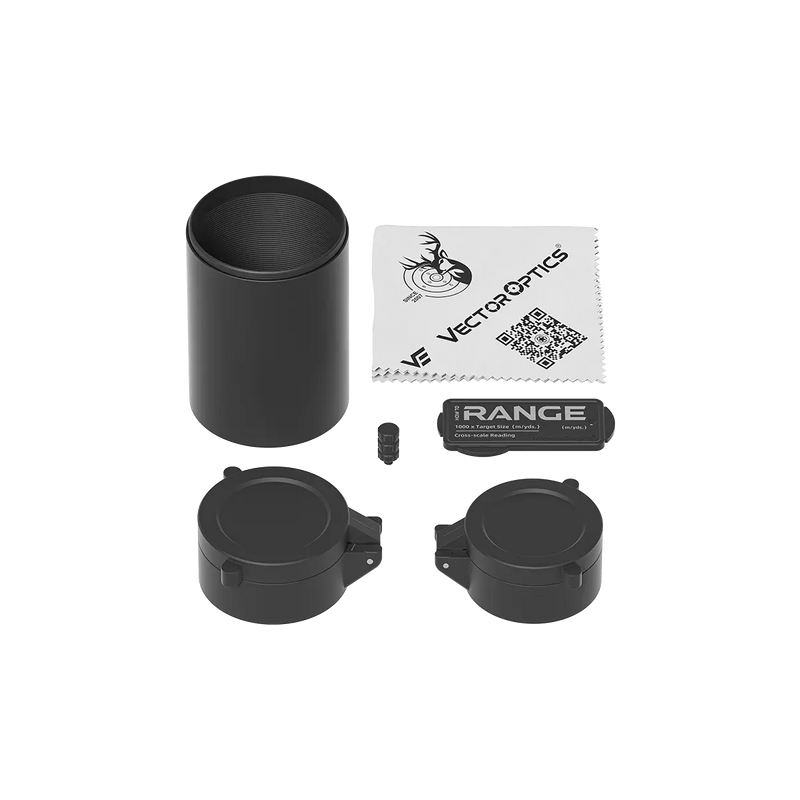

| Items in the Package | Plastic Wrench, Sunshade, Cleaning Cloth, Flip-Up Caps, etc. |
FEATURE
- German #4 SFP Fiber Reticle Enables Fast Target Acquisition, Highly Visible Even in Strong Sunlight
- LaREE HD Glass Enhances Light Transmission, Delivering Bright, Sharp Images with Excellent Clarity
- 30mm Main Tube with 1/10 MIL Click Adjustments Provides Precise Tracking and Repeatable Performance
- Capped Turrets Prevent Accidental Adjustments, While Long Eye Relief Enhances Situational Awareness
SPECIFICATION
| Magnification | 1.7-10x |
| Objective Lens Dia | 40 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 68.4 - 11.4 ft @ 100 yards |
| Linear Field of View @ 100 m | 22.8 - 3.8 m @ 100 meters |
| Angular Field of View | 13.0° - 2.2° |
| Reticle | G4 Fiber |
| Side Focus | 10 yards to infinity |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | ≥ 48 MIL |
| Windage Adjustment Range | ≥ 48 MIL |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 6 Gear, Red, On / Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP56 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 276 mm / 10.87 in |
| Weight | 655 g / 23.1 oz |
| Items in the Package | Plastic Wrench, Sunshade, Cleaning Cloth, Flip-Up Caps, etc. |
SIZE
RETICLE
