· Edgeless Image
· Return to Zero Adjustment Plate
· 4" Long Eye Relief
· 1/4' Adjustment
· Super Bright Clear
· Designed for 30 to 400 Yards Shooting
· 30mm Monotube
· FD7 Style Etched Glass Reticle
| Magnification | 3-15x |
| Objective Lens Dia | 50 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 95-85 mm |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 36.2-7.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 12.1-2.4 m @100 meters |
| Reticle | VFD-2 Etched Glass |
| Parallax Setting | 100 yards |
| Tube Dia | 30 mm |
| Click Value | 1/4 MOA |
| Turret Function | N/A |
| Elevation Adjustment Range | 60 MOA |
| Windage Adjustment Range | 60 MOA |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 11 Gears |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Filled Nitrogen |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Black Matte |
| Length | 384 mm / 15.1 in |
| Weight | 575 g / 20.3 oz |

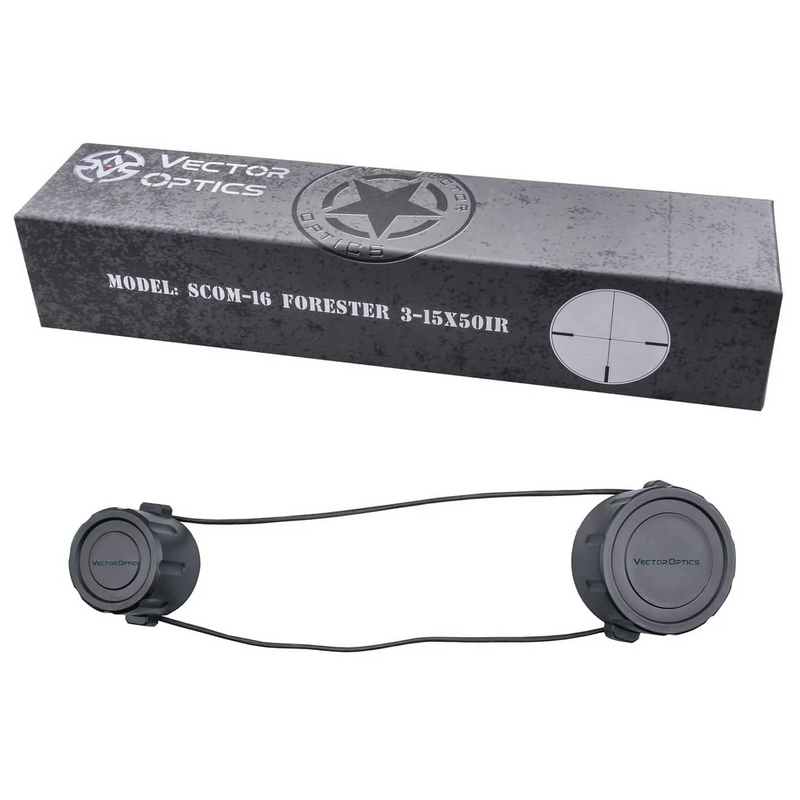

| Items in the Package | One Pair of 30 mm Weaver Scope Rings, Sunshade, Lens Caps, Cleaning Cloth, etc. |
FEATURE
· Edgeless Image
· Return to Zero Adjustment Plate
· 4" Long Eye Relief
· 1/4' Adjustment
· Super Bright Clear
· Designed for 30 to 400 Yards Shooting
· 30mm Monotube
· FD7 Style Etched Glass Reticle
SPECIFICATION
| Magnification | 3-15x |
| Objective Lens Dia | 50 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 95-85 mm |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 36.2-7.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 12.1-2.4 m @100 meters |
| Reticle | VFD-2 Etched Glass |
| Parallax Setting | 100 yards |
| Tube Dia | 30 mm |
| Click Value | 1/4 MOA |
| Turret Function | N/A |
| Elevation Adjustment Range | 60 MOA |
| Windage Adjustment Range | 60 MOA |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 11 Gears |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Filled Nitrogen |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Black Matte |
| Length | 384 mm / 15.1 in |
| Weight | 575 g / 20.3 oz |
| Items in the Package | One Pair of 30 mm Weaver Scope Rings, Sunshade, Lens Caps, Cleaning Cloth, etc. |

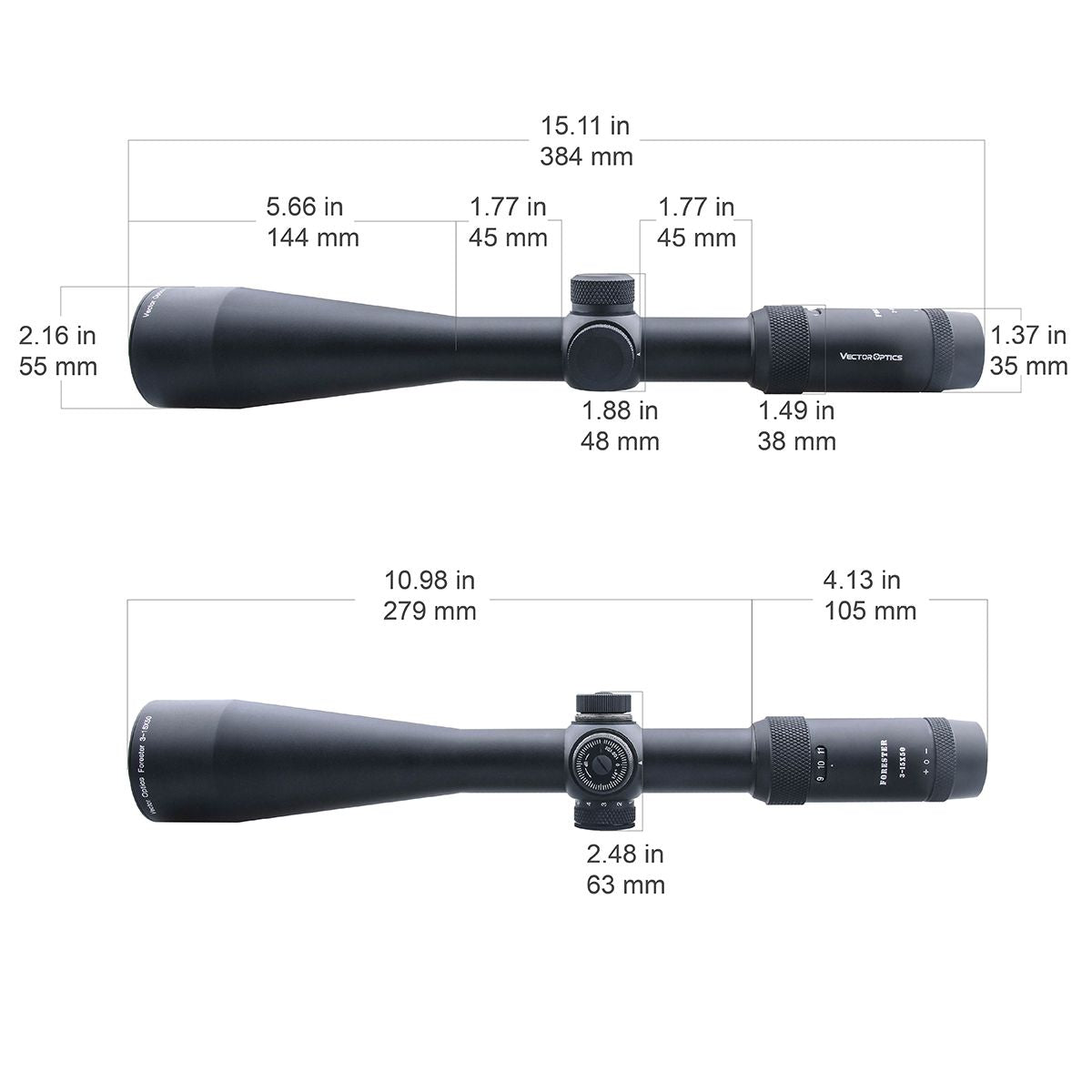

SIZE

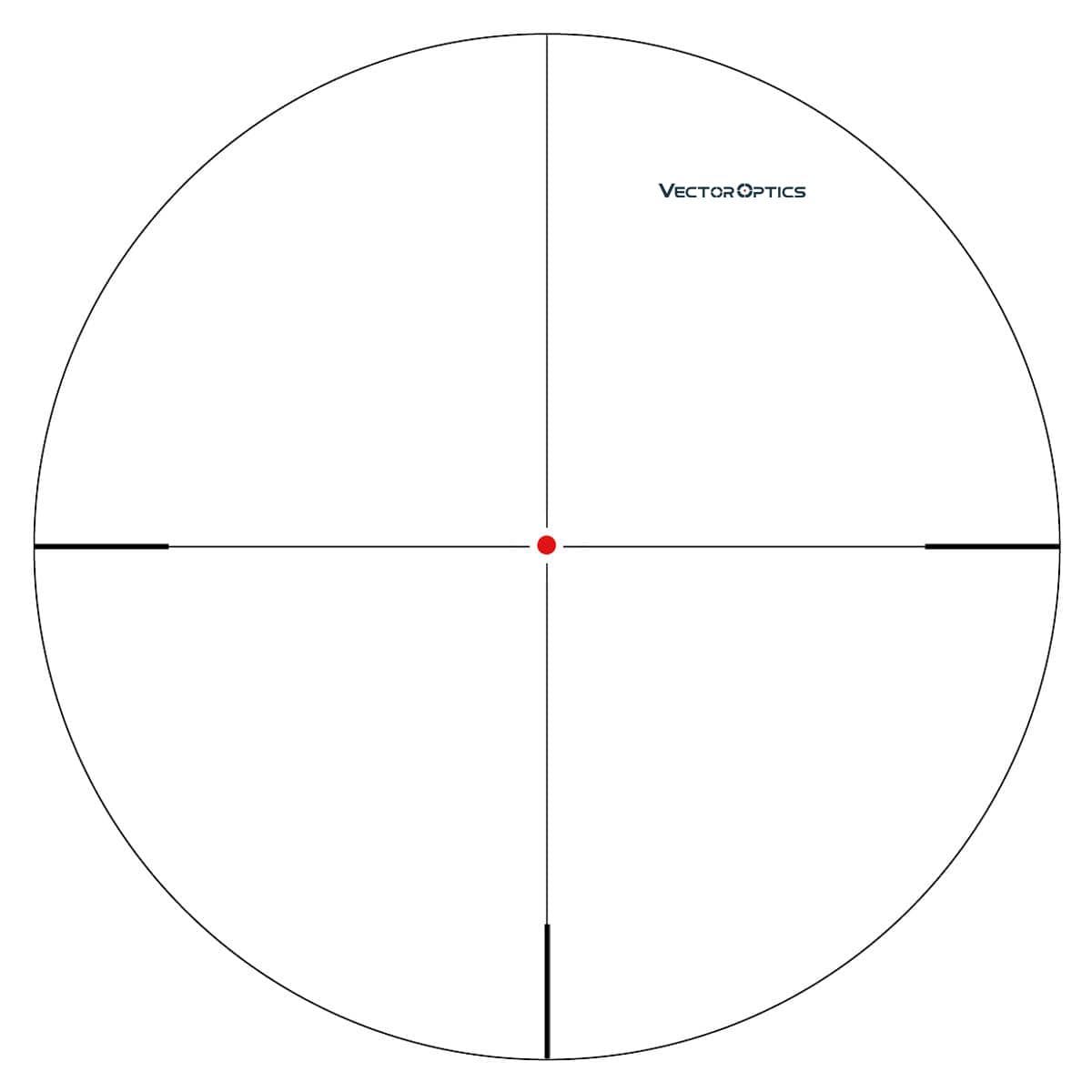

RETICLE
