Feature
Vector Optics Top Line Product That Can Compete Worldwide Famous Brand Optics
German Optical System with Crystal Clear Image, 30mm Monotube, True 6x Zoom Factor
Return-to-Zero Turret, Light Transmission Reaches to 90%, Focus Min 15 Yards to Infinite
Etched Glass Hunting BDC Reticle, Capped 1/4 MOA Adjust, HD Glass Reinforcement
Illuminated, With Spare Blank Exposed Elevation Turret for DIY Application, with Sunshade
Specification
· Magnification: 5-30x
· Objective Lens Dia.: 56mm
· Ocular Lens Dia.: 42mm (1.7in)
· Ocular Lens Length: 54mm (2.1in)
· Exit Pupil: 9.5-1.9mm
· Optics Coating: Fully-multi coat diamond clear
· Field of View: 24.9-4.2 Feet @ 100 yards
· Field of View: 8.3-1.4M @ 100 meters
· Eye Relief: 100mm (4.0in)

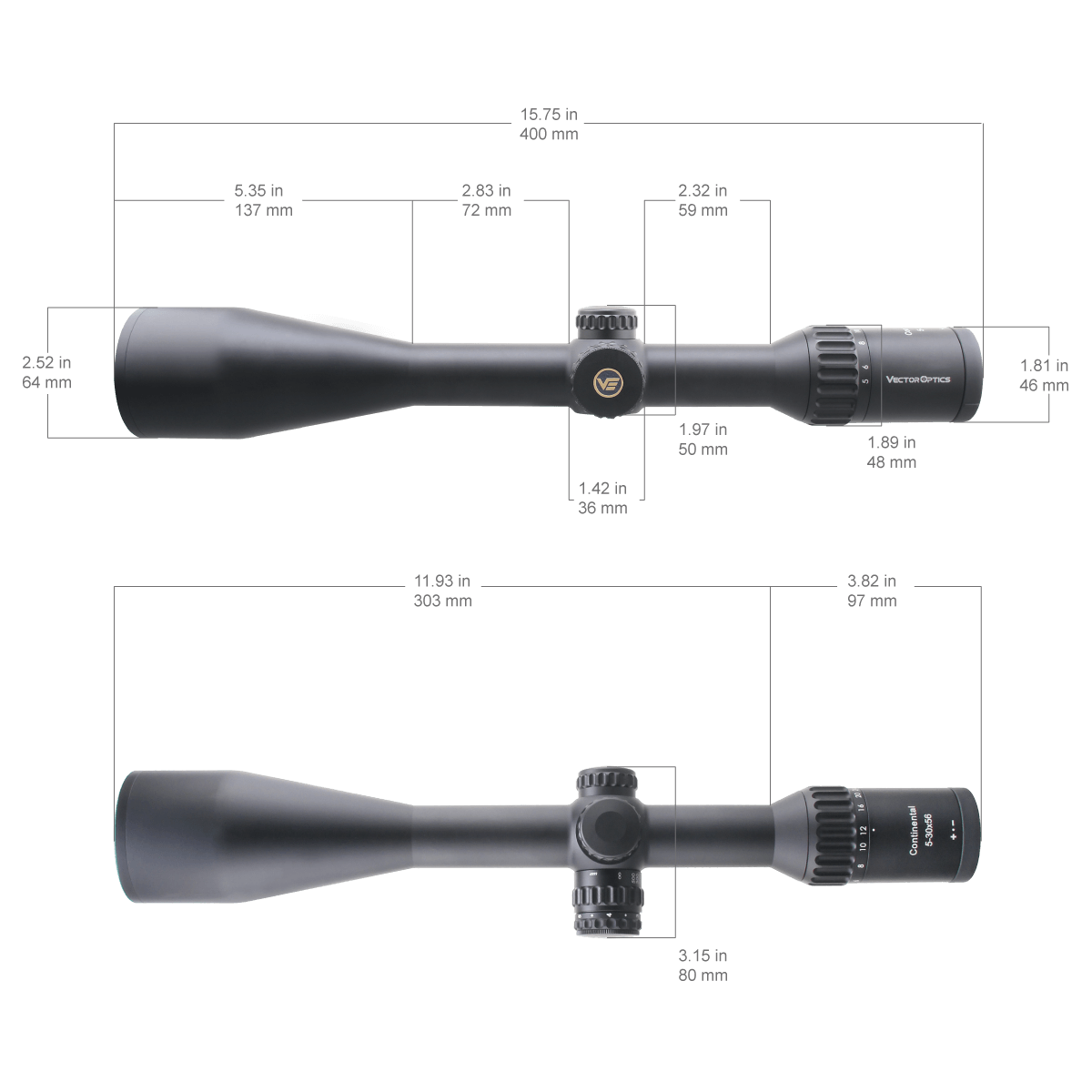

· Length: 400mm (15.7in)
· Weight: 630g (22.2oz)
· Tube Dia.:30mm Monotube
· Click Value: 1/4 MOA
· Elevation Range: 60MOA
· Windage Range: 60MOA
· Parallax Setting: 100 yards
· Side Focus:15 Yds to infinite
· Reticle: Etched glass VECON-CDM
· Illumination: Six gear
· Battery Type: CR2032
· Shock tested to 750g, IP67 water proof at 1m for 30 min
· Fully nitrogen purged to eliminate any fogging of the lenses internally
· Light transmission max reaches to 90%
· Adjusting plate is NOT fixed, after zero the scope pull up the turret and re-set it to zero
· High quality 6061 T6 aircraft grade aluminum
· Focus mark: 15, 20, 30, 50, 75, 100, 200, 300, 500 and infinite
· Diopter compensation from fast-focus eyepiece (+2 to -3)
· With spare blank exposed elevation turret for custom DIY application
· Including accessories: 30mm picatinny scope rings, sunshade, lens caps and cleaning cloth etc.

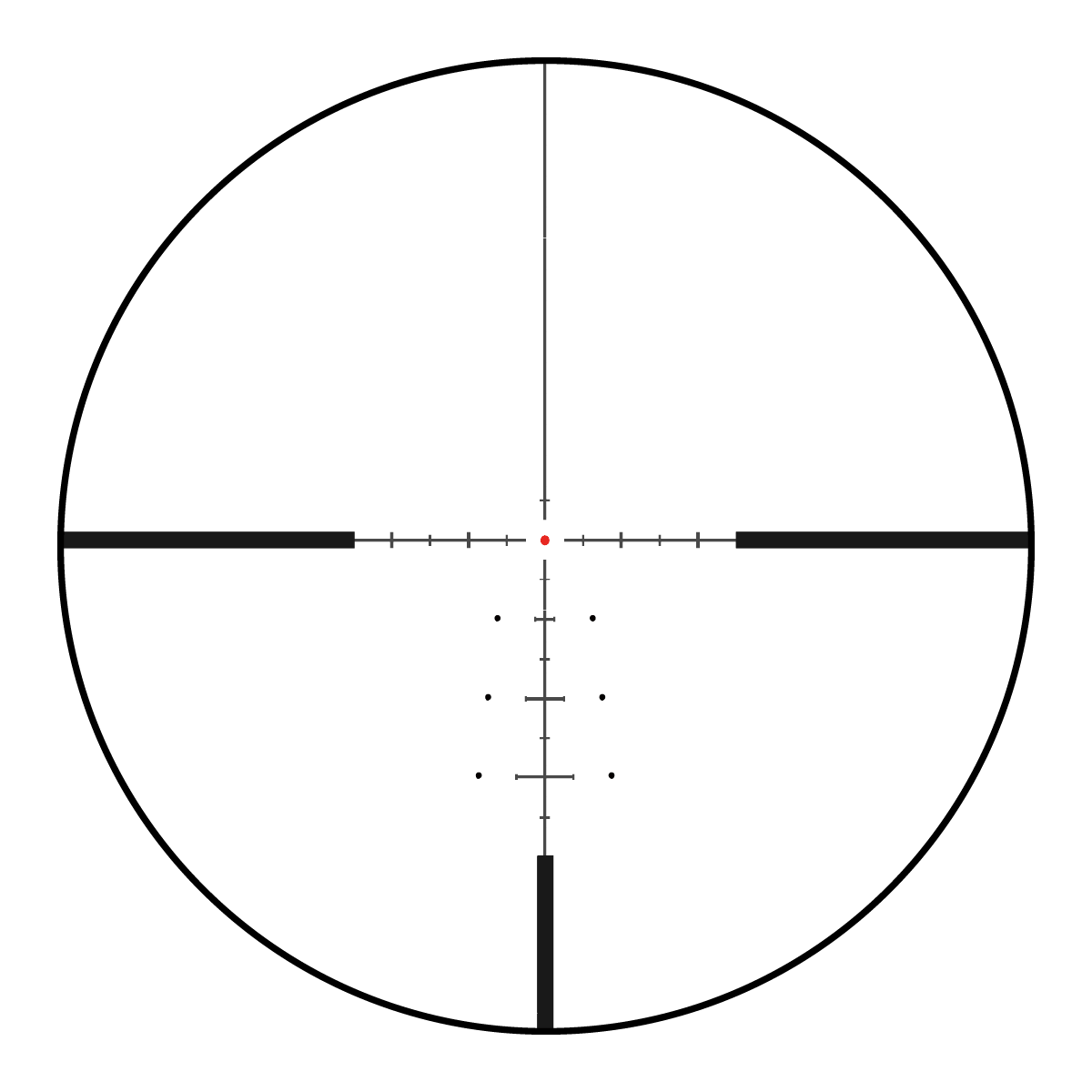

Reticle
