FEATURE
· Generous field of view with 84.9-25.5 ft @ 100 yards for fast-paced situation
· 5-Gear Green and Red Illuminated Reticle (not just center dot), suitable for various light condition
· Durable and Lightweight Construction, for long time use in tough condition
· 4 inch / 100 mm Long Eye Relief Maintains Proper Shooting Stance without Worrying Scope Bite
SPECIFICATION
| Magnification | 1.5-5x |
| Objective Lens Dia | 20 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 100 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 74.4-22.8 ft @ 100 yards |
| Linear Field of View @ 100 m | 24.8-7.6 m @ 100 meters |
| Angular Field of View | 14.21-4.35 ° |
| Reticle | VNM-1 MIL |
| Tube Dia | 25.4 mm / 1 in |
| Parallax Setting | 50 yards |
| Click Value | 1/5 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | >18 MIL |
| Windage Adjustment Range | >18 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 5 Gears, Red and Green |
| Battery Type (NOT INCLUDE) | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 220 mm / 7.9 in |
| Weight (Net) | 225 g / 7.9 oz |
| Items in the Package | Lens Caps and Cleaning Cloth, Power Throw Lever, Sunshade etc. |

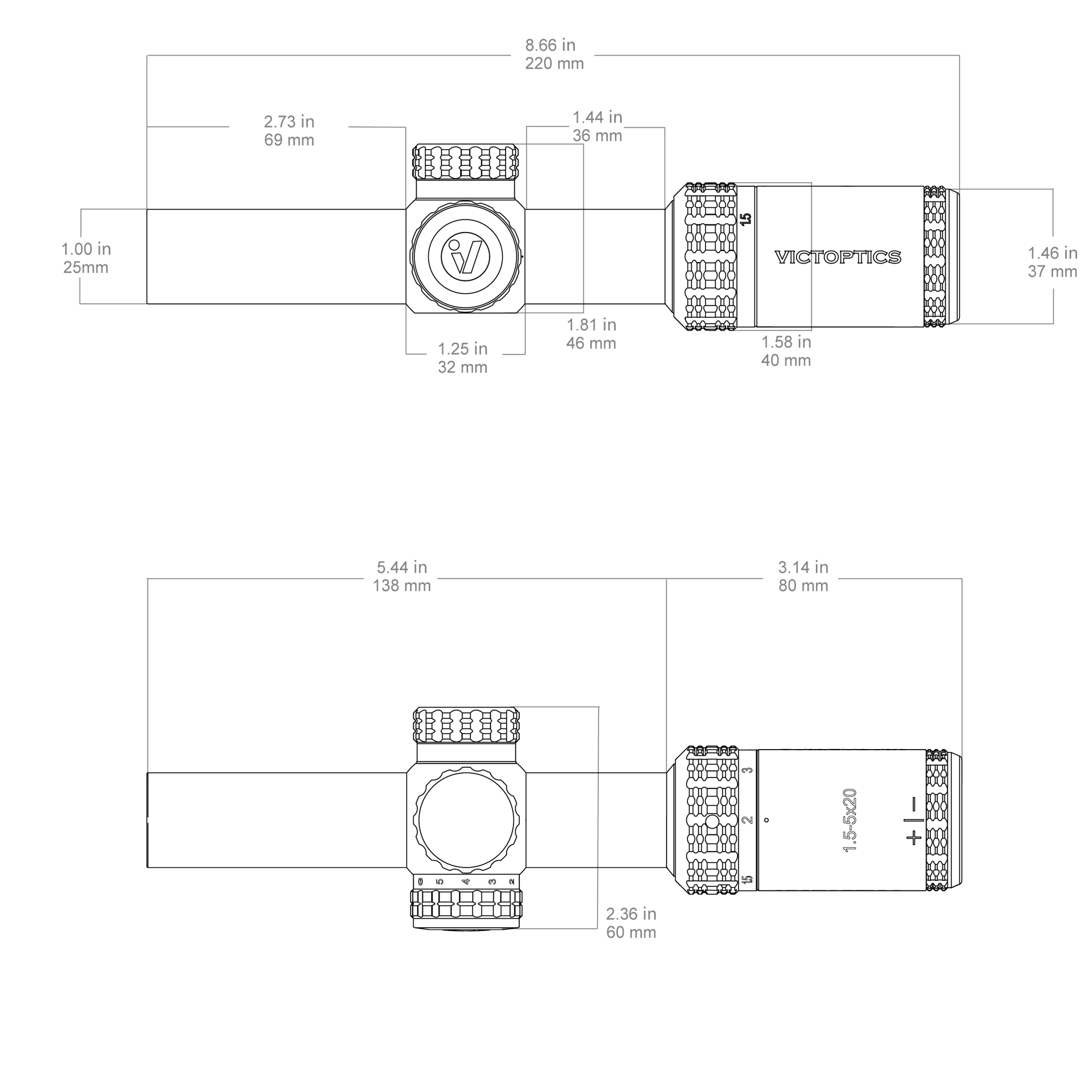

SIZE

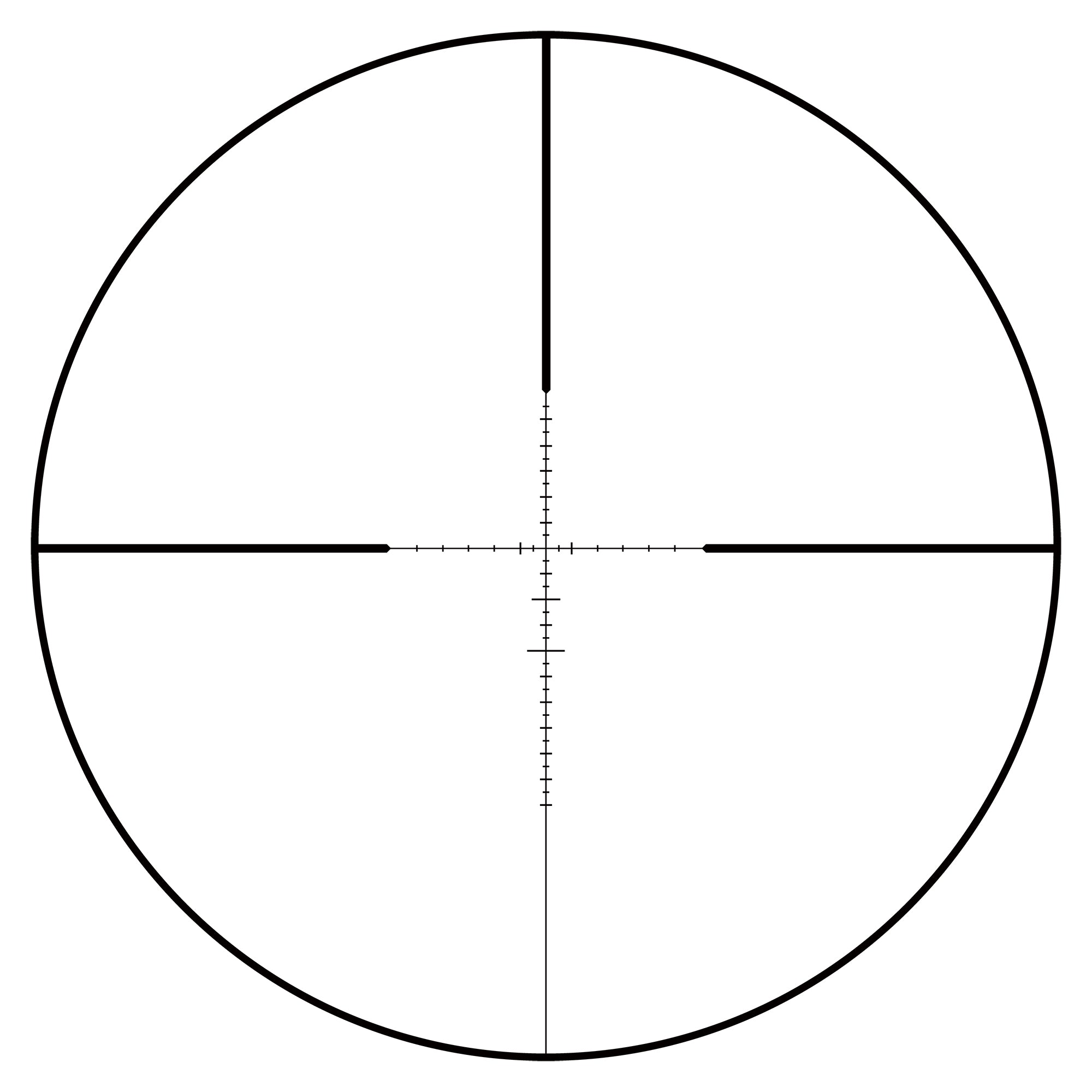

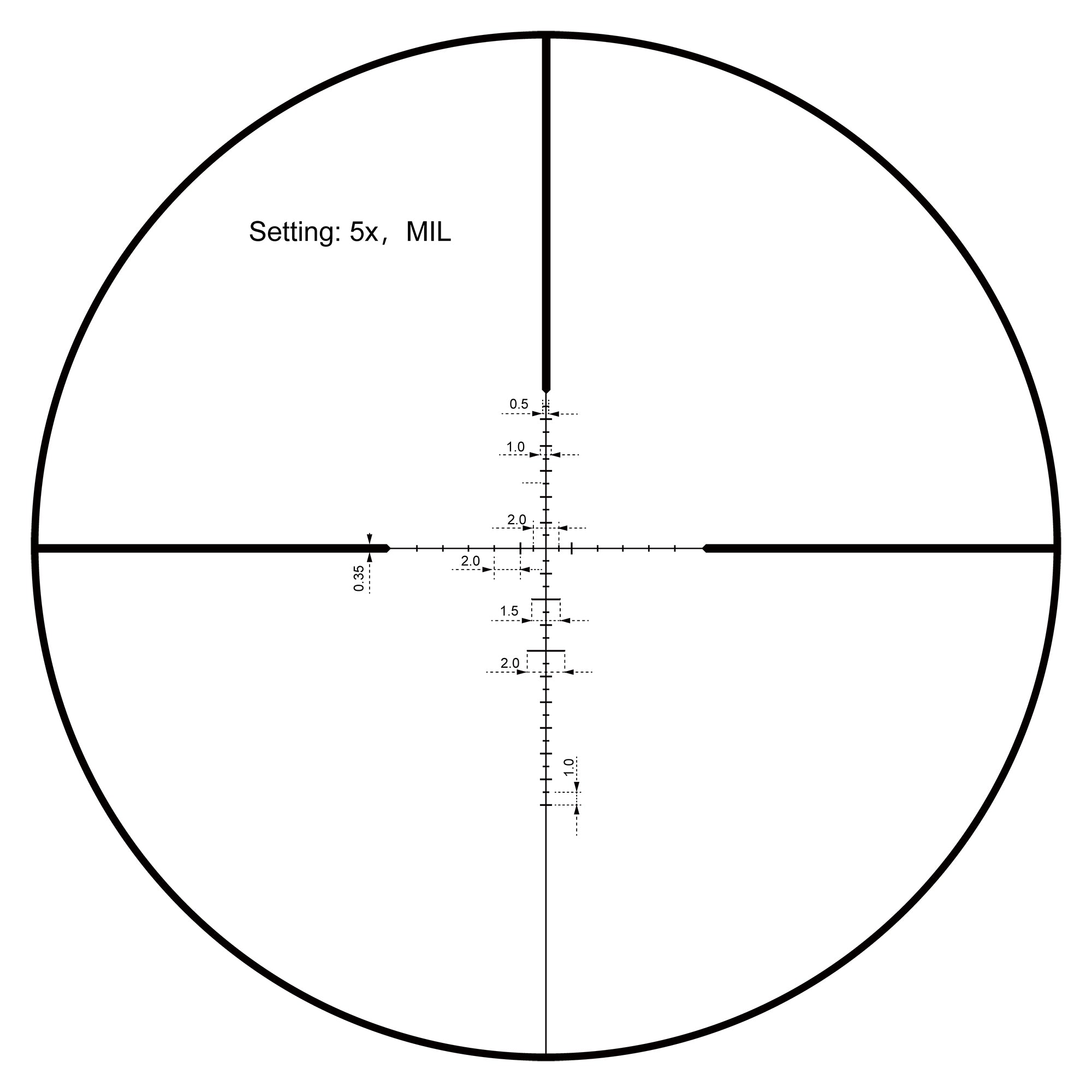

RETICLE
DOWNLOAD
