· 1-10x Zoom Delivers Versatile Targeting for Various Airgun Shooting Distance
· 4 inch Long Eye Relief Maintains Proper Shooting Stance without Worrying Scope Bite
· Fully Multi-coated Lens Allows Optimal Light Transmission, Presenting Edge-to-Edge Image
· 1/10 MIL Turret Lock Adjustment Ensure You Won't Lose Zero by Any Accident
| Magnification | 1-10x |
| Objective Lens Dia | 24 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 101 mm / 4.0 in |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 111-11.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 37-3.7 m @ 100 meters |
| Angular Field of View ° | 21.2-2.1 ° |
| Reticle | VS 10-1 MIL |
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | >35 MIL |
| Windage Adjustment Range | >35 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination | 6 Gears, Green & Red, On/off Switch |
| Battery Type | CR2032 |
| Waterproof | IPX5 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 274.0 mm / 10.79 in |
| Weight (Net) | 588 g / 20.7 oz |
| Items in the Package | User Manual, Power Ring Lever, Flip Caps and Cleaning Cloth , etc. |
FEATURE
· 1-10x Zoom Delivers Versatile Targeting for Various Airgun Shooting Distance
· 4 inch Long Eye Relief Maintains Proper Shooting Stance without Worrying Scope Bite
· Fully Multi-coated Lens Allows Optimal Light Transmission, Presenting Edge-to-Edge Image
· 1/10 MIL Turret Lock Adjustment Ensure You Won't Lose Zero by Any Accident
SPECIFICATION
| Magnification | 1-10x |
| Objective Lens Dia | 24 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 101 mm / 4.0 in |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 111-11.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 37-3.7 m @ 100 meters |
| Angular Field of View ° | 21.2-2.1 ° |
| Reticle | VS 10-1 MIL |
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | >35 MIL |
| Windage Adjustment Range | >35 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination | 6 Gears, Green & Red, On/off Switch |
| Battery Type | CR2032 |
| Waterproof | IPX5 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 274.0 mm / 10.79 in |
| Weight (Net) | 588 g / 20.7 oz |
| Items in the Package | User Manual, Power Ring Lever, Flip Caps and Cleaning Cloth , etc. |

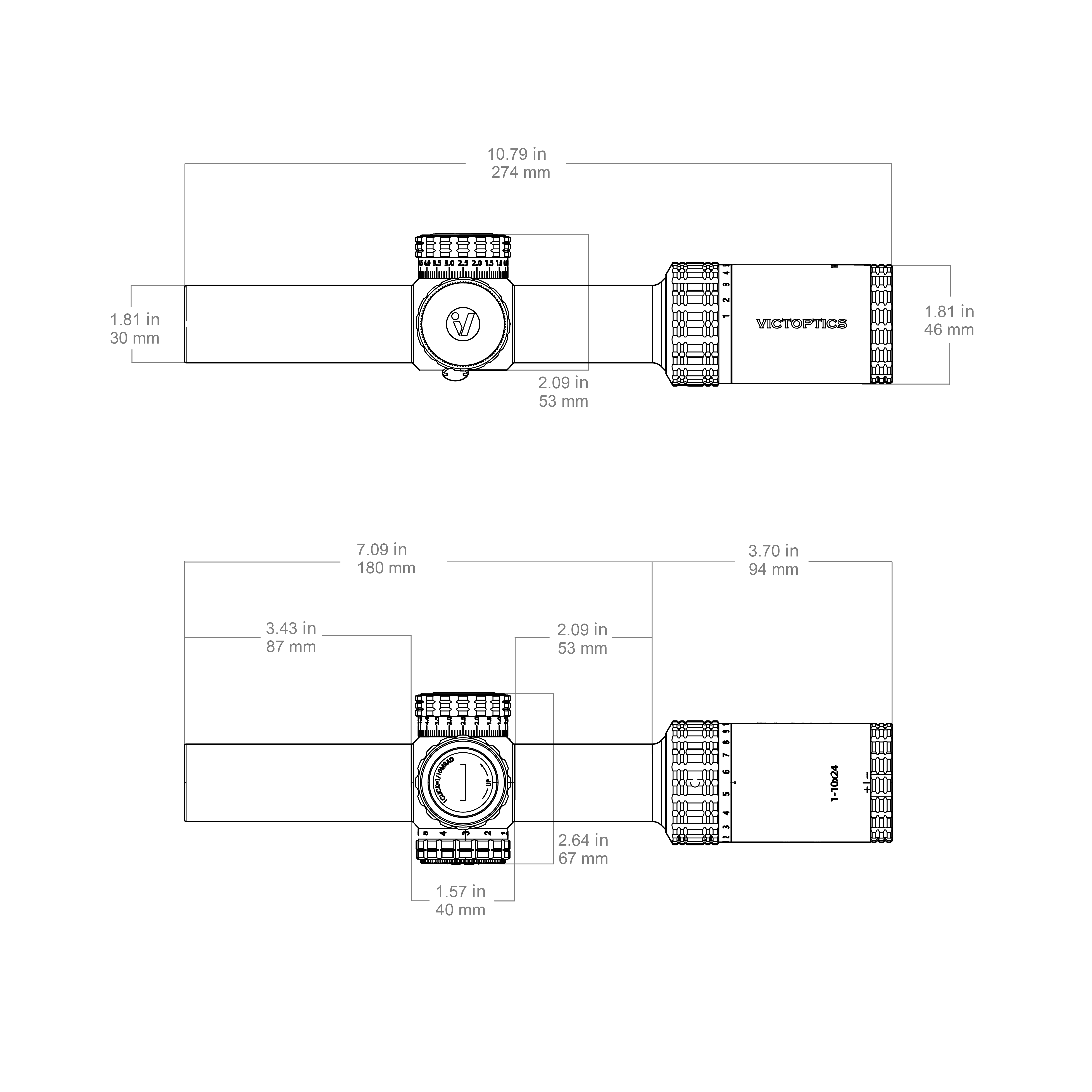

SIZE
RETICLE
DOWNLOAD
