· 5 Groups 7 Lens, Silver Coated Prism, Fully Multi Coated Lens, Center Focus.
· Phase Correction Coating, Roof Prism, Reinforced Polycarbonate, Metal Knob & Ring.
| Magnification | 8x |
| Objective Lens Dia | 42 mm / 1.6 in |
| Exit Pupil | 5.1 mm / 0.19 in |
| Eye Relief | N/A |
| Min. Focal Distance | N/A |
| Lens Coating | Fully Multi-coated |
| Prism Glass | BaK-4, Roof Prism |
| Prism Coating | N/A |
| Focusing System | Central |
| Linear Field of View | 347 ft @ 1000 yds |
| Linear Field of View | 116 m @ 1000 m |
| Angular Field of View | 6.6 ° |
| Diopter | Right Eyepiece |
| Diopter Compensation | -4 to +4 |
| Waterproof | IPX6 |
| Material | Reinforced Polycarbonate |
| Housing Material | N/A |
| Operating Temperature | -20 to +60 ℃ |
| Storage Temperature | 10-25 ℃ |
| Size | 146x54x128 mm |
| Weight (including caps) | 705 g / 24.87 oz |
| Eyecups | N/A |

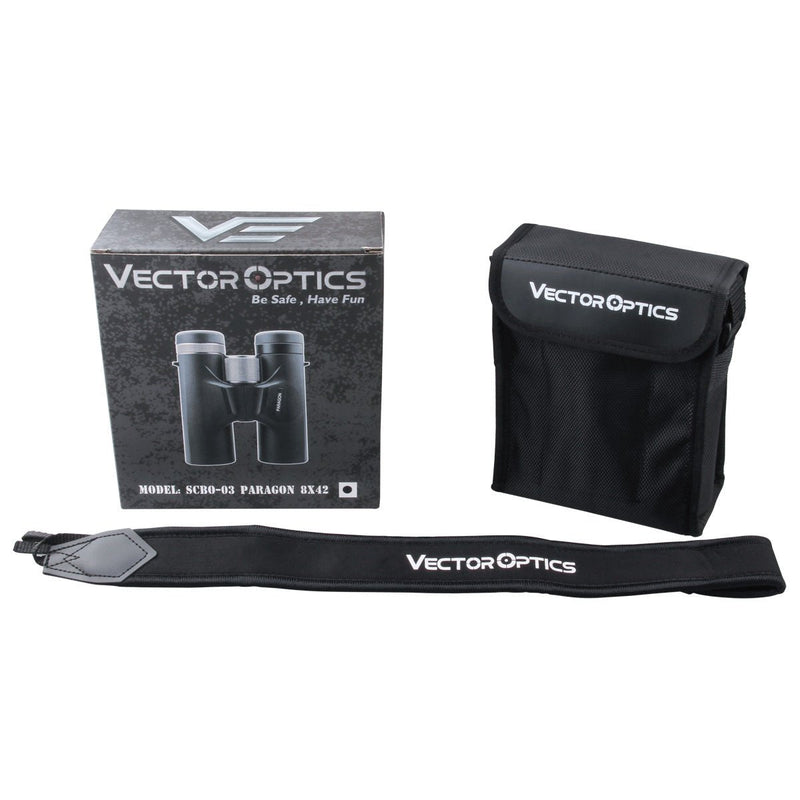

| Items in the Package | With Strap, Instruction, Cleaning Cloth, Pouch, Retail Package, etc |
| Finish | Black |
FEATURE
· 5 Groups 7 Lens, Silver Coated Prism, Fully Multi Coated Lens, Center Focus.
· Phase Correction Coating, Roof Prism, Reinforced Polycarbonate, Metal Knob & Ring.
SPECIFICATION
| Magnification | 8x |
| Objective Lens Dia | 42 mm / 1.6 in |
| Exit Pupil | 5.1 mm / 0.19 in |
| Eye Relief | N/A |
| Min. Focal Distance | N/A |
| Lens Coating | Fully Multi-coated |
| Prism Glass | BaK-4, Roof Prism |
| Prism Coating | N/A |
| Focusing System | Central |
| Linear Field of View | 347 ft @ 1000 yds |
| Linear Field of View | 116 m @ 1000 m |
| Angular Field of View | 6.6 ° |
| Diopter | Right Eyepiece |
| Diopter Compensation | -4 to +4 |
| Waterproof | IPX6 |
| Material | Reinforced Polycarbonate |
| Housing Material | N/A |
| Operating Temperature | -20 to +60 ℃ |
| Storage Temperature | 10-25 ℃ |
| Size | 146x54x128 mm |
| Weight (including caps) | 705 g / 24.87 oz |
| Eyecups | N/A |
| Items in the Package | With Strap, Instruction, Cleaning Cloth, Pouch, Retail Package, etc |
| Finish | Black |
