• Roof Prism ED Lens, 6 Groups 8 Lens, High Definition Binocular, Lightweight and Compact
• FMC with Dielectrical Coating Up to 88% Light Transmission, Providing Bright and Crystal Images
• IPX7 Waterproof, 1m Deep Water for 30 Min, Ensuring Reliable Performance in All Weather Conditions
| Magnification | 8x |
| Objective Lens Dia | 42 mm / 1.6 in |
| Exit Pupil | 5.25 mm |
| Eye Relief | 19.5 mm |
| Min. Focal Distance | N/A |
| Lens Coating | Fully Multi-coated |
| Prism Glass | BaK-4, Roof Prism |
| Prism Coating | N/A |
| Focusing Sytem | Central |
| Linear Field of View | 42.6 ft @ 1000 yds |
| Linear Field of View | 14.2 m @ 1000 m |
| Angular Field of View | 8.1 ° |
| Diopter | Right Eyepiece |
| Diopter Compensation | -4 to +4 |
| Waterproof | IPX7 |
| Material | Aluminum Alloy |
| Housing Material | Semi-aromatic Thermoplastic |
| Operating temperature | -20 to +60 ℃ |
| Storage temperature | 10-25 ℃ |
| Size | 147x130x55 mm |
| Weight (Net) | 841 g / 29.67 oz |
| Eyecups | Twist-up |
| Items in the Package | Pouch, Shoulder Strap, Lens Caps, Instruction, Cleaning Cloth, etc. |
| Finish | Green |
FEATURE
• Roof Prism ED Lens, 6 Groups 8 Lens, High Definition Binocular, Lightweight and Compact
• FMC with Dielectrical Coating Up to 88% Light Transmission, Providing Bright and Crystal Images
• IPX7 Waterproof, 1m Deep Water for 30 Min, Ensuring Reliable Performance in All Weather Conditions
SPECIFICATION
| Magnification | 8x |
| Objective Lens Dia | 42 mm / 1.6 in |
| Exit Pupil | 5.25 mm |
| Eye Relief | 19.5 mm |
| Min. Focal Distance | N/A |
| Lens Coating | Fully Multi-coated |
| Prism Glass | BaK-4, Roof Prism |
| Prism Coating | N/A |
| Focusing Sytem | Central |
| Linear Field of View | 42.6 ft @ 1000 yds |
| Linear Field of View | 14.2 m @ 1000 m |
| Angular Field of View | 8.1 ° |
| Diopter | Right Eyepiece |
| Diopter Compensation | -4 to +4 |
| Waterproof | IPX7 |
| Material | Aluminum Alloy |
| Housing Material | Semi-aromatic Thermoplastic |
| Operating temperature | -20 to +60 ℃ |
| Storage temperature | 10-25 ℃ |
| Size | 147x130x55 mm |
| Weight (Net) | 841 g / 29.67 oz |
| Eyecups | Twist-up |
| Items in the Package | Pouch, Shoulder Strap, Lens Caps, Instruction, Cleaning Cloth, etc. |
| Finish | Green |

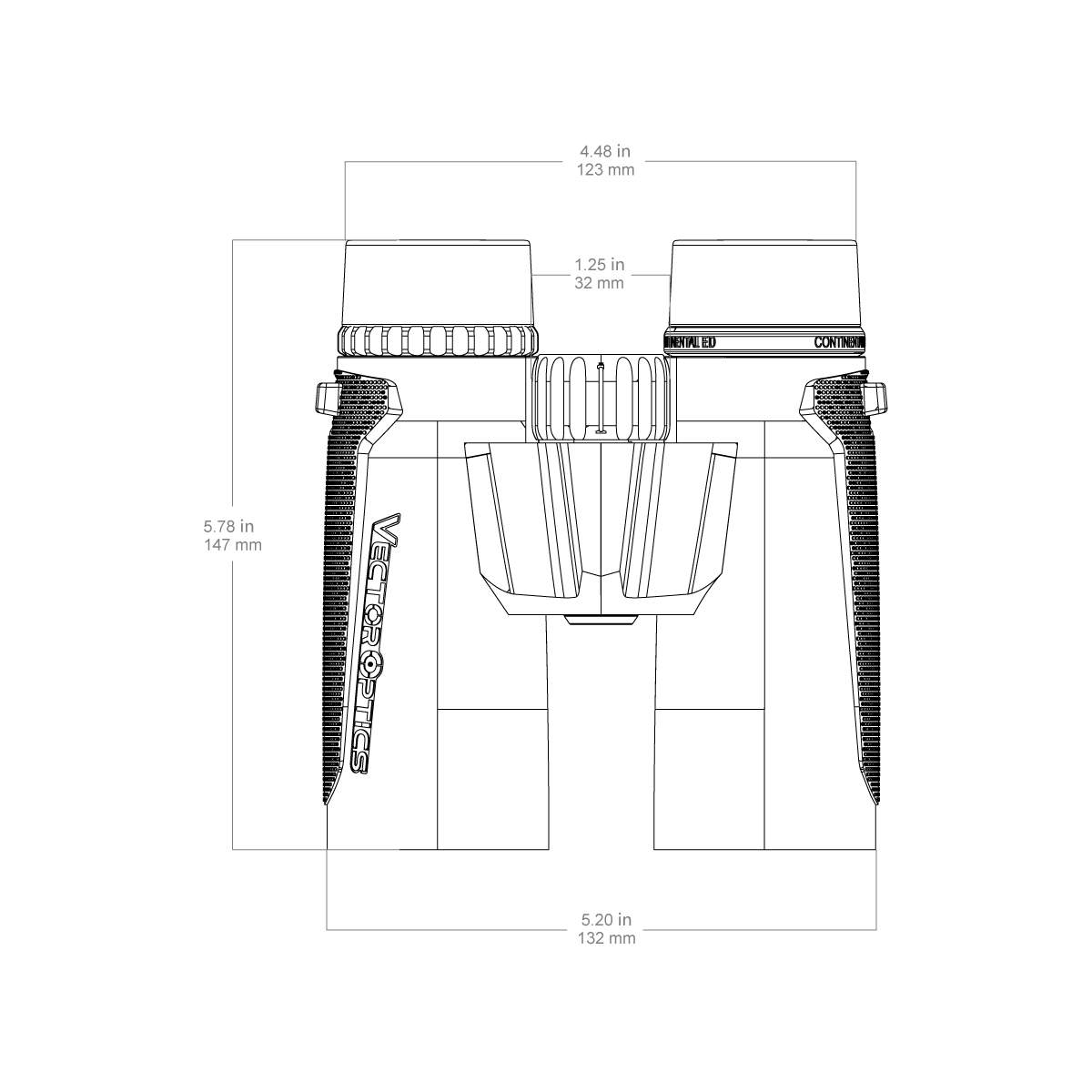

SIZE
RETICLE
