· 30mm Monotube, Ultra Short 295mm 11.6in, 1/10MIL 1cm Adjust With Turret Lock System.
· Fully Multi Coated, Side Focus Min @ 10 Yds, Long Eye Relief, Six Gear Red Illumination.
· Center Dot Illuminated Etched Glass Reticle, w/ Honeycomb Sunshade, Flip Up Caps.
· " A Must for Your Compact Air Guns and Light Weight Firearms, The Shortest Marksman Scope for You."
| Magnification | 6-24x |
| Objective Lens Dia | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 17.5-4.3 ft @ 100 yards |
| Linear Field of View @ 100 m | 5.8-1.45 m @ 100 meters |
| Angular Field of View | 3.3-0.83° |
| Reticle | MPR-V10 |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Zero Reset, Turret Lock |
| Elevation Adjustment Range | 14.5 MIL |
| Windage Adjustment Range | 14.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 (NOT INCLUDE) |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 295 mm / 11.6 in |
| Weight | 580 g / 20.5 oz |
| Items in the Package | One Pair of 30 mm Weaver Scope Rings, Cleaning Cloth, Instruction, Lens Cap, Flip-up Caps, Honeycomb Shade, etc. |
FEATURE
· 30mm Monotube, Ultra Short 295mm 11.6in, 1/10MIL 1cm Adjust With Turret Lock System.
· Fully Multi Coated, Side Focus Min @ 10 Yds, Long Eye Relief, Six Gear Red Illumination.
· Center Dot Illuminated Etched Glass Reticle, w/ Honeycomb Sunshade, Flip Up Caps.
· " A Must for Your Compact Air Guns and Light Weight Firearms, The Shortest Marksman Scope for You."
SPECIFICATION
| Magnification | 6-24x |
| Objective Lens Dia | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 17.5-4.3 ft @ 100 yards |
| Linear Field of View @ 100 m | 5.8-1.45 m @ 100 meters |
| Angular Field of View | 3.3-0.83° |
| Reticle | MPR-V10 |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Zero Reset, Turret Lock |
| Elevation Adjustment Range | 14.5 MIL |
| Windage Adjustment Range | 14.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 (NOT INCLUDE) |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 295 mm / 11.6 in |
| Weight | 580 g / 20.5 oz |
| Items in the Package | One Pair of 30 mm Weaver Scope Rings, Cleaning Cloth, Instruction, Lens Cap, Flip-up Caps, Honeycomb Shade, etc. |

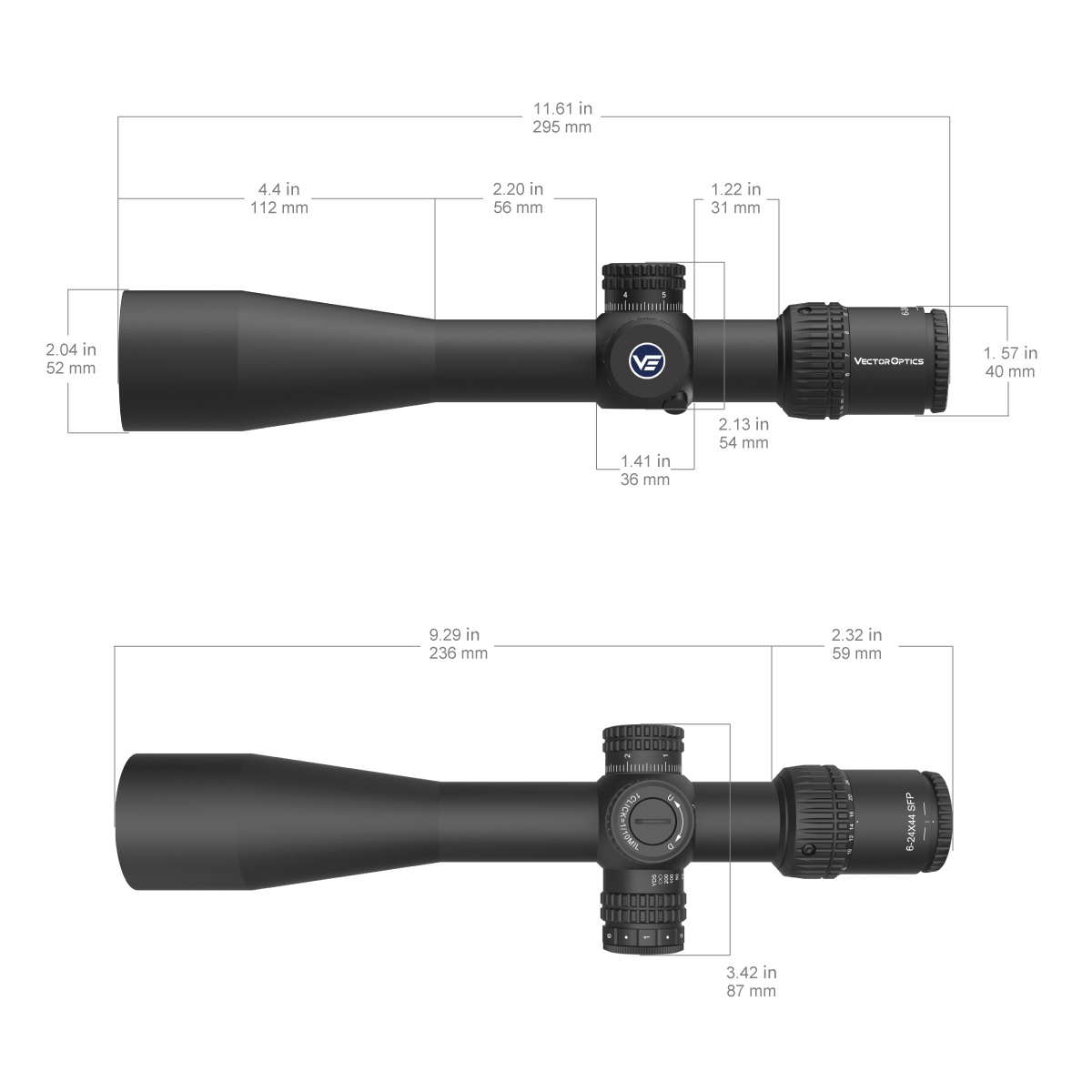

SIZE
RETICLE
