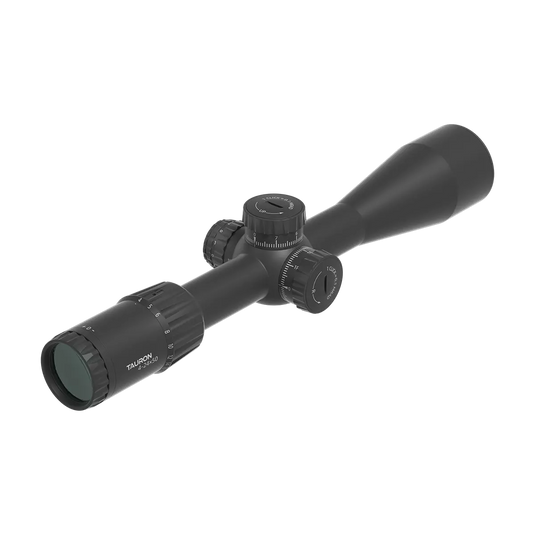

- First Focal Plane MPX1 Reticle for Long-Range Shooting and Varmint Hunting, 0.15MIL Center Dot for Precise Aiming

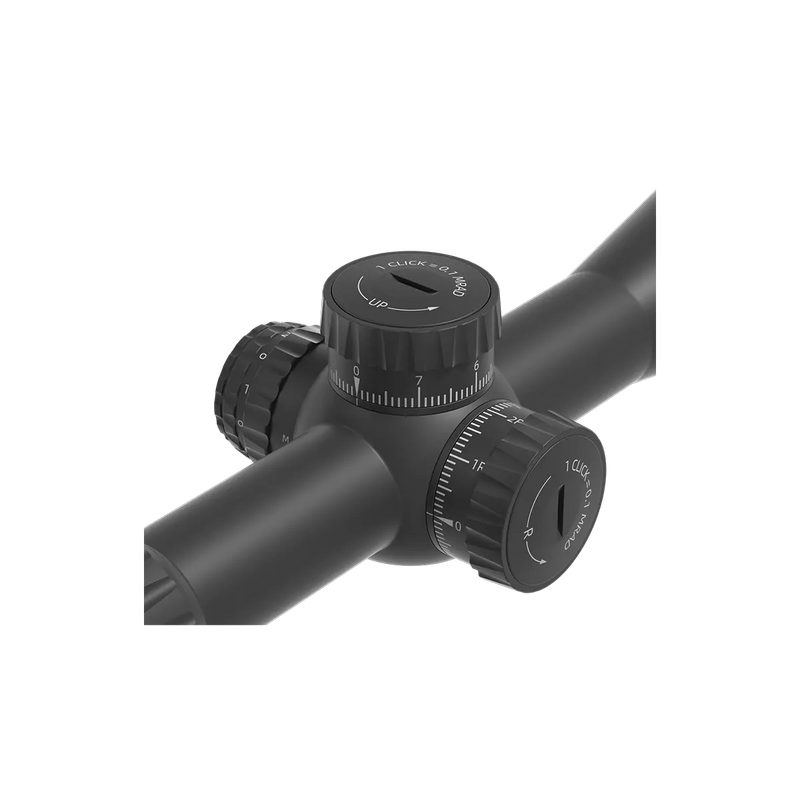

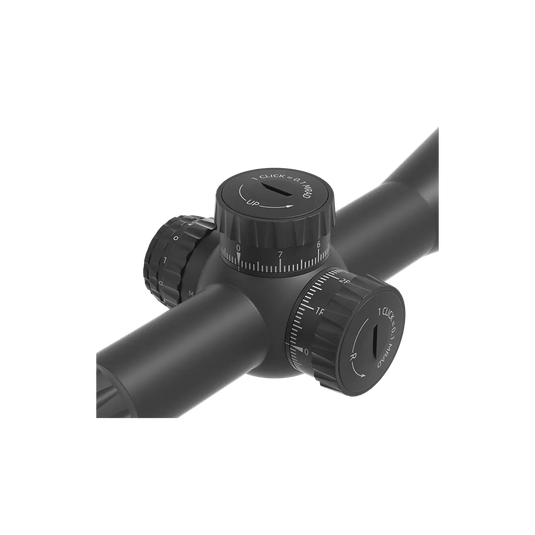

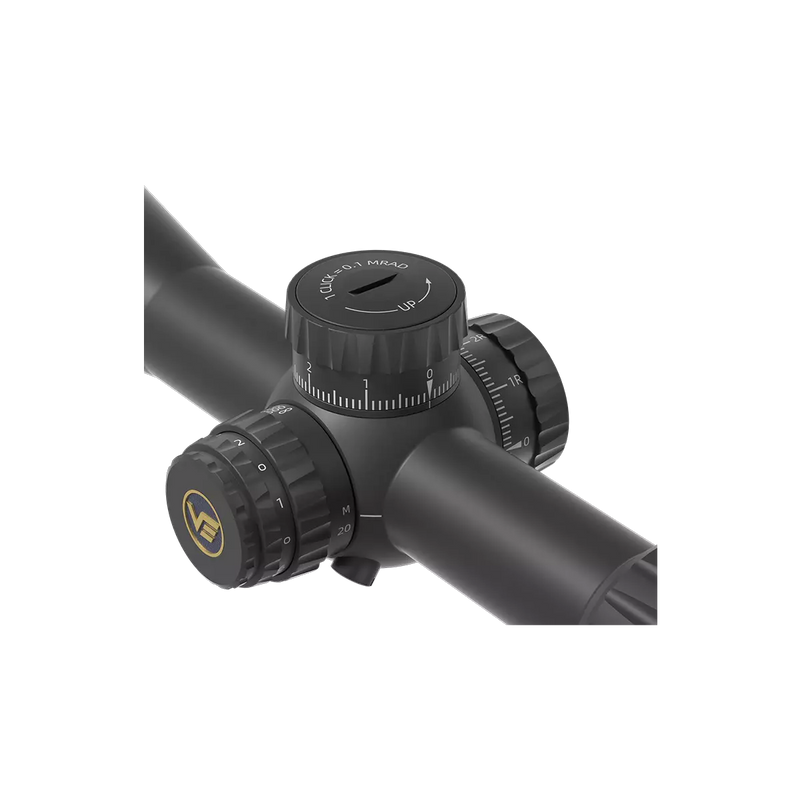

- Turret Lock Function Prevents Unintentional Adjustments, Zero Stop Effortlessly Return to a Pre-Set Zero Point
- 6-Level Illuminated Center Dot Adaptable to Various Light Conditions, IP67 Dust-Tight and Waterproof
| Magnification | 4-24x |
| Objective Lens Dia | 50 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 95 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 25.2-4.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.4-1.4 m @100 meters |
| Angular Field of View | 4.8-0.8 ° |
| Reticle | Etched Glass MPX1 |
| Side Focus | 20 yards to Infinity |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock, Zero Stop |
| Elevation Adjustment Range | ≥ 21 MIL |
| Windage Adjustment Range | ≥ 16 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP67 |
| Fogproof | Filled Nitrogen |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 370 mm / 14.6 in |
| Weight | 877 g / 30.9 oz |

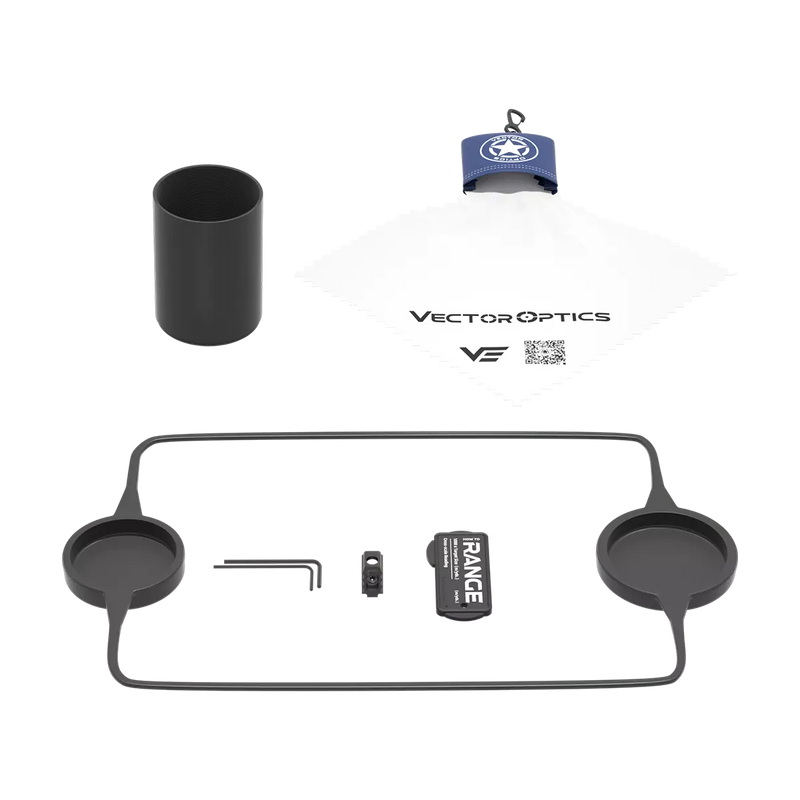

| Items in the Package | One Pair of 30 mm Picatinny Scope Rings, Cleaning Cloth, Instruction, Lens Cap, Honeycomb Sunshade, etc |
FEATURE
- First Focal Plane MPX1 Reticle for Long-Range Shooting and Varmint Hunting, 0.15MIL Center Dot for Precise Aiming
- Turret Lock Function Prevents Unintentional Adjustments, Zero Stop Effortlessly Return to a Pre-Set Zero Point
- 6-Level Illuminated Center Dot Adaptable to Various Light Conditions, IP67 Dust-Tight and Waterproof
SPECIFICATION
| Magnification | 4-24x |
| Objective Lens Dia | 50 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 95 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 25.2-4.2 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.4-1.4 m @100 meters |
| Angular Field of View | 4.8-0.8 ° |
| Reticle | Etched Glass MPX1 |
| Side Focus | 20 yards to Infinity |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock, Zero Stop |
| Elevation Adjustment Range | ≥ 21 MIL |
| Windage Adjustment Range | ≥ 16 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP67 |
| Fogproof | Filled Nitrogen |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 370 mm / 14.6 in |
| Weight | 877 g / 30.9 oz |
| Items in the Package | One Pair of 30 mm Picatinny Scope Rings, Cleaning Cloth, Instruction, Lens Cap, Honeycomb Sunshade, etc |
SIZE

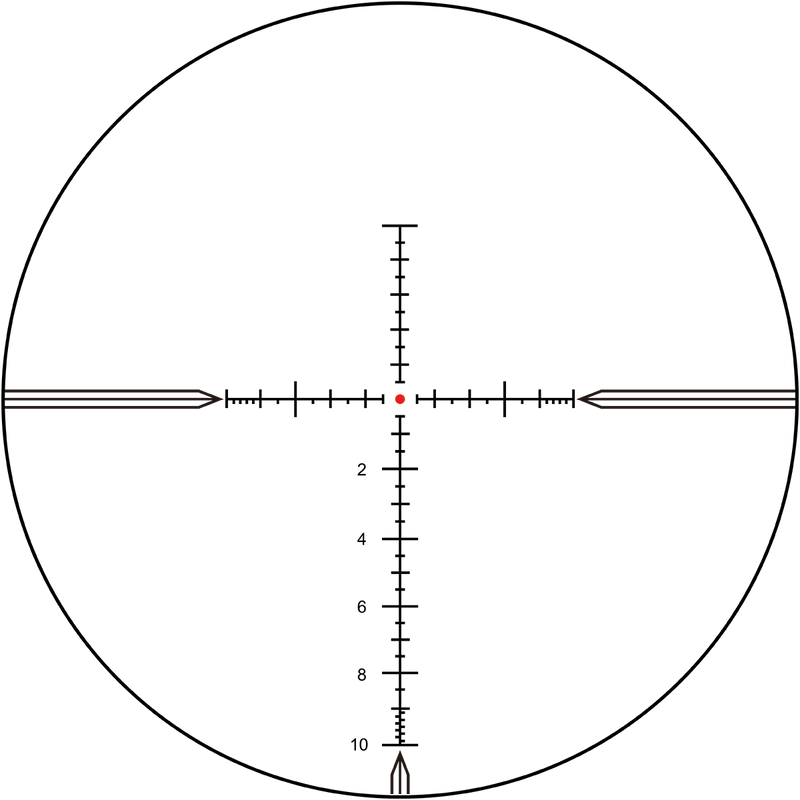

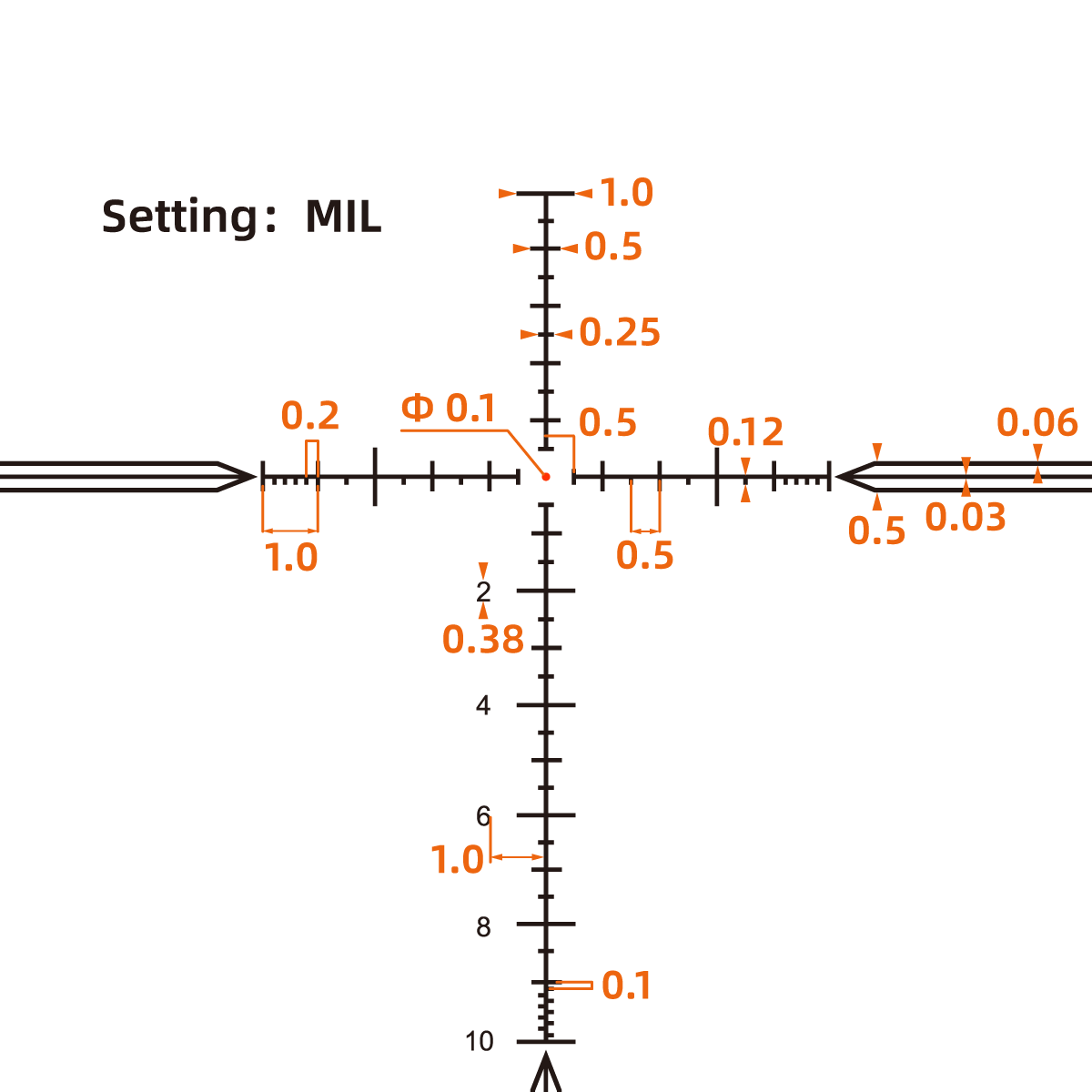

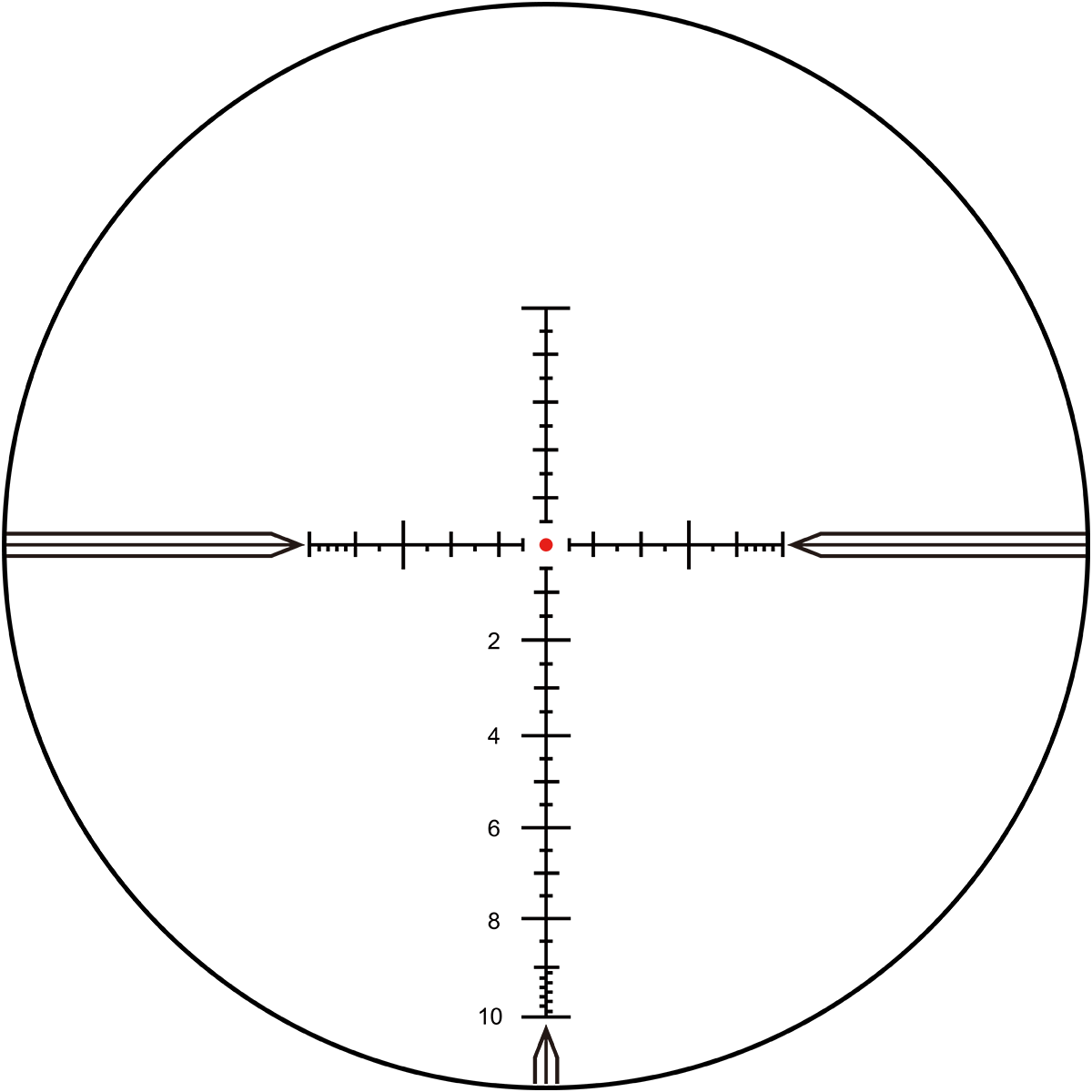

RETICLE
DOWNLOAD
