Feature
· Fully Multi Coated
· Edge-to-Edge Image
· Wide Filed of View
· Side Focus Min 10 Yds
· 4x Zoom Factor
· 4 Inch Long Eye Relief
· 25.4mm 1 Inch Monotube Made of 6061 T6
· 1/4MOA Zero Reset & Turret Lock
· BDC & Ranging Reticle Predictable Max to 600 Yards Range

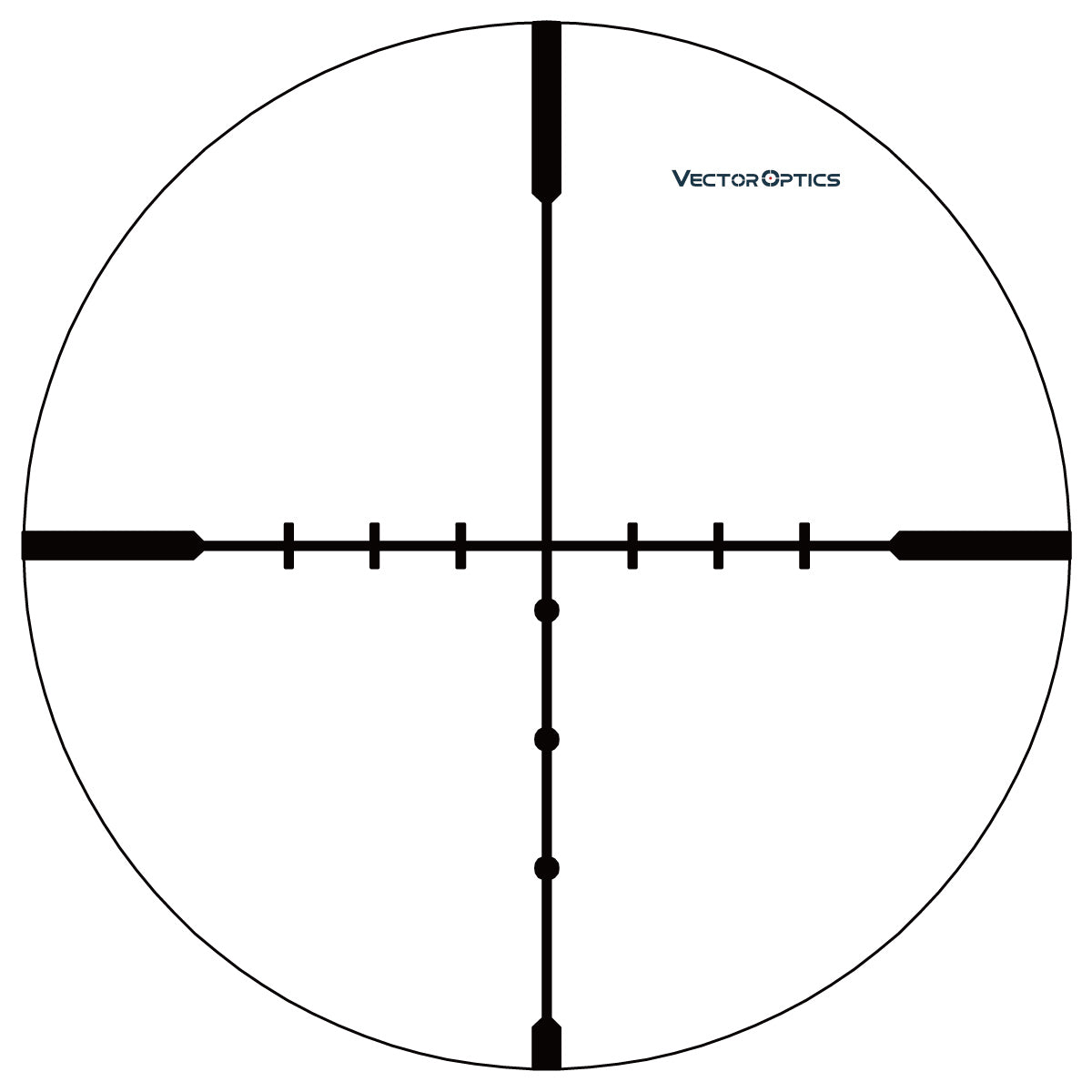

Reticle
Specification
· Magnification: 6-24x
· Objective Lens Dia.: 50mm
· Ocular Lens Dia.: 38mm / 1.5 inch
· Ocular Lens Length: 60mm / 2.4 inch
· Exit Pupil: 8.3-2mm
· Optics Coating: Fully-multi coat
· Field of View: 15.8-4.0 feet@100 yds
· Eye Relief: 105--100mm / 4.1-3.9 inch
· Length: 360mm / 14.2 inch
· Weight: 660g / 23.3 ounce
· Tube Dia.: 25.4mm 1â€?Monotube
· Click Value: 1/4 MOA
· Elevation Range: 40MOA
· Windage Range: 40MOA
· Parallax Setting: 10 yards to infinite
· Reticle: VOW-10BDC
· Illumination: None

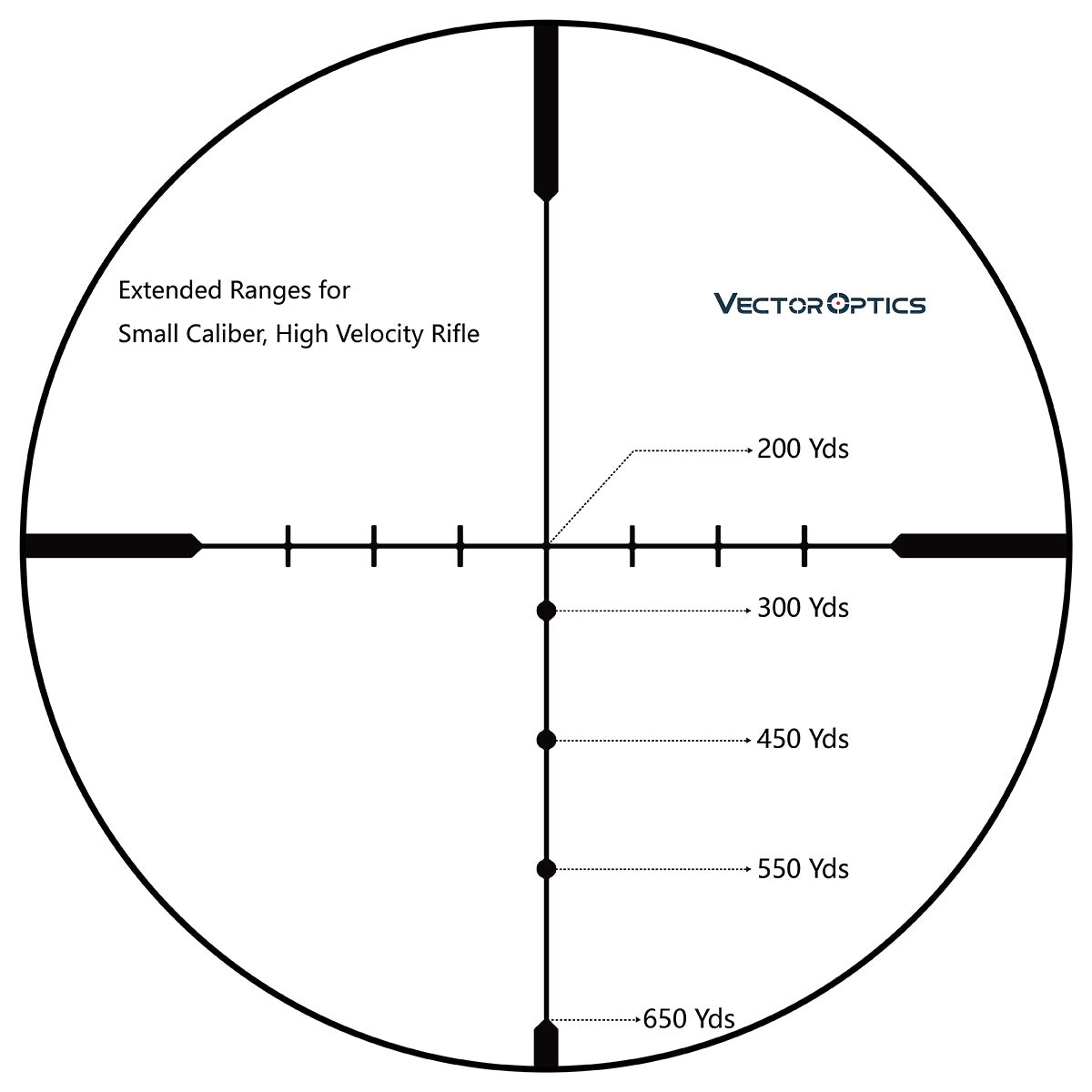

· BDC & ranging reticle usage set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range

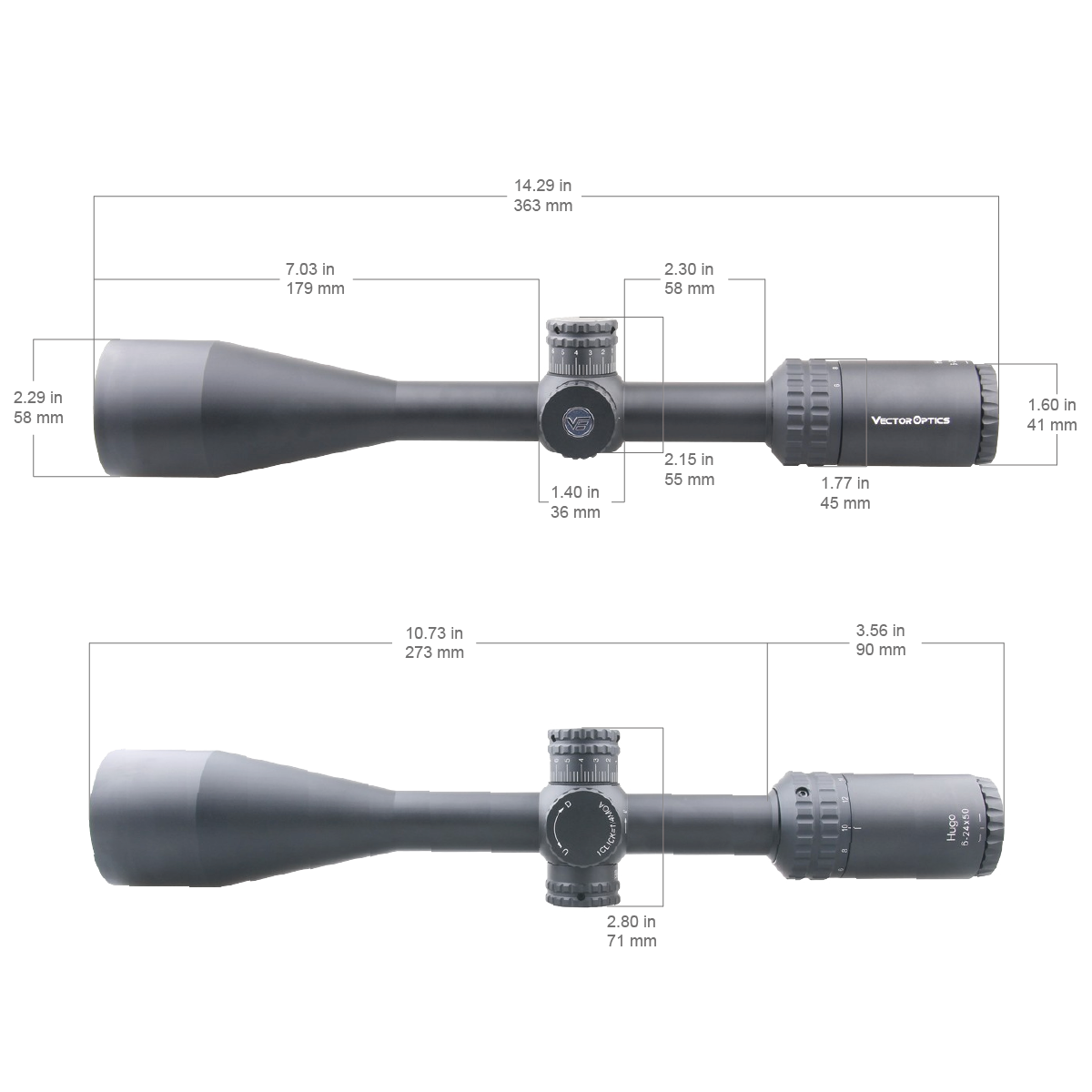

· Distance between objective lens part and middle turret: 58mm (2.3 inch)
· Length of middle turret part: 37mm (1.5 inch)
· Distance between middle turret part to power ring: 57mm (2.2 inch)
· Side focus marks: 10, 15, 25, 50, 100, 200, 500 and infinite yds
· Shock tested to 750g and water proof
· Fully nitrogen purged to eliminate any fogging of the lenses internally
· High quality 6061 T6 aircraft grade aluminum
· Diopter compensation from fast-focus eyepiece (+2 to -2)
· Accessories included: weaver rings (default) or dovetail rings, sunshade, flip-up capss and cleaning cloth etc.
Service
For More Warranty Information,Pls See to The Page of WARRANTY INFO: https://vector2007.com/pages/warranty-info
