• 8x Zoom Factor, Ture 1x Power For Both-Eyes-Open Shooting Allows for a Wide Field of View
• Fully Multi-coated Lens Greatly Improve Light Transmission, Presenting Edge-to-Edge Image
• Featuring a Durable and Reliable 30mm Monotube Design, Most Mount Types Available
• 1/10 MIL Capped Adjustment with Very Low Profile, Total >35MIL Adjustment Range
• First Focal Plane VCO-1 MIL Reticle, Large Circle Style, Ideal for Close-quarters Shooting
• The Included Throw Lever Can be Installed for Quick and Easy Magnification Adjustments
Magnification | 1-8x |
Objective Lens | 24 mm |
Focal Plane | First Focal Plane |
Eye Relief | 90 mm |
Exit Pupil | 8.0-3.0 mm |
Lens Coating | Fully Multi-coated |
Linear Field of View @ 100 yd | 116.6-14.8 ft @ 100 yards |
Linear Field of View @ 100 m | 34.6-4.5 m @ 100 meters |
Angular Field of View | 19.9-2.6° |

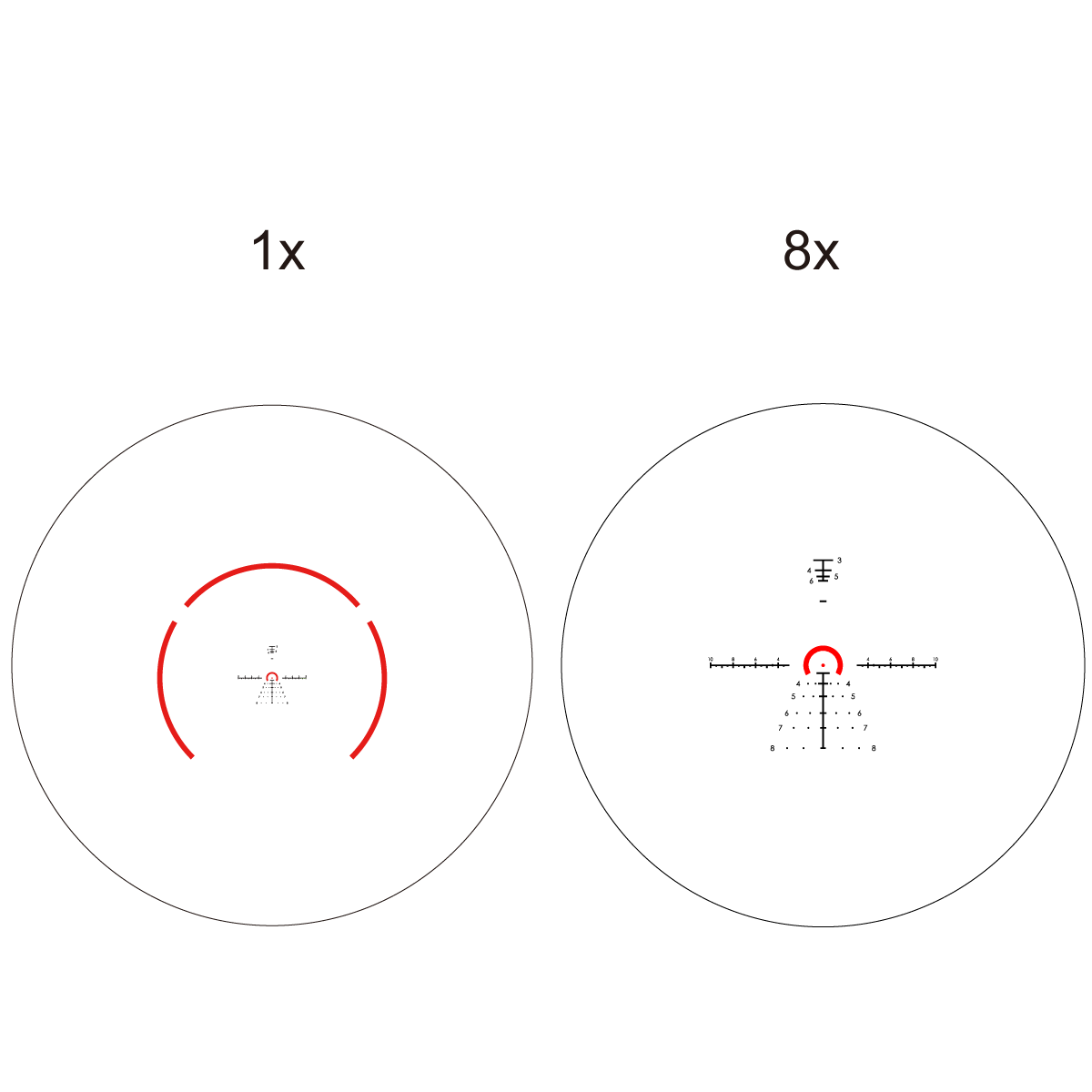

Reticle | VCO-1 MIL |
Tube Dia | 30 mm |
Parallax Setting | 100 yards |
Click Value | 1/10 MIL |
Turret Function | Capped |
Elevation Adjustment Range | >35 MIL |
Windage Adjustment Range | >35 MIL |
Diopter Compensation | +2 to -2 |
Illumination Setting | 11 Gears |
Battery Type | CR2032 (Not Include) |
Waterproof | IPX7 |
Fogproof | Nitrogen Filled |
Shockproof | 1000 G |
Housing Material | 6061 T6 Aluminum Alloy |
Finish | Matte Black |

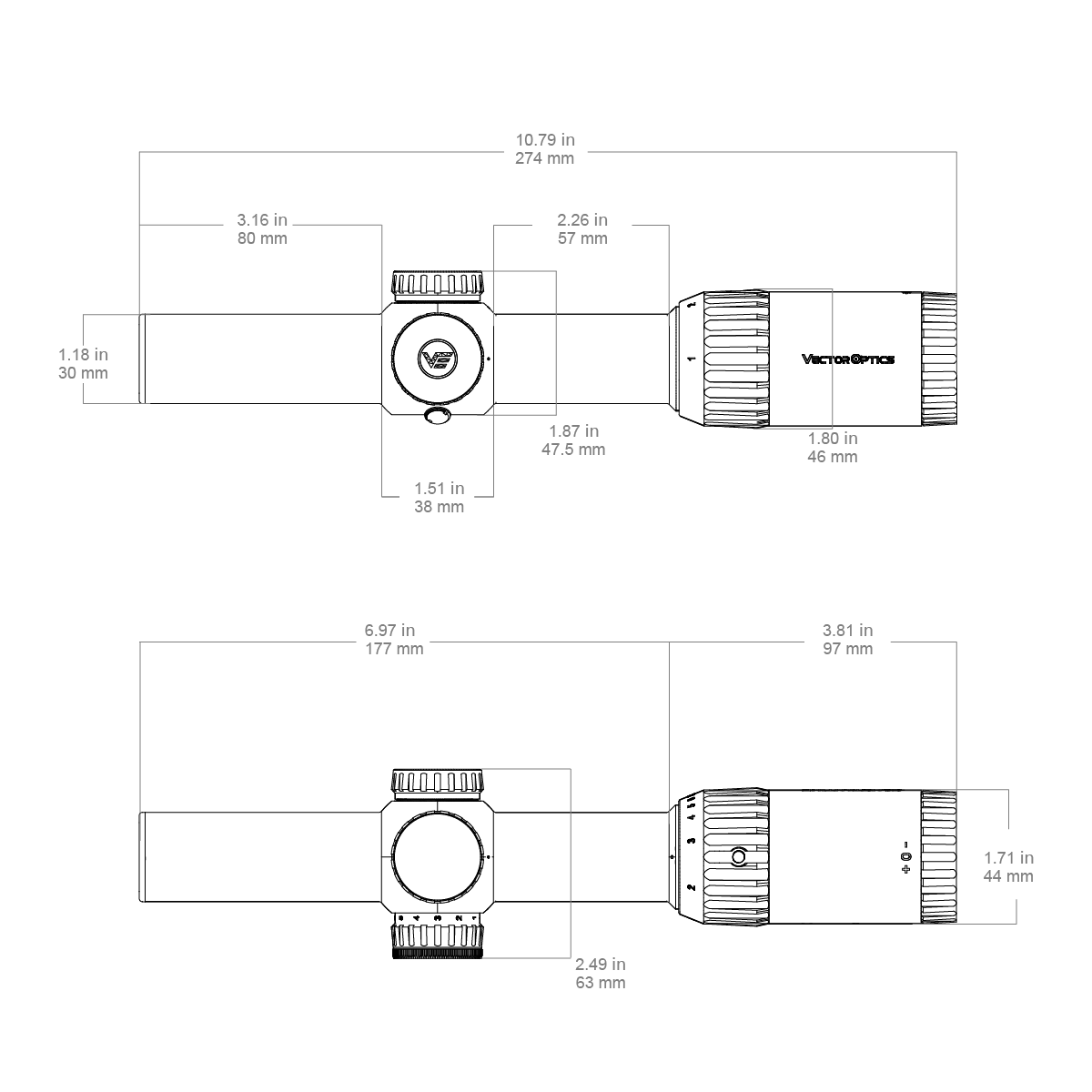

Length | 274 mm / 10.79 in |
Weight (net) | 500 g / 17.6 oz |
Items in the Package | One Pair of 30mm Weaver Scope Rings, Lens Caps and Cleaning Cloth, Power Throw Lever, etc. |
• 8x Zoom Factor, Ture 1x Power For Both-Eyes-Open Shooting Allows for a Wide Field of View
• Fully Multi-coated Lens Greatly Improve Light Transmission, Presenting Edge-to-Edge Image
• Featuring a Durable and Reliable 30mm Monotube Design, Most Mount Types Available
• 1/10 MIL Capped Adjustment with Very Low Profile, Total >35MIL Adjustment Range
• First Focal Plane VCO-1 MIL Reticle, Large Circle Style, Ideal for Close-quarters Shooting
• The Included Throw Lever Can be Installed for Quick and Easy Magnification Adjustments
