· FMC and Extra-Low Dispersion Optics Creates High Intensity & Little Distortion Image.
· True 8x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around Image.
· 30mm Monotube Made of 6061 T6, True 1x Power That Can Use Two Eyes Open For Shooting.
· 1/10MIL Capped Adjustment with Very Low Profile, Total >35MIL Adjustment Range.
| Magnification | 1-8x |
| Objective Lens Dia | 24 mm |
| Focal Plane | FFP |
| Eye Relief | 90 mm / 3.5 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 107.3-13.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 35.78-4.54 m @ 100 meters |
| Angular Field of View ° | 19.9-2.6 ° |
| Reticle | VOF-EHT |
| Parallax Setting | 100 Yards |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | >35MIL |
| Windage Adjustment Range | >35MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 11 Levels Red |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX6 |
| Fogproof | Filled Nitrogen |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 274 mm / 10.8 in |
| Weight | 500 g / 17.6 oz |
| Items in the Package | One Pair of 30mm Weaver Scope Rings, Lens Caps and Cleaning Cloth, etc. |
FEATURE
· FMC and Extra-Low Dispersion Optics Creates High Intensity & Little Distortion Image.
· True 8x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around Image.
· 30mm Monotube Made of 6061 T6, True 1x Power That Can Use Two Eyes Open For Shooting.
· 1/10MIL Capped Adjustment with Very Low Profile, Total >35MIL Adjustment Range.
SPECIFICATION
| Magnification | 1-8x |
| Objective Lens Dia | 24 mm |
| Focal Plane | FFP |
| Eye Relief | 90 mm / 3.5 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 107.3-13.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 35.78-4.54 m @ 100 meters |
| Angular Field of View ° | 19.9-2.6 ° |
| Reticle | VOF-EHT |
| Parallax Setting | 100 Yards |
| Tube Dia | 30 mm |
| Click Value | 1/10 MIL |
| Turret Function | N/A |
| Elevation Adjustment Range | >35MIL |
| Windage Adjustment Range | >35MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 11 Levels Red |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX6 |
| Fogproof | Filled Nitrogen |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 274 mm / 10.8 in |
| Weight | 500 g / 17.6 oz |
| Items in the Package | One Pair of 30mm Weaver Scope Rings, Lens Caps and Cleaning Cloth, etc. |

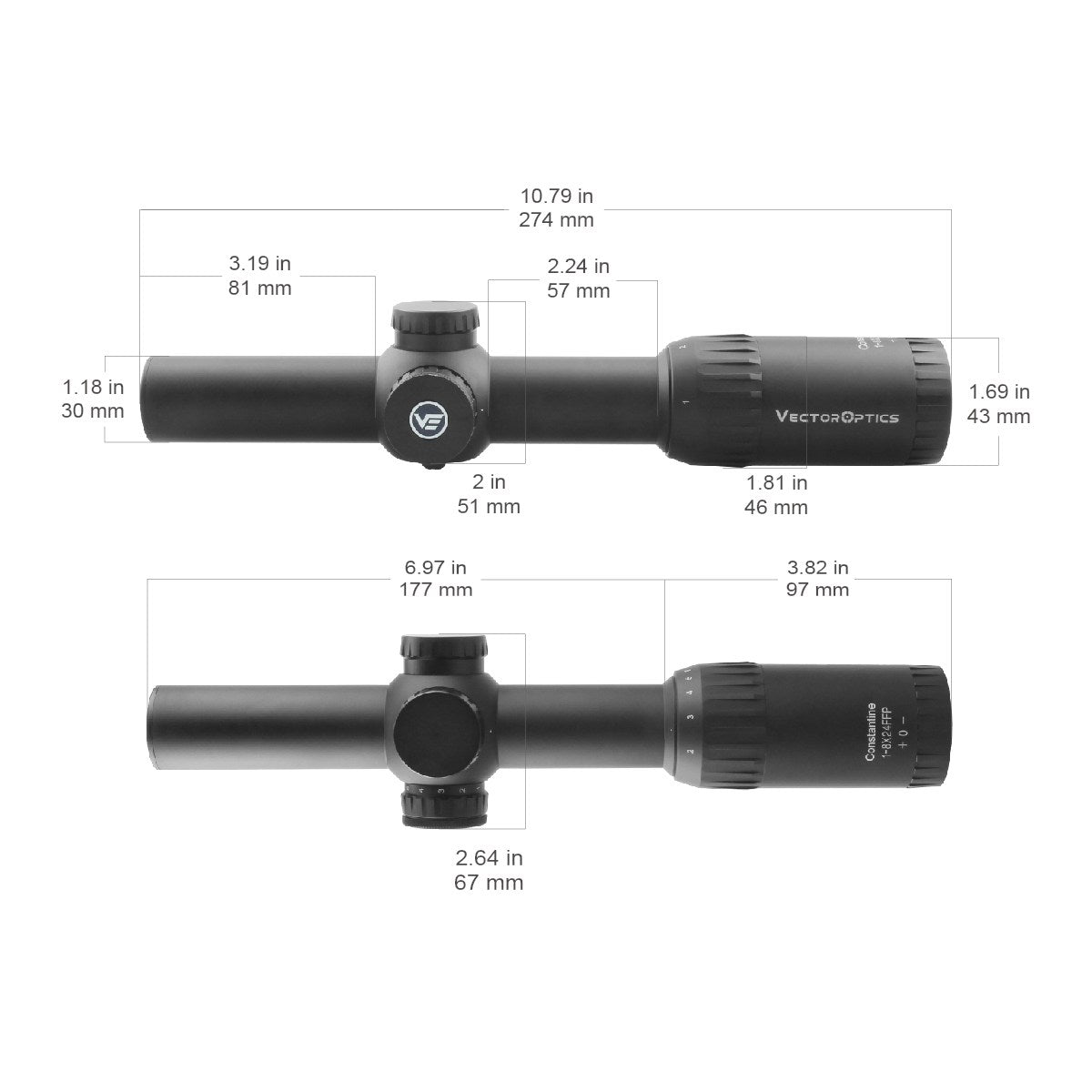

SIZE

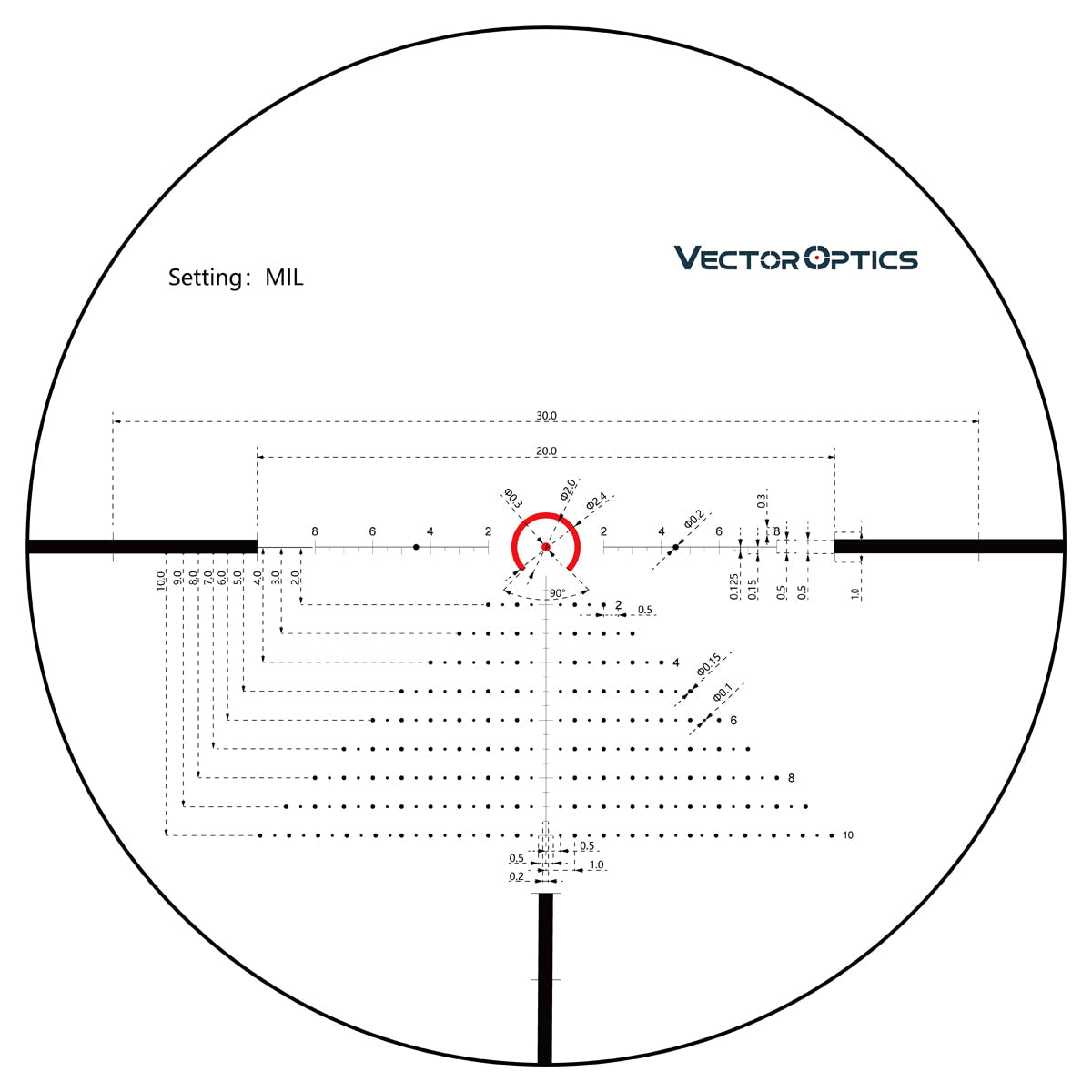

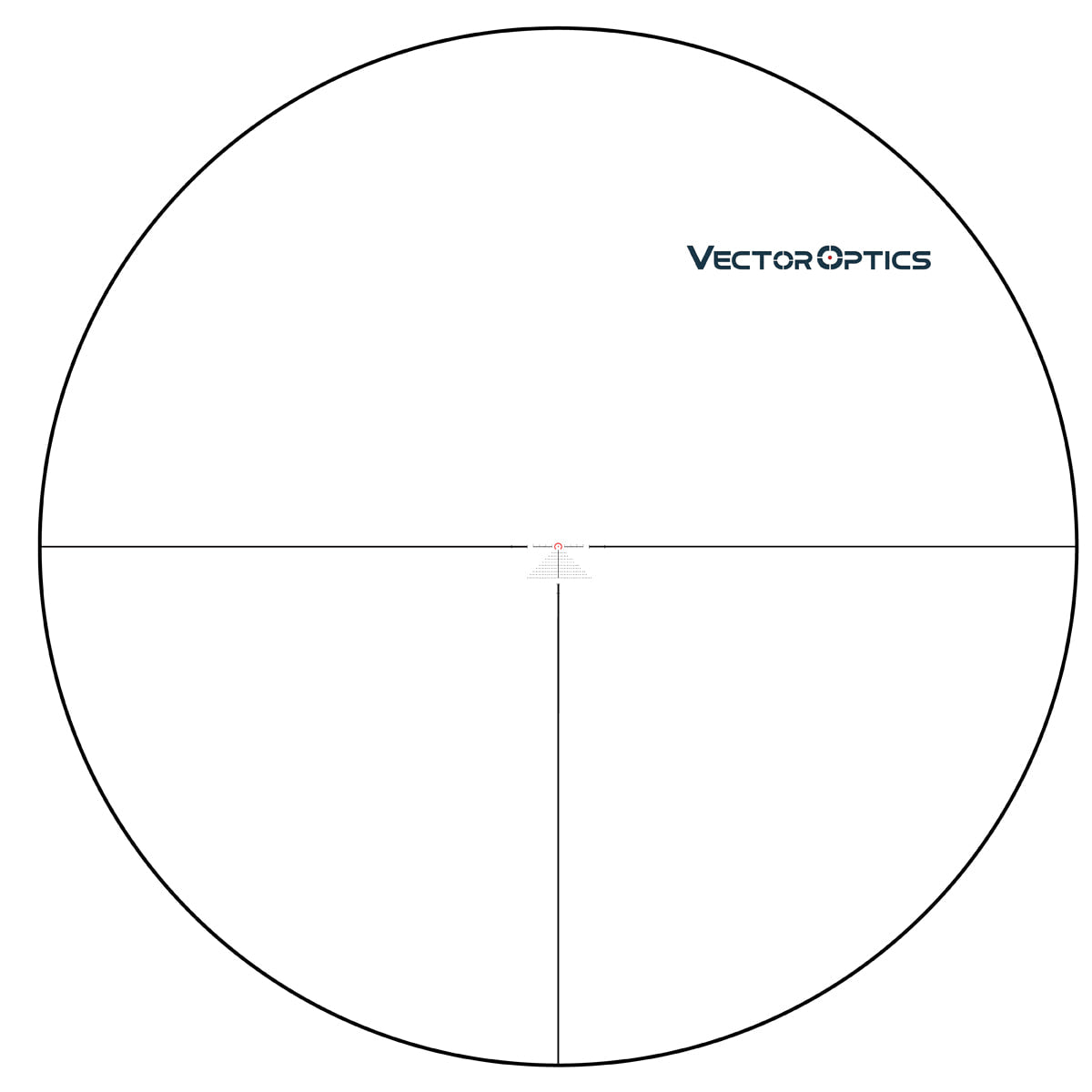

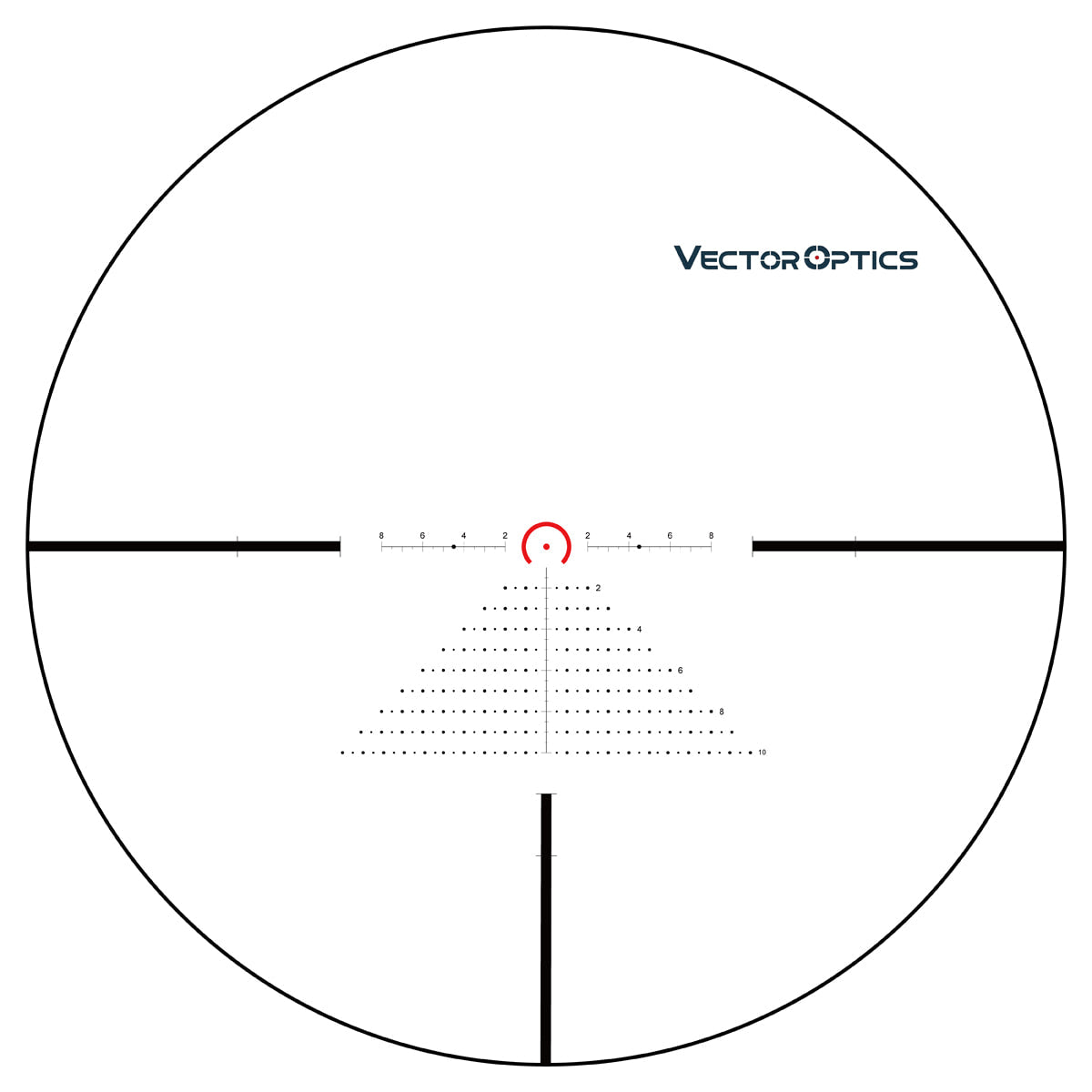

RETICLE
DOWNLOAD
