· FMC and Extra-Low Dispersion Optics Creates High Intensity and Very Little Distortion Image.
· True 10x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around the Image.
· 30mm Monotube, 2nd Focal Plane, True 1x Power That Can Use Two Eyes Open For Shooting.
· Take Lapua Magnum 338 Recoil and All Fields of Application for Hunting, Sporting & Competition.
| Magnification | 1-10x |
| Objective Lens Dia | 24 mm |
| Focal Plane | SFP |
| Eye Relief | 95-90 mm / 3.7-3.5 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 113.9-11.5 ft @100 yards |
| Linear Field of View @ 100 m | 37.98-3.83 m @100 meters |
| Angular Field of View ° | 21.5-2.2° |
| Reticle | Fiber center dot |
| Parallax Setting | 100 Yards |
| Tube Dia | 30 mm |
| Click Value | 1/2 MOA |
| Turret Function | N/A |
| Elevation Adjustment Range | 120 MOA |
| Windage Adjustment Range | 120 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 11 Levels Red |
| Battery Type | CR2032 (NOT INCLUDE) |
| Battery Life | N/A |
| Waterproof | IP67 |
| Fogproof | Filled Nitrogen |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 277 mm / 10.9 in |
| Weight | 525 g / 18.5 oz |
| Items in the Package | One Pair of 30mm Picatinny Low Rings, Power Ring Lever Mount, Spare Exposed Turret, Flip-up Caps and Cleaning Cloth, etc. |
FEATURE
· FMC and Extra-Low Dispersion Optics Creates High Intensity and Very Little Distortion Image.
· True 10x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around the Image.
· 30mm Monotube, 2nd Focal Plane, True 1x Power That Can Use Two Eyes Open For Shooting.
· Take Lapua Magnum 338 Recoil and All Fields of Application for Hunting, Sporting & Competition.
SPECIFICATION
| Magnification | 1-10x |
| Objective Lens Dia | 24 mm |
| Focal Plane | SFP |
| Eye Relief | 95-90 mm / 3.7-3.5 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 113.9-11.5 ft @100 yards |
| Linear Field of View @ 100 m | 37.98-3.83 m @100 meters |
| Angular Field of View ° | 21.5-2.2° |
| Reticle | Fiber center dot |
| Parallax Setting | 100 Yards |
| Tube Dia | 30 mm |
| Click Value | 1/2 MOA |
| Turret Function | N/A |
| Elevation Adjustment Range | 120 MOA |
| Windage Adjustment Range | 120 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 11 Levels Red |
| Battery Type | CR2032 (NOT INCLUDE) |
| Battery Life | N/A |
| Waterproof | IP67 |
| Fogproof | Filled Nitrogen |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 277 mm / 10.9 in |
| Weight | 525 g / 18.5 oz |
| Items in the Package | One Pair of 30mm Picatinny Low Rings, Power Ring Lever Mount, Spare Exposed Turret, Flip-up Caps and Cleaning Cloth, etc. |

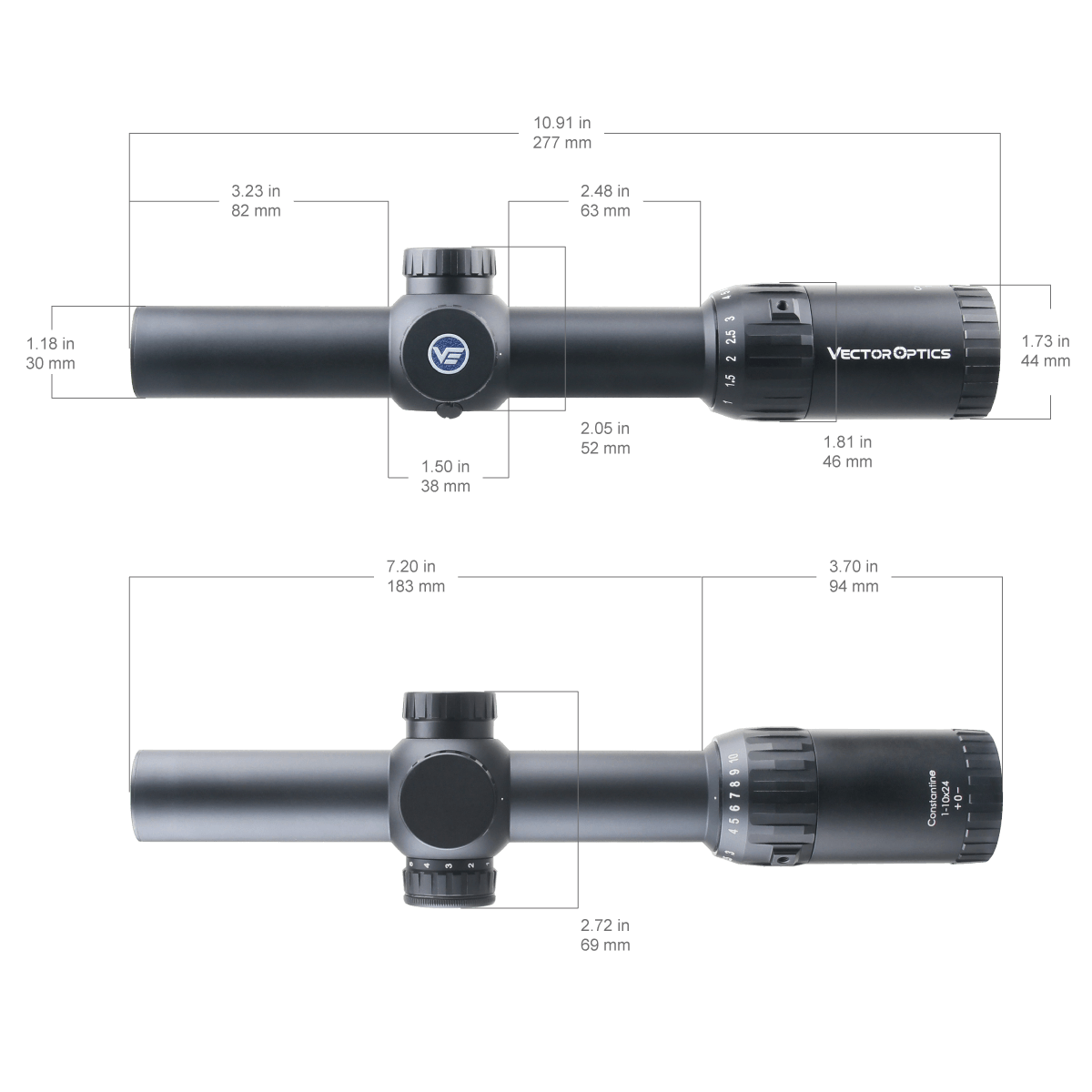

SIZE

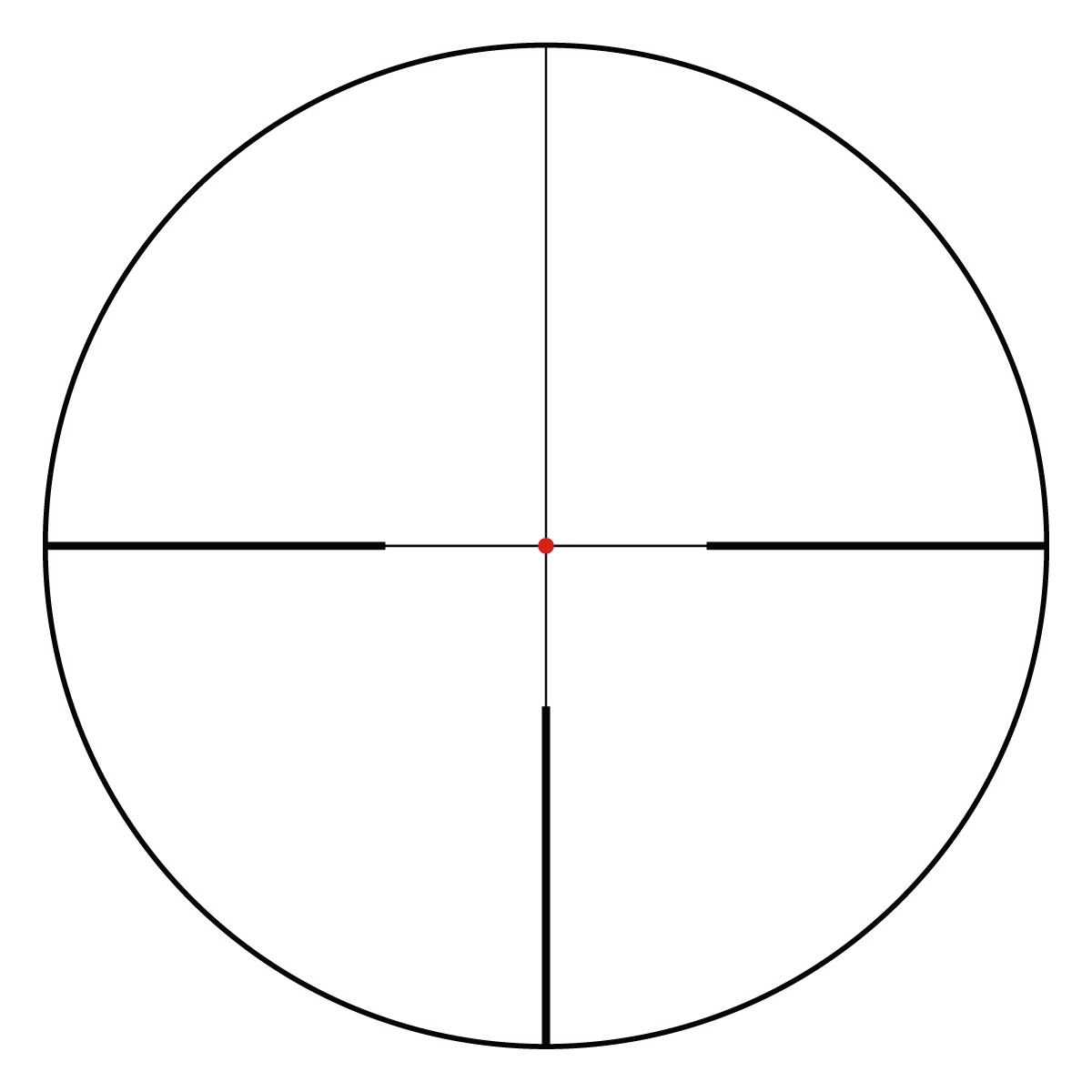

RETICLE
