· Super Slim Edge-to-Edge Image, Crystal Clear Optics, 1/10MIL Adjustment with Turret Lock Feature.
· WDL Reticle Used at 10x Power, Custom Designed Patent Reticle Exclusive for Air Guns & Firearms.
· Long Eye Relief, Black Matte, Side Focus Min at 10 Yards, Big Side Wheel, Power Ring Lever Mount.
| Magnification | 3-12x |
| Objective Lens Dia | 35 mm / 1.4 in |
| Focal Plane | Second Focal Plane |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 12.0-3.33 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 45.4-1.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 15.14-0.53 m @ 100 meters |
| Angular Field of View | 8.68-0.30 ° |
| Reticle | MDL wire reticle |
| Tube Dia | 30 mm |
| Parallax Setting | 10 yards to infinity |

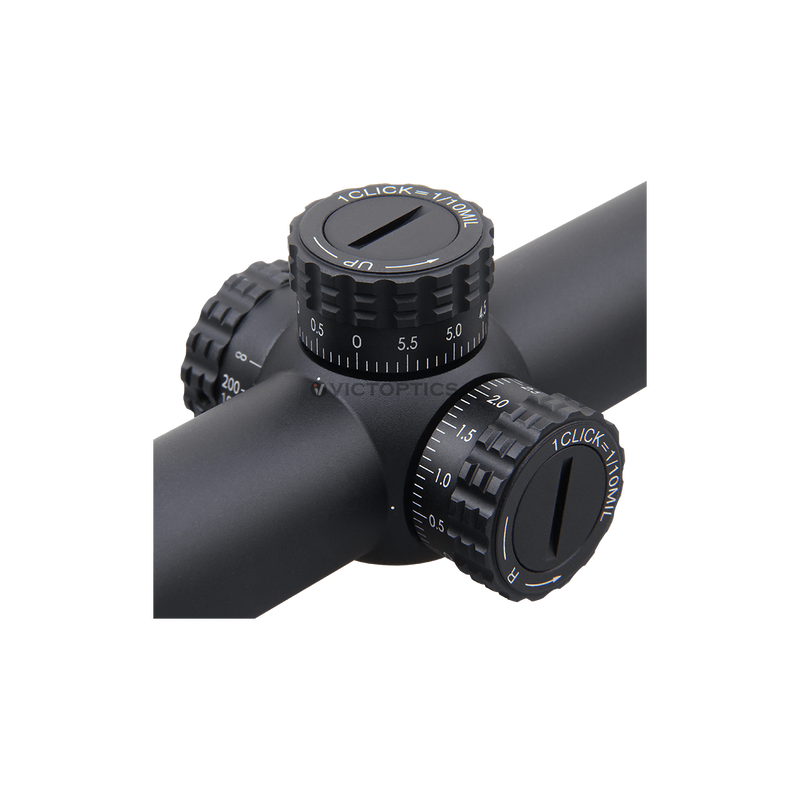

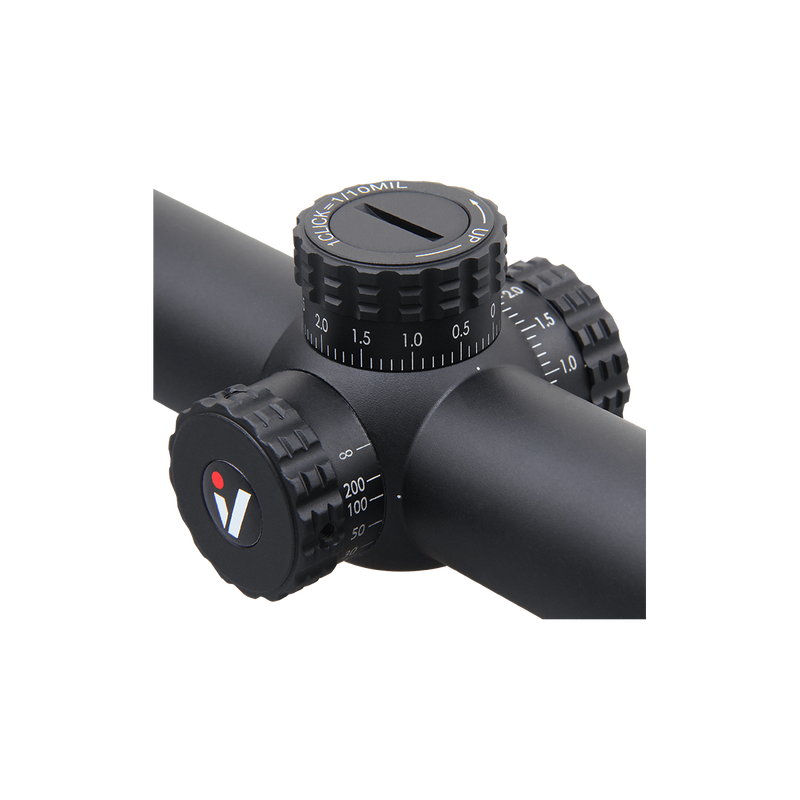

| Click Value | 1/10 MIL |

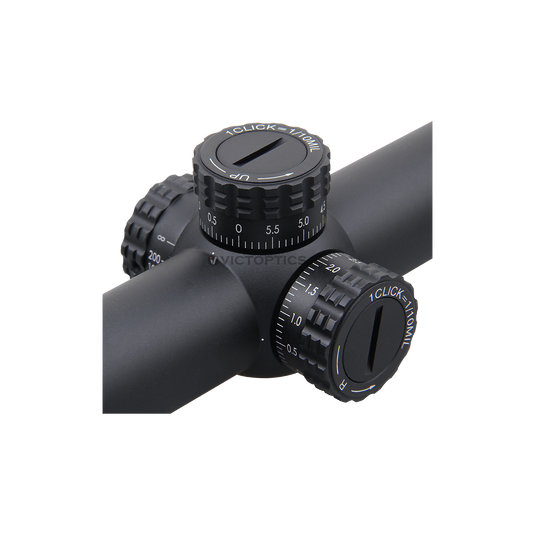

| Turret Function | Turret Lock |
| Elevation Adjustment Range | 18 MIL |
| Windage Adjustment Range | 18 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type(NOT INCLUDE) | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 347 mm / 13.7 in |
| Weight (net) | 500 g / 17.6 oz |
| Items in the Package | One Pair of 30mm Weaver Scope Rings, Big Side Wheel, Cleaning Cloth, Instruction, Lens Flip-up Caps and Packed in Nice Retail Box |
FEATURE
· Super Slim Edge-to-Edge Image, Crystal Clear Optics, 1/10MIL Adjustment with Turret Lock Feature.
· WDL Reticle Used at 10x Power, Custom Designed Patent Reticle Exclusive for Air Guns & Firearms.
· Long Eye Relief, Black Matte, Side Focus Min at 10 Yards, Big Side Wheel, Power Ring Lever Mount.
SPECIFICATION
| Magnification | 3-12x |
| Objective Lens Dia | 35 mm / 1.4 in |
| Focal Plane | Second Focal Plane |
| Eye Relief | 96 mm / 3.8 in |
| Exit Pupil | 12.0-3.33 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 45.4-1.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 15.14-0.53 m @ 100 meters |
| Angular Field of View | 8.68-0.30 ° |
| Reticle | MDL wire reticle |
| Tube Dia | 30 mm |
| Parallax Setting | 10 yards to infinity |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 18 MIL |
| Windage Adjustment Range | 18 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type(NOT INCLUDE) | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 347 mm / 13.7 in |
| Weight (net) | 500 g / 17.6 oz |
| Items in the Package | One Pair of 30mm Weaver Scope Rings, Big Side Wheel, Cleaning Cloth, Instruction, Lens Flip-up Caps and Packed in Nice Retail Box |
SIZE

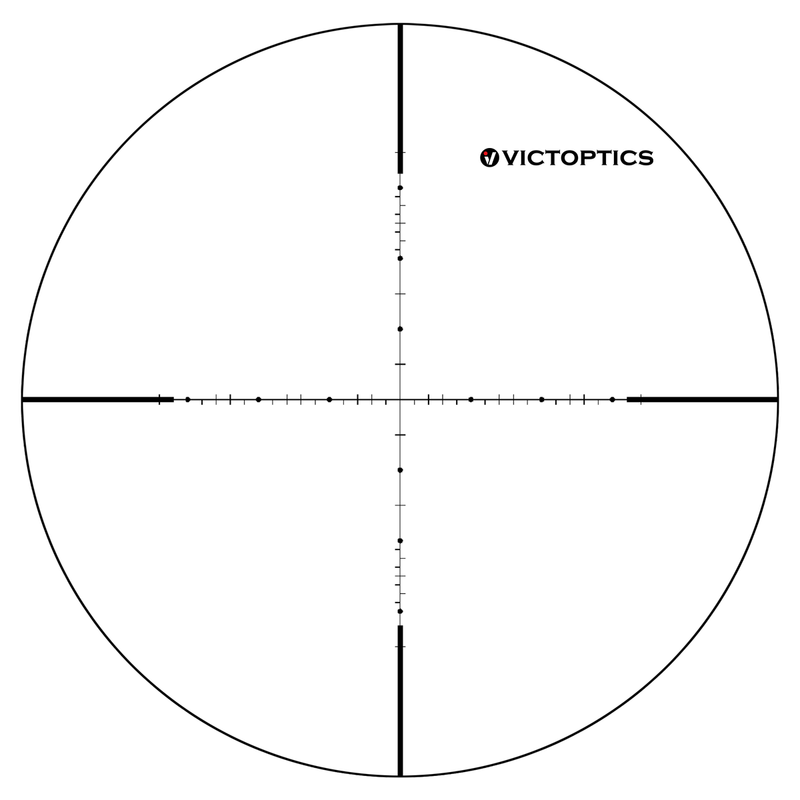

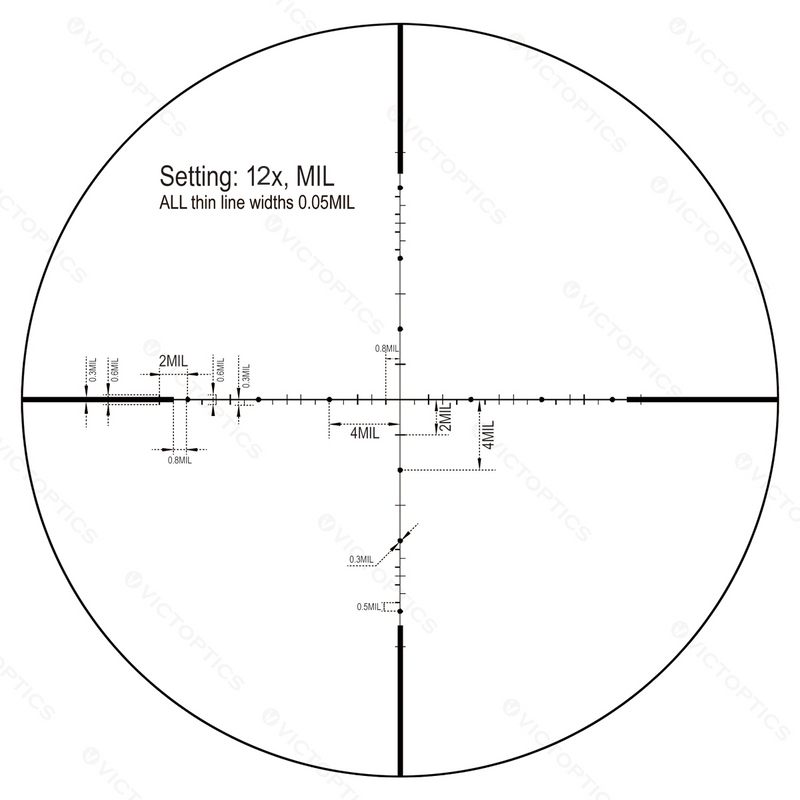

RETICLE
