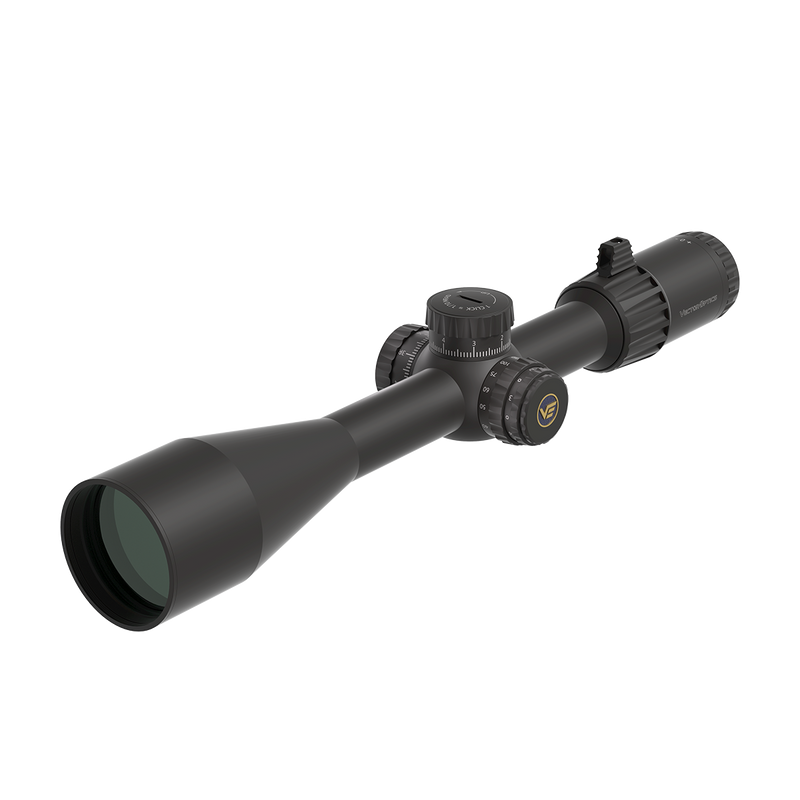

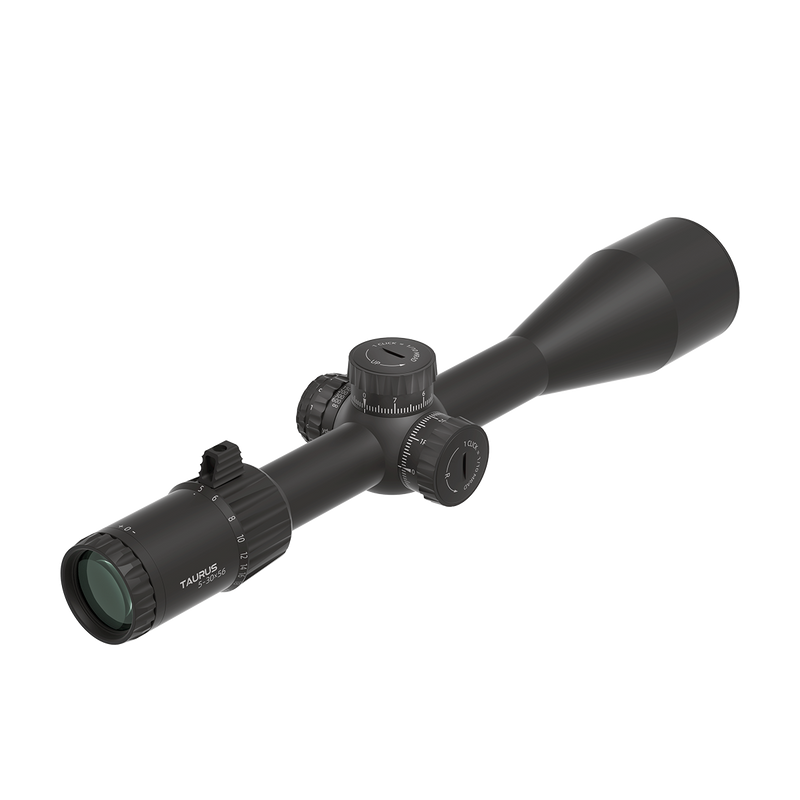

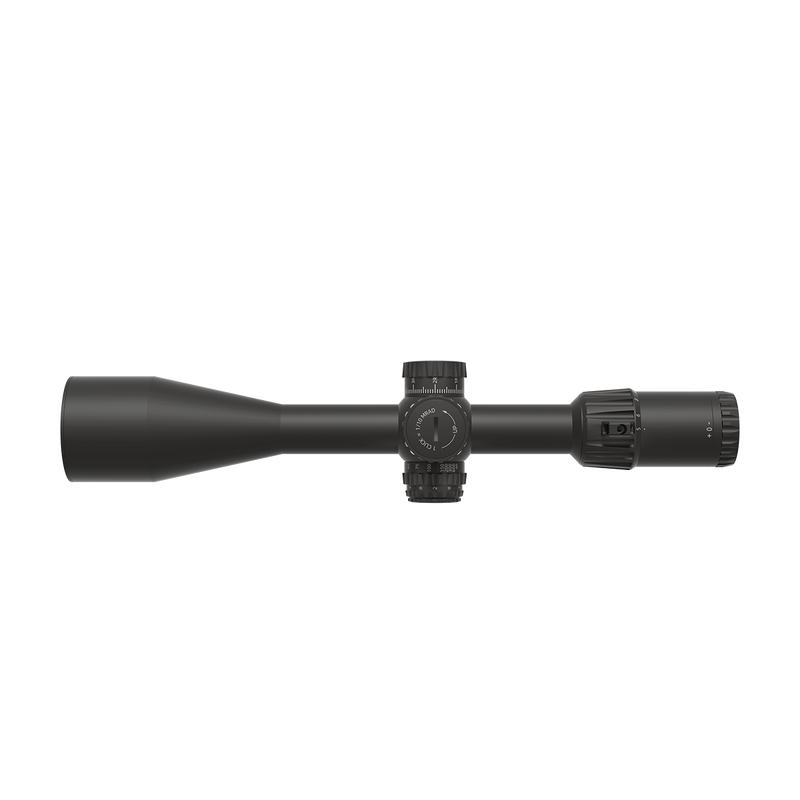

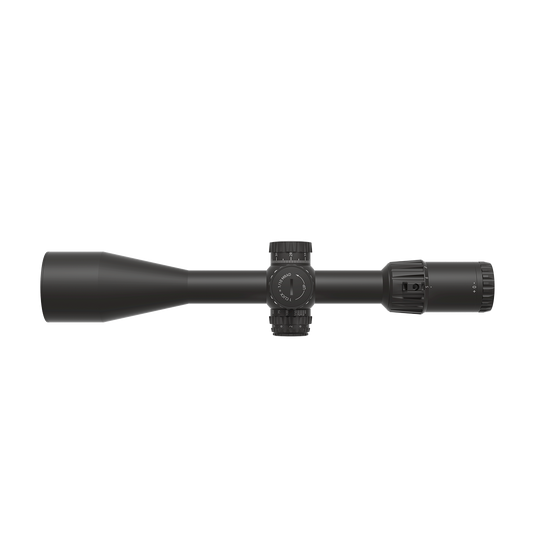

· FFP MPX1 Reticle Design for Long-Range Shooting and Varmint Hunting, 0.1 MIL Center Dot for Precise Aiming

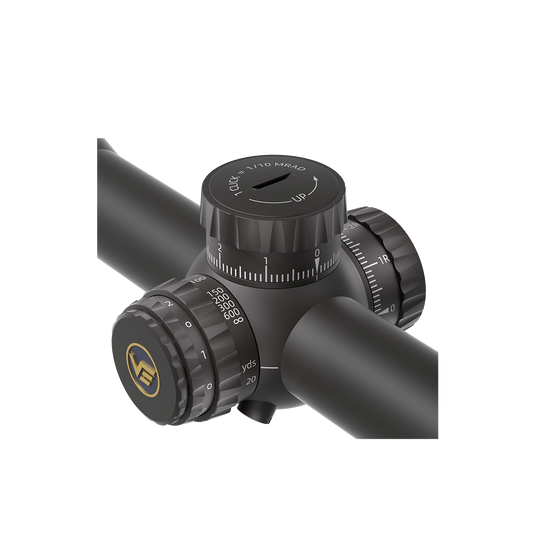

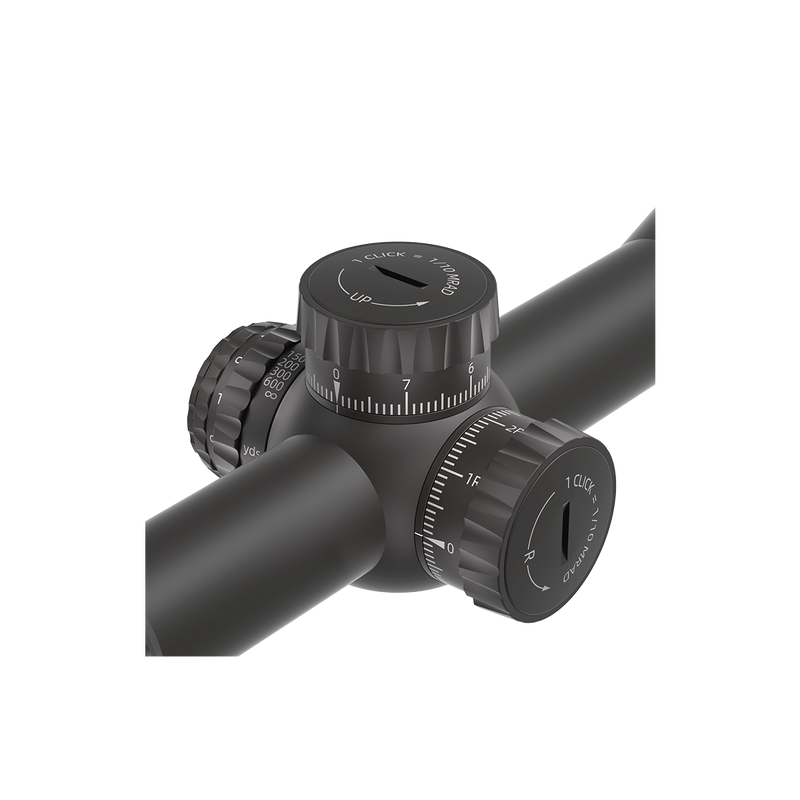

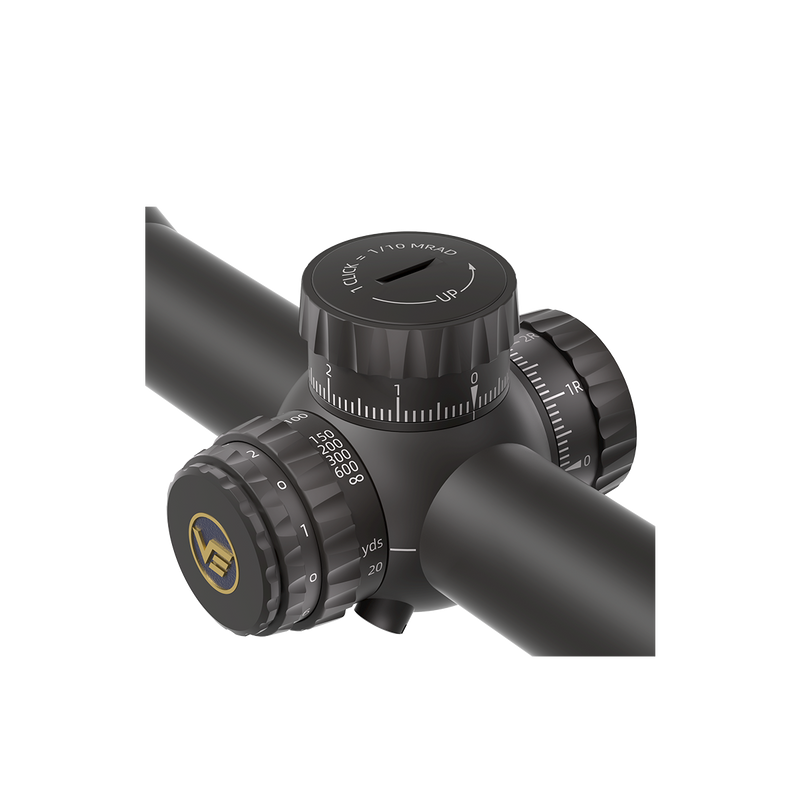

· Zero Stop Return Effortlessly to a Pre-Set Zero Point, Turret Lock Adjustment Prevents Unwanted Adjustment
· 30mm Tube Dia Enhances Elevation Adjustment Range to 17.5 MIL, 1/10 MIL Click Value for Precise Adjustment
| Magnification | 5-30x |
| Objective Lens Dia | 56 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 95 mm / 3.74 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 20.4-3.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 6.8-1.2 m @ 100 meters |
| Angular Field of View | 3.89-0.68 ° |
| Reticle | MPX1 |
| Tube Dia | 30 mm |
| Side Focus | 20 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | >17.5 MIL |
| Windage Adjustment Range | >16 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 394.5 mm / 15.5 in |
| Weight | 924 g / 32.5 oz |

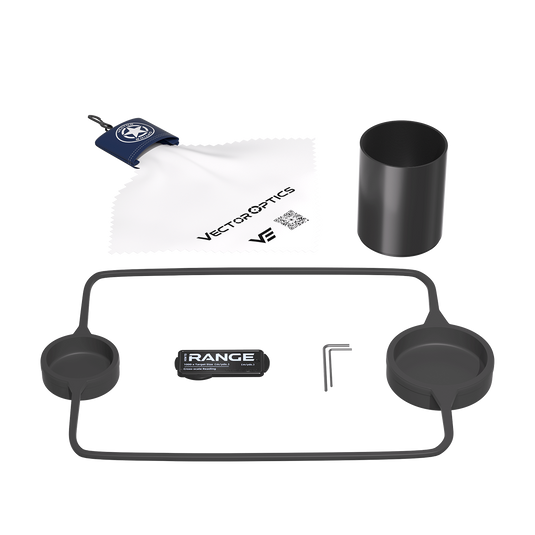

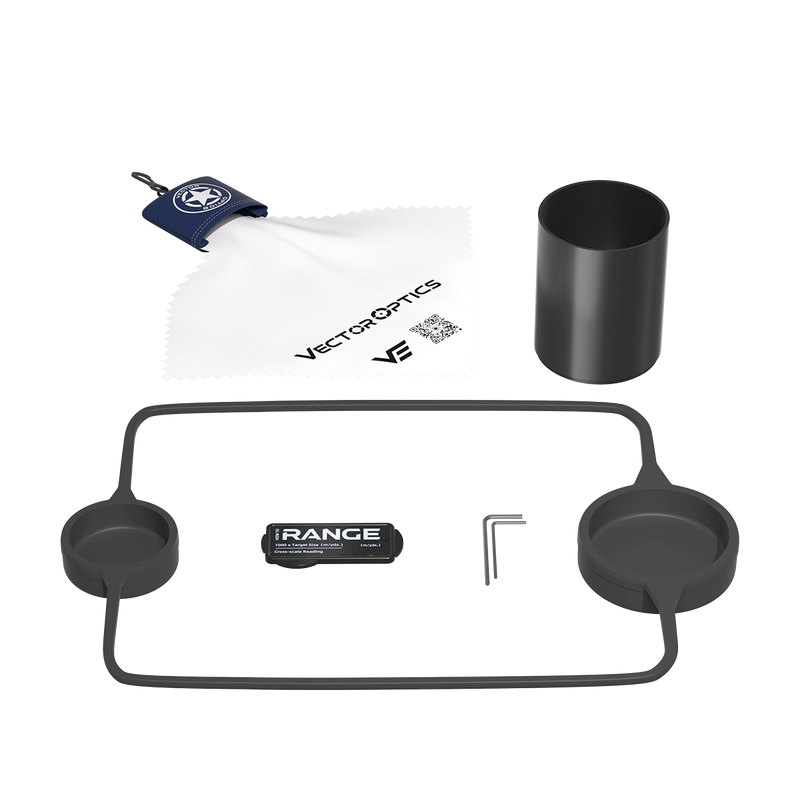

| Items in the Package | User Manual, Cleaning Cloth, Plastic Wrench, Rubber Lens Cover, Sunshade, Power Throw Lever, Hex Keys, etc. |
FEATURE
· FFP MPX1 Reticle Design for Long-Range Shooting and Varmint Hunting, 0.1 MIL Center Dot for Precise Aiming
· Zero Stop Return Effortlessly to a Pre-Set Zero Point, Turret Lock Adjustment Prevents Unwanted Adjustment
· 30mm Tube Dia Enhances Elevation Adjustment Range to 17.5 MIL, 1/10 MIL Click Value for Precise Adjustment
SPECIFICATION
| Magnification | 5-30x |
| Objective Lens Dia | 56 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 95 mm / 3.74 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 20.4-3.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 6.8-1.2 m @ 100 meters |
| Angular Field of View | 3.89-0.68 ° |
| Reticle | MPX1 |
| Tube Dia | 30 mm |
| Side Focus | 20 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | >17.5 MIL |
| Windage Adjustment Range | >16 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears, On/Off Switch |
| Battery Type | CR2032 |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 394.5 mm / 15.5 in |
| Weight | 924 g / 32.5 oz |
| Items in the Package | User Manual, Cleaning Cloth, Plastic Wrench, Rubber Lens Cover, Sunshade, Power Throw Lever, Hex Keys, etc. |
SIZE

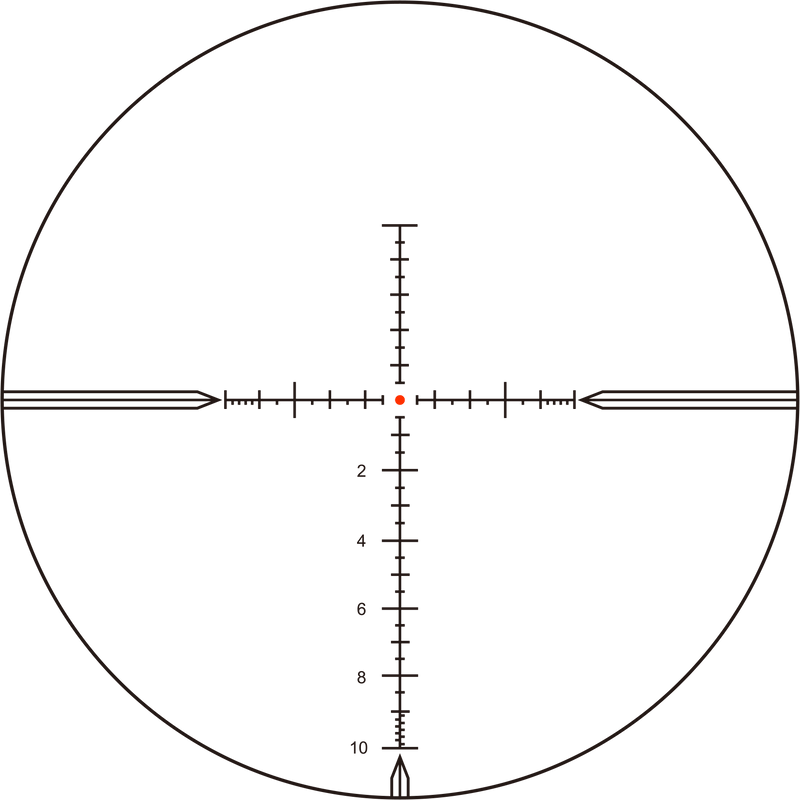

RETICLE
DOWNLOAD
