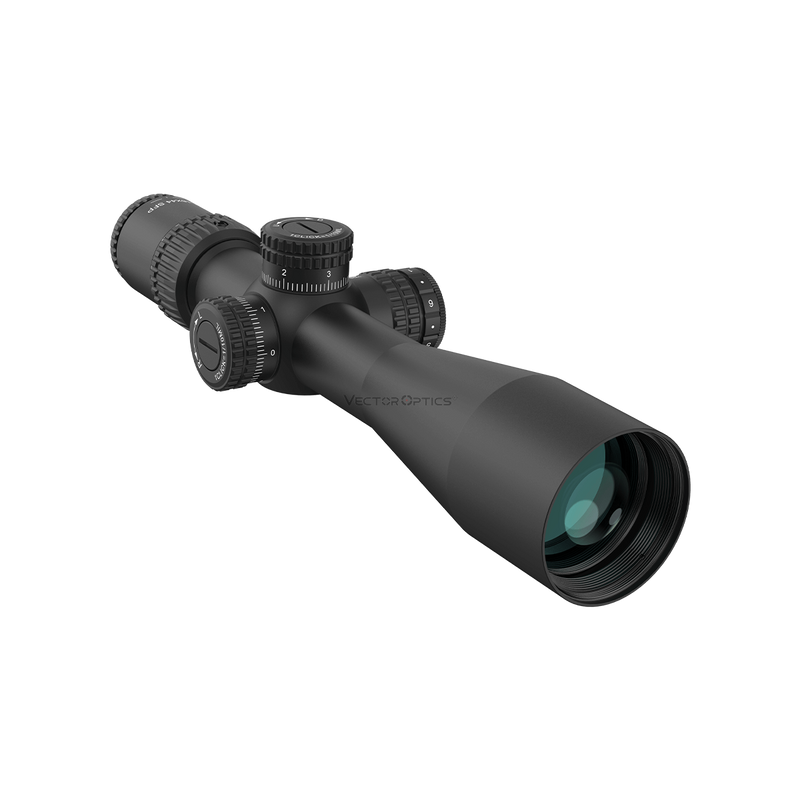

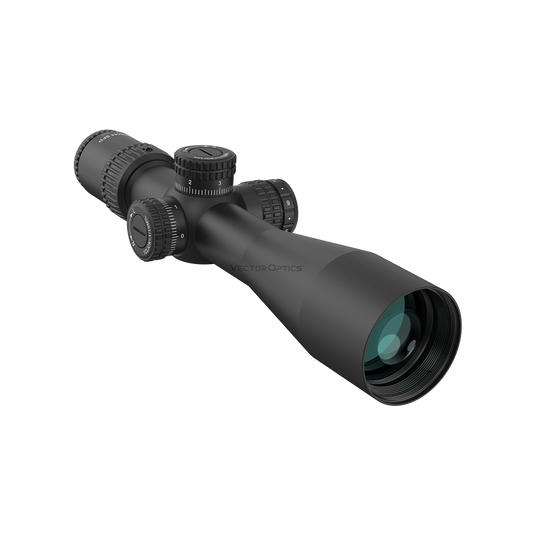

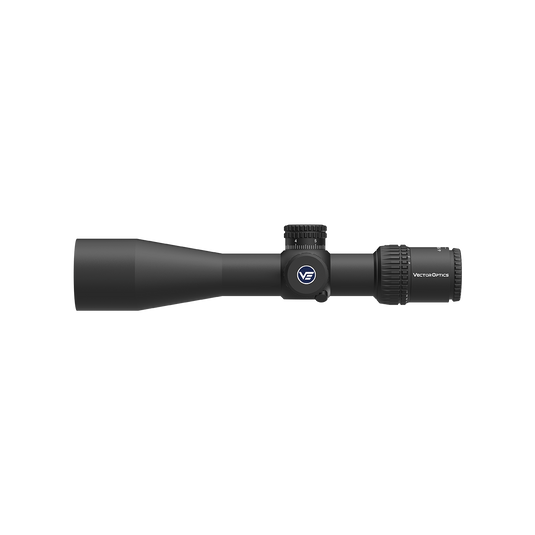

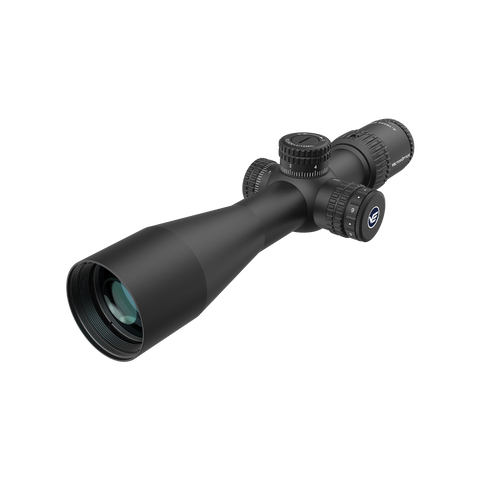

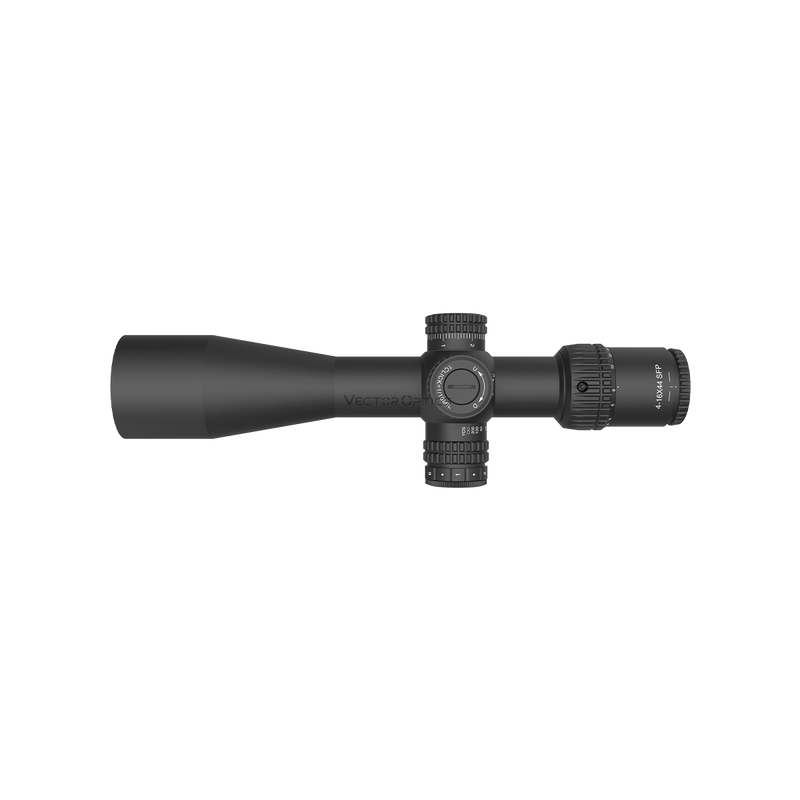

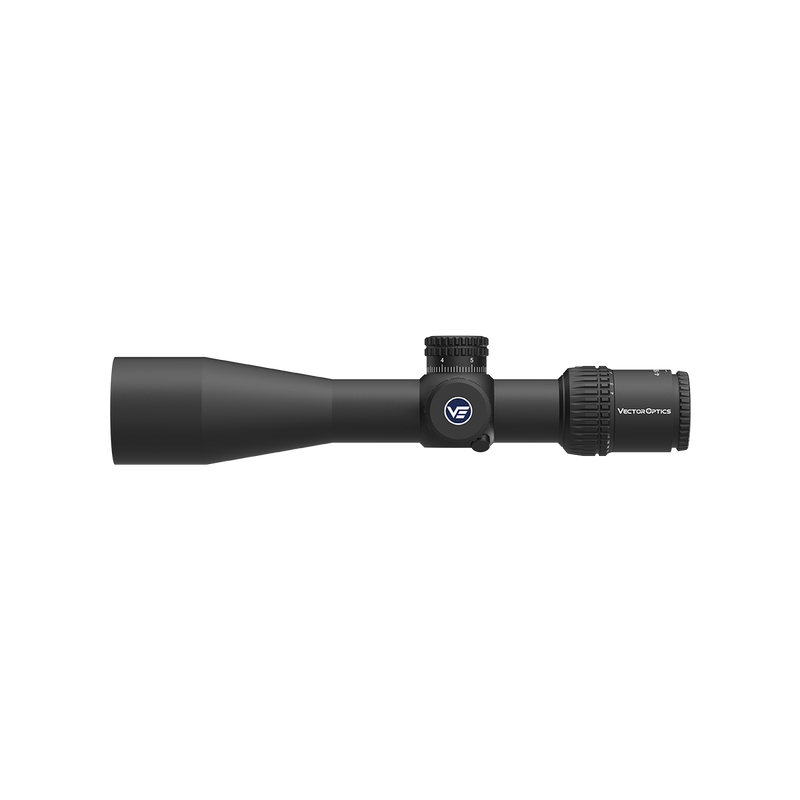

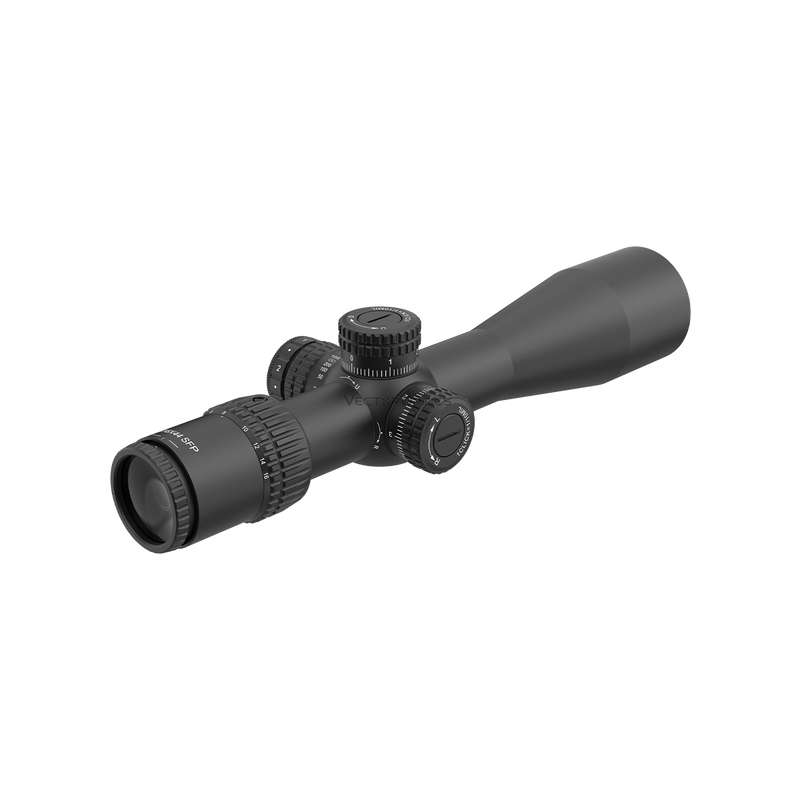

· 30mm Monotube, Ultra Short 268mm 10.5in, 1/10MIL 1cm Adjust With Turret Lock System.
· Fully Multi Coated, Side Focus Min @ 10 Yds, Long Eye Relief, Six Gear Red Illumination.
· Center Dot Illuminated Etched Glass Reticle, w/ Honeycomb Sunshade, Flip Up Caps.
· A Must for Your Compact Air Guns and Light Weight Firearms, The Shortest Marksman Scope for You..
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | SFP |
| Eye Relief | 90-85 mm / 3.5-3.4 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 26.2-6.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.7-2.2 m @ 100 meters |
| Reticle | MPR-V10 |
| Side Focus | 10 Yards to Infinity |
| Tube Dia | 30 mm Monotube |
| Click Value | 1/10 MIL |

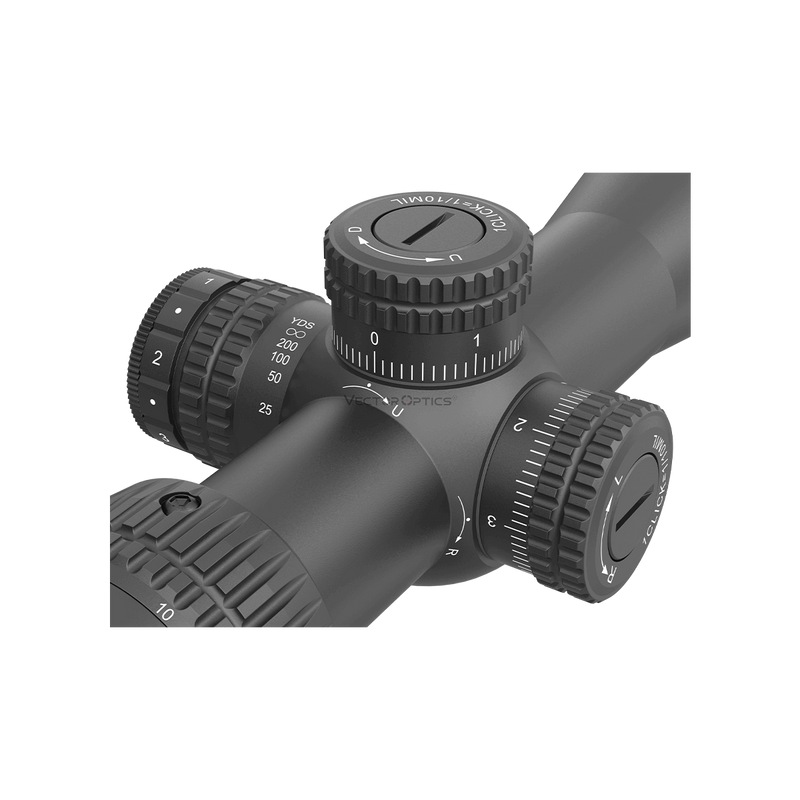

| Turret Function | Turret Lock & Zero Re-set |
| Elevation Adjustment Range | 22 MIL |
| Windage Adjustment Range | 17.5 MIL |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 (NOT INCLUDE) |
| Waterproof | IPX4 |
| Fogproof | Filled Nitrogen |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 268 mm / 10.5 in |
| Weight | 555 g / 19.6 oz |

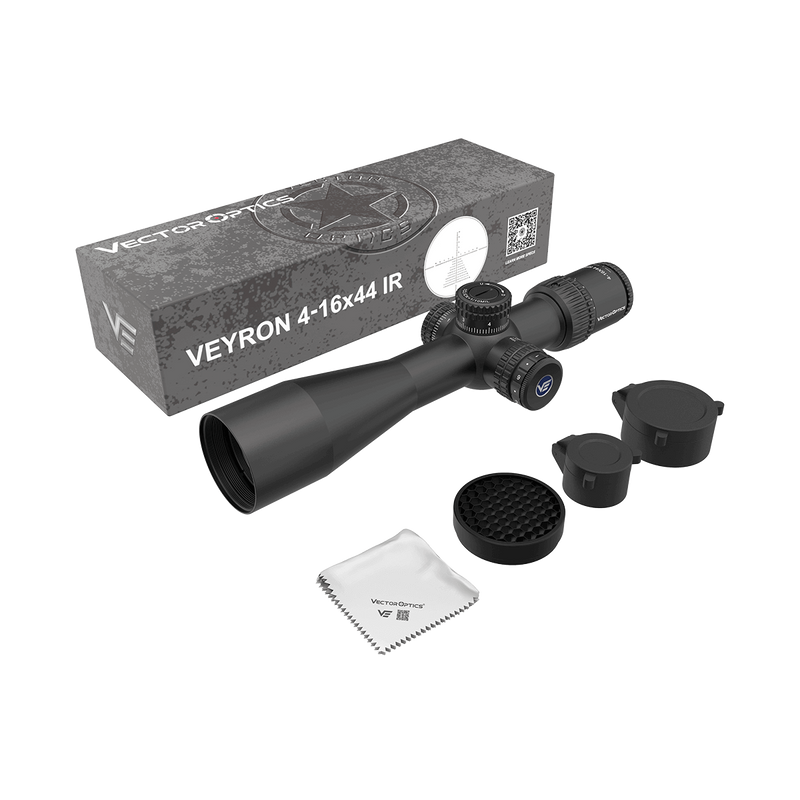

| Items in the Package | One Pair of 30 mm Weaver Scope Rings, Flip-up Caps, Honeycomb Sunshade, Cleaning Cloth, etc. |
FEATURE
· 30mm Monotube, Ultra Short 268mm 10.5in, 1/10MIL 1cm Adjust With Turret Lock System.
· Fully Multi Coated, Side Focus Min @ 10 Yds, Long Eye Relief, Six Gear Red Illumination.
· Center Dot Illuminated Etched Glass Reticle, w/ Honeycomb Sunshade, Flip Up Caps.
· A Must for Your Compact Air Guns and Light Weight Firearms, The Shortest Marksman Scope for You..
SPECIFICATION
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | SFP |
| Eye Relief | 90-85 mm / 3.5-3.4 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 26.2-6.6 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.7-2.2 m @ 100 meters |
| Reticle | MPR-V10 |
| Side Focus | 10 Yards to Infinity |
| Tube Dia | 30 mm Monotube |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock & Zero Re-set |
| Elevation Adjustment Range | 22 MIL |
| Windage Adjustment Range | 17.5 MIL |
| Diopter Compensation | +2 to -2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 (NOT INCLUDE) |
| Waterproof | IPX4 |
| Fogproof | Filled Nitrogen |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 268 mm / 10.5 in |
| Weight | 555 g / 19.6 oz |
| Items in the Package | One Pair of 30 mm Weaver Scope Rings, Flip-up Caps, Honeycomb Sunshade, Cleaning Cloth, etc. |
SIZE
RETICLE
DOWNLOAD
