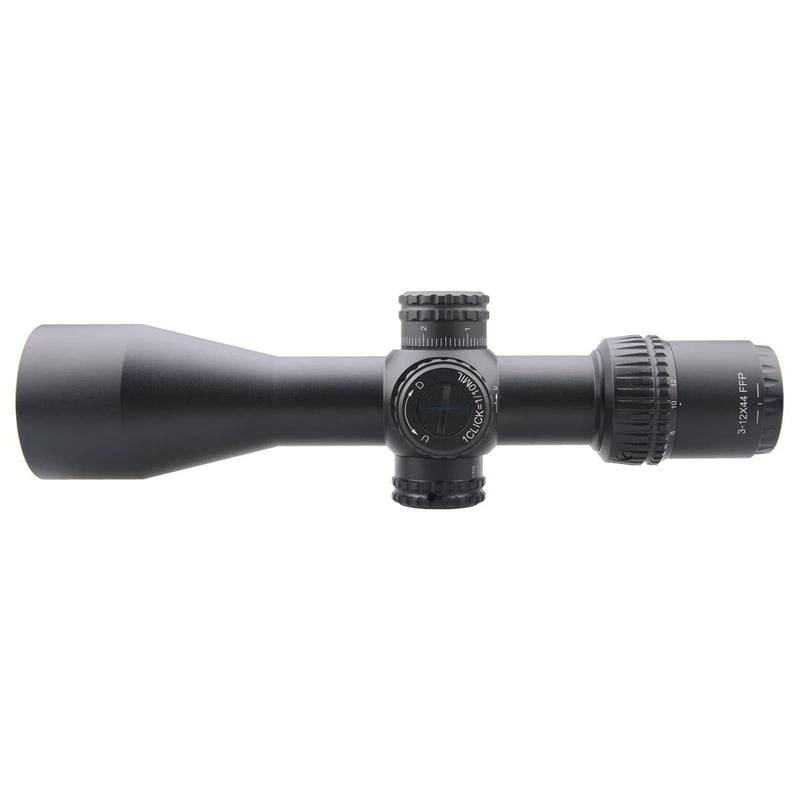

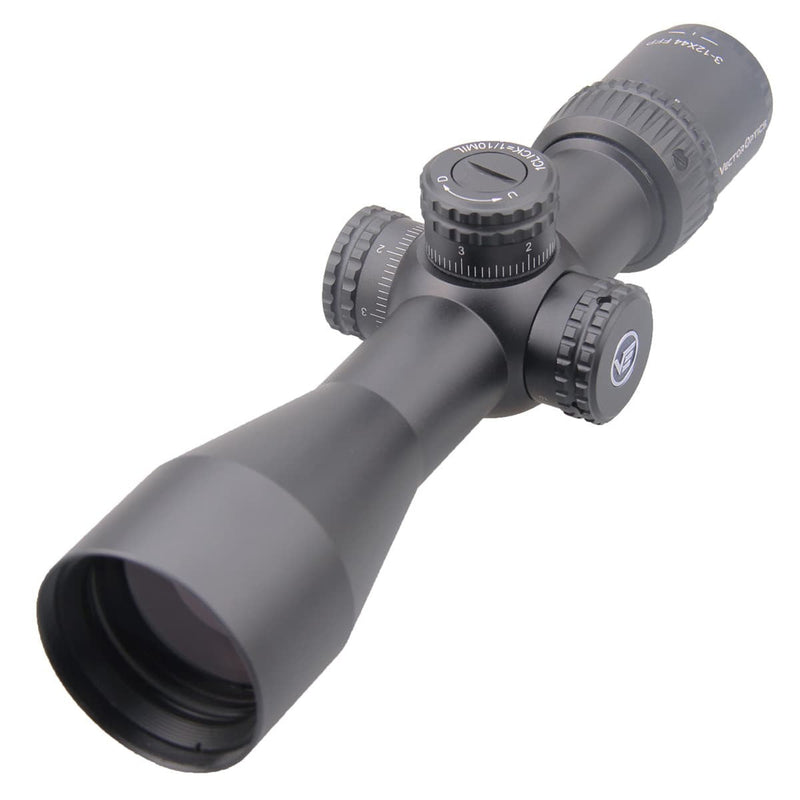

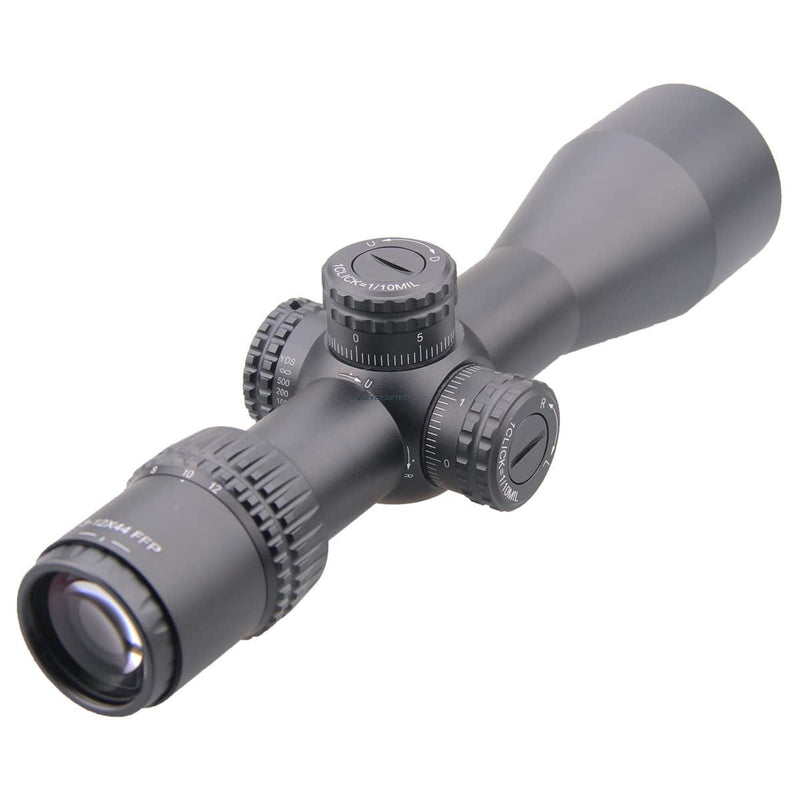

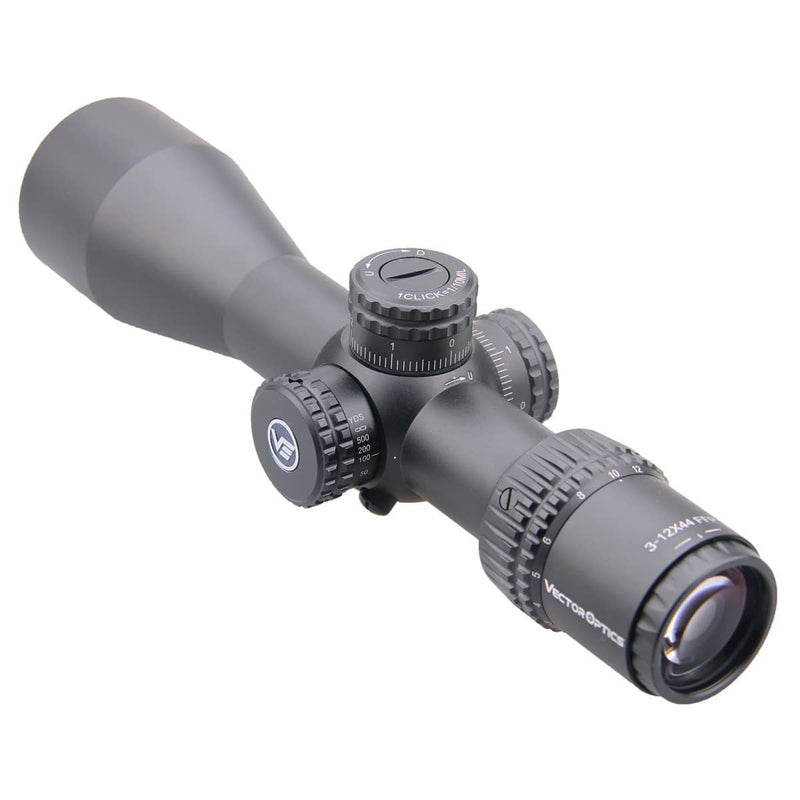

· 30mm Monotube, First Focal Plane, Ultra Short 245mm 9.7in, 4in Long Eye Relief, Fully Multi Coated.

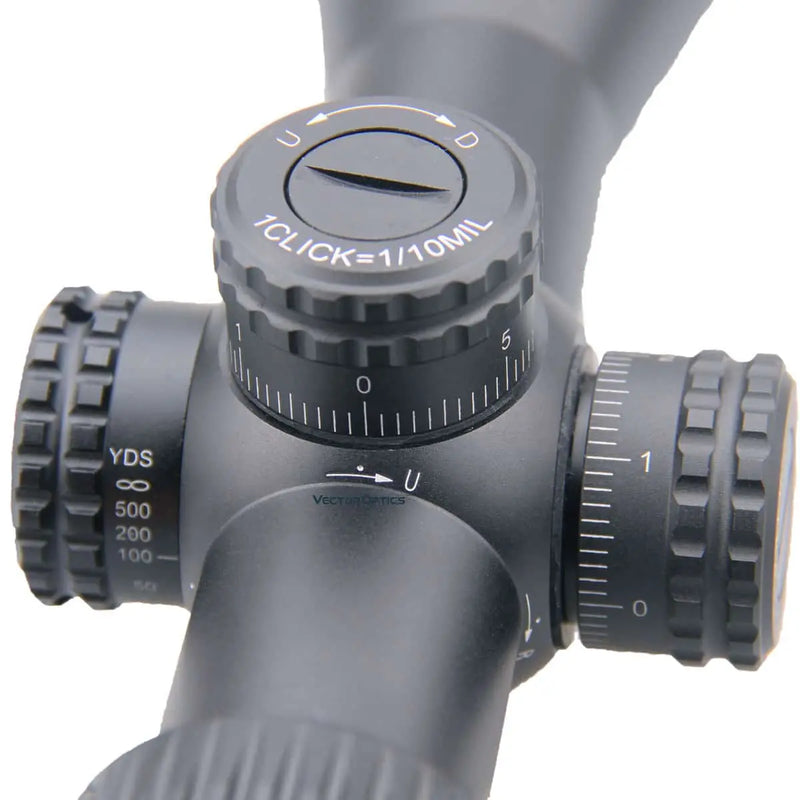

· 1/10 1cm MIL Adjust Turret Lock Feature, Side Focus Min @ 10 Yds, Honeycomb Sunshade, Flip Up Caps.
· A Must for Your Compact Air Guns and Light Weight Firearms, The Shortest Marksman Scope for You.
| Magnification | 3-12x |
| Objective Lens Dia | 44 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 35.1-8.7 ft @ 100 yards |
| Linear Field of View @ 100 m | 11.7-2.9 m @ 100 meters |
| Angular Field of View | 6.7-1.7° |

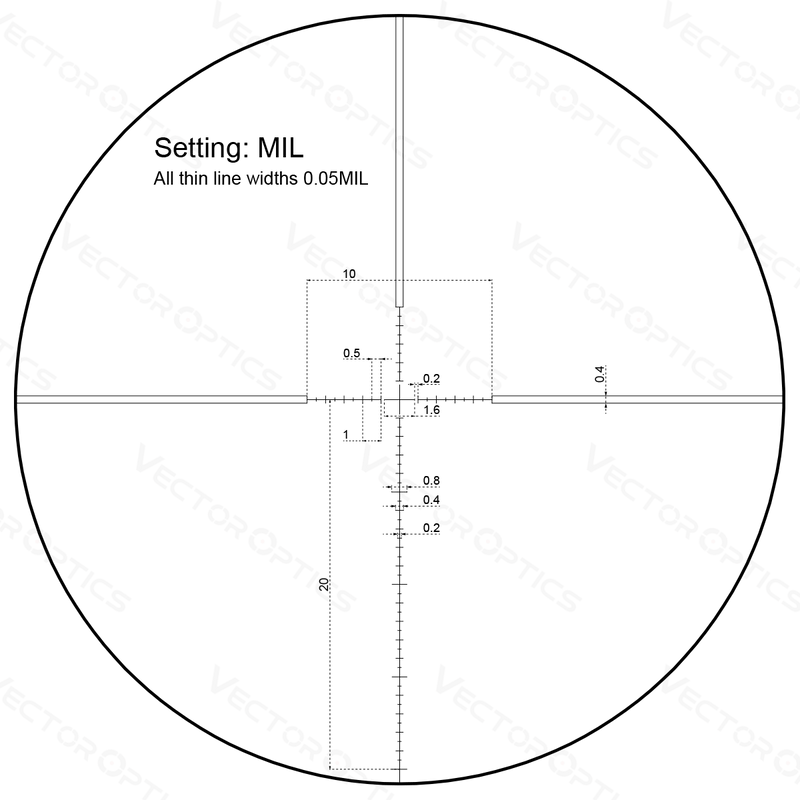

| Reticle | MPR-4 |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |

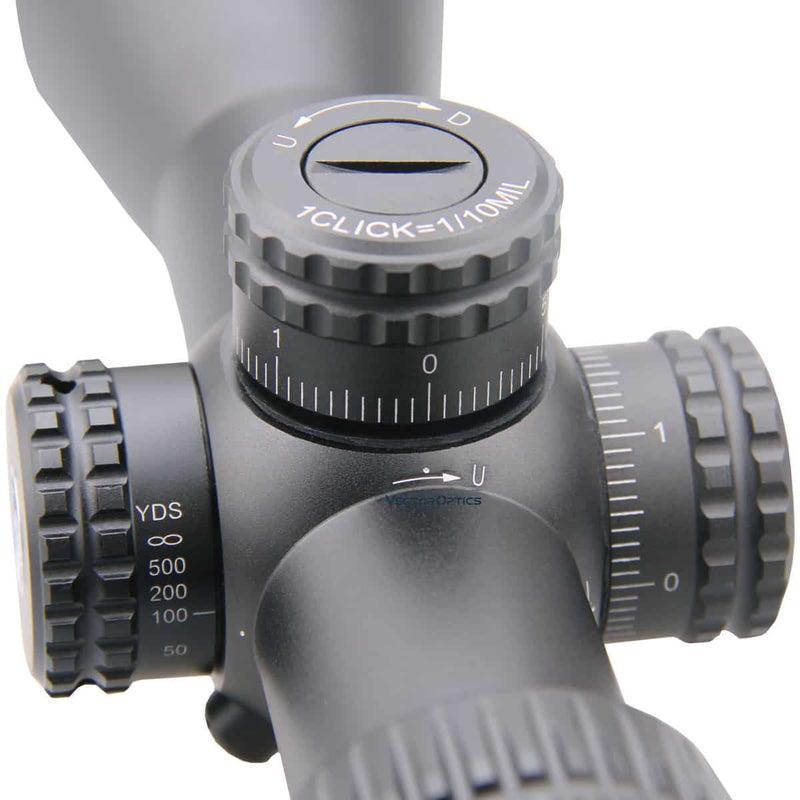

| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 30 MIL |
| Windage Adjustment Range | 17.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | N/A |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 241 mm / 9.5 in |
| Weight | 500 g / 17.6 oz |

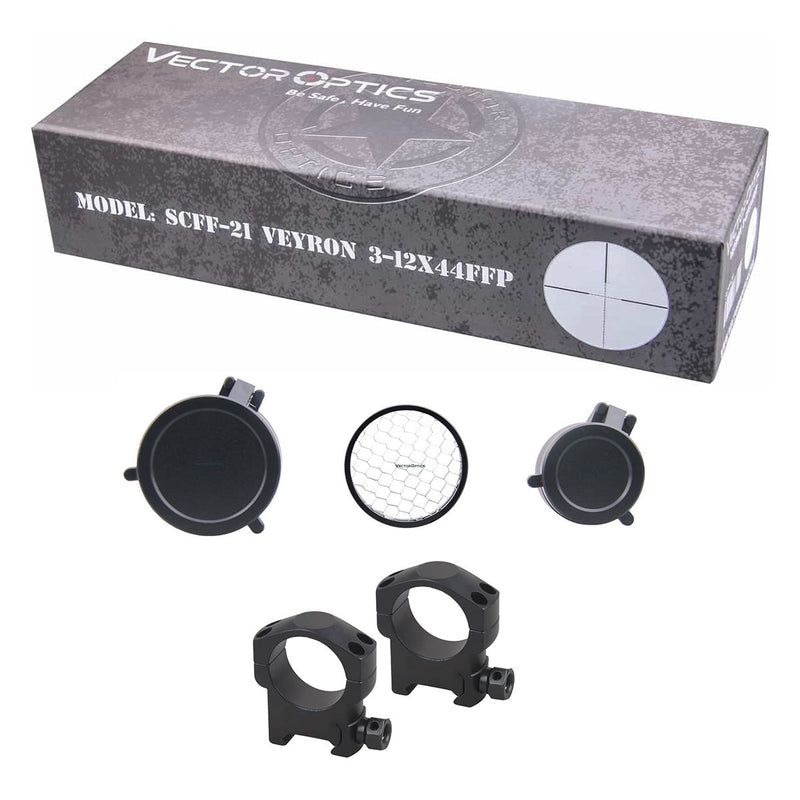

| Items in the Package | One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Honeycomb Sunshade |
FEATURE
· 30mm Monotube, First Focal Plane, Ultra Short 245mm 9.7in, 4in Long Eye Relief, Fully Multi Coated.
· 1/10 1cm MIL Adjust Turret Lock Feature, Side Focus Min @ 10 Yds, Honeycomb Sunshade, Flip Up Caps.
· A Must for Your Compact Air Guns and Light Weight Firearms, The Shortest Marksman Scope for You.
SPECIFICATION
| Magnification | 3-12x |
| Objective Lens Dia | 44 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 35.1-8.7 ft @ 100 yards |
| Linear Field of View @ 100 m | 11.7-2.9 m @ 100 meters |
| Angular Field of View | 6.7-1.7° |
| Reticle | MPR-4 |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 30 MIL |
| Windage Adjustment Range | 17.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | N/A |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 241 mm / 9.5 in |
| Weight | 500 g / 17.6 oz |
| Items in the Package | One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Honeycomb Sunshade |
SIZE

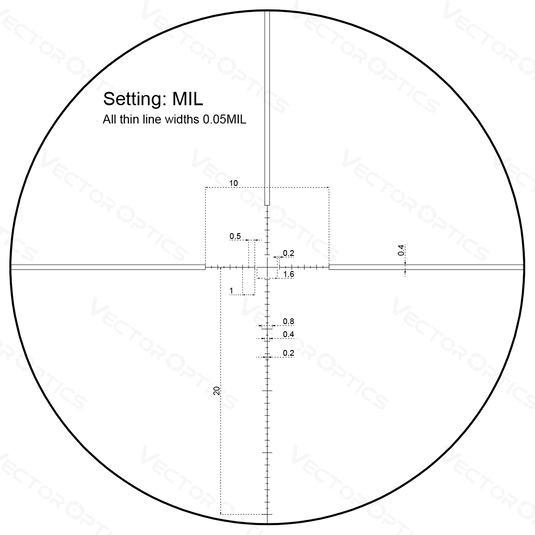

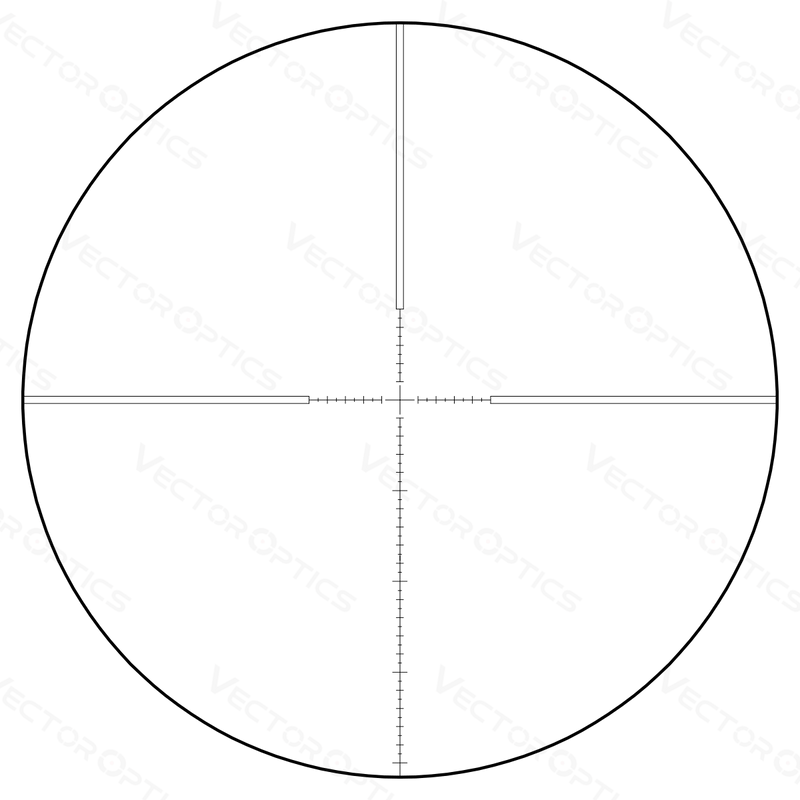

RETICLE
