· True 4x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around Image.
· 30mm Monotube Made of 6061 T6, VMD-2 Wire Reticle in MIL Specification.

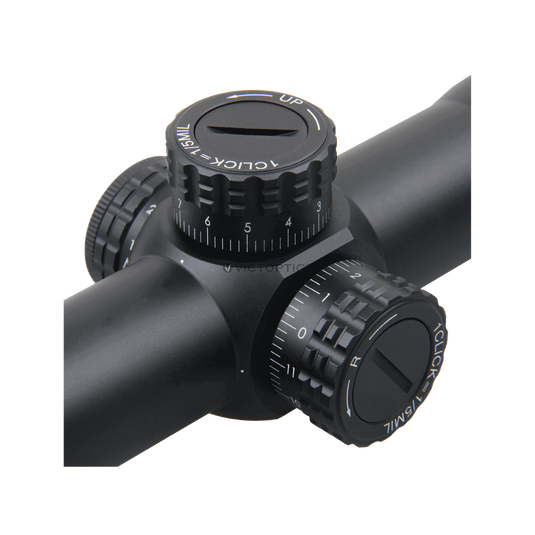

· 1/5 MIL Adjustment w/ Zero Reset & Turret Lock Features, w/ Power Ring Lever.
· FMC, Wide Field of View, 101mm 4.0in Long Eye Relief, Red & Green Illumination.
| Magnification | 1.5-6x |
| Objective Lens Dia | 28 mm |
| Focal Plane | |
| Eye Relief | 101 mm / 4.0 in |
| Exit Pupil | 10.7-4.0 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 72.8-18.8 ft @ 100 yards |
| Linear Field of View @ 100 m | 24.27-6.27 m @ 100 meters |
| Angular Field of View | 13.94-3.59° |
| Reticle | wire VMD-2 in mil specification |
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |
| Click Value | 1/5 MIL |
| Turret Function | Turret Lock & Zero Reset |
| Elevation Adjustment Range | >30 MIL |
| Windage Adjustment Range | >30 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 5 levels red & green |
| Battery Type(NOT INCLUDE) | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 250 mm / 9.8 in |
| Weight (Net) | 395 g / 13.9 oz |

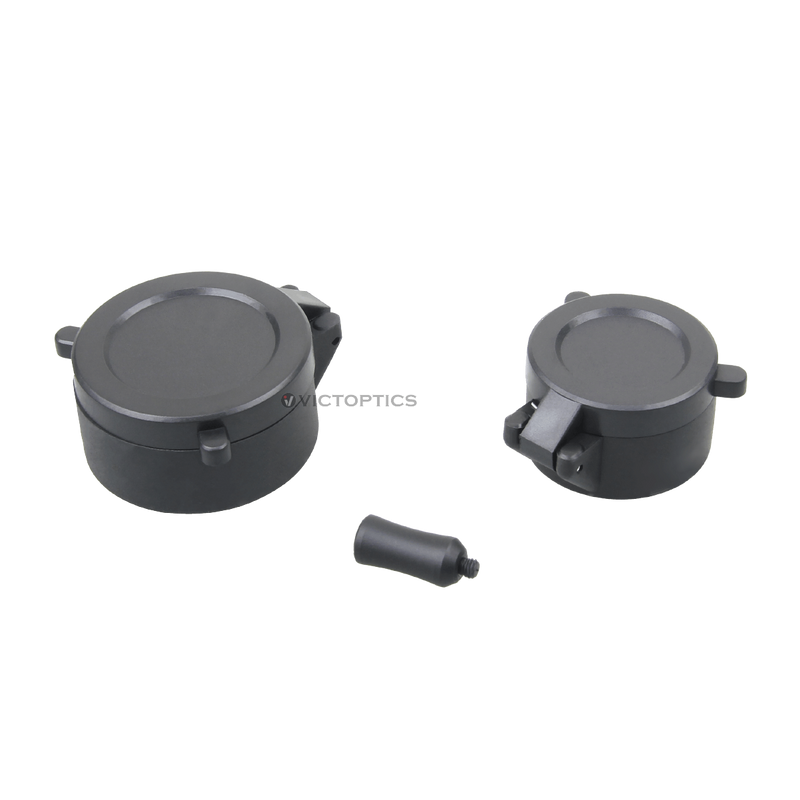

| Items in the Package | One Pair of Weaver Scope Rings, Power Ring Lever, Flip-up Caps and Cleaning Cloth , etc. |
FEATURE
· True 4x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around Image.
· 30mm Monotube Made of 6061 T6, VMD-2 Wire Reticle in MIL Specification.

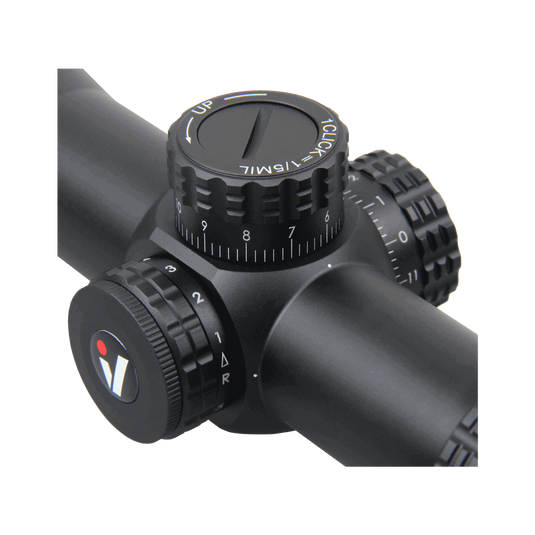

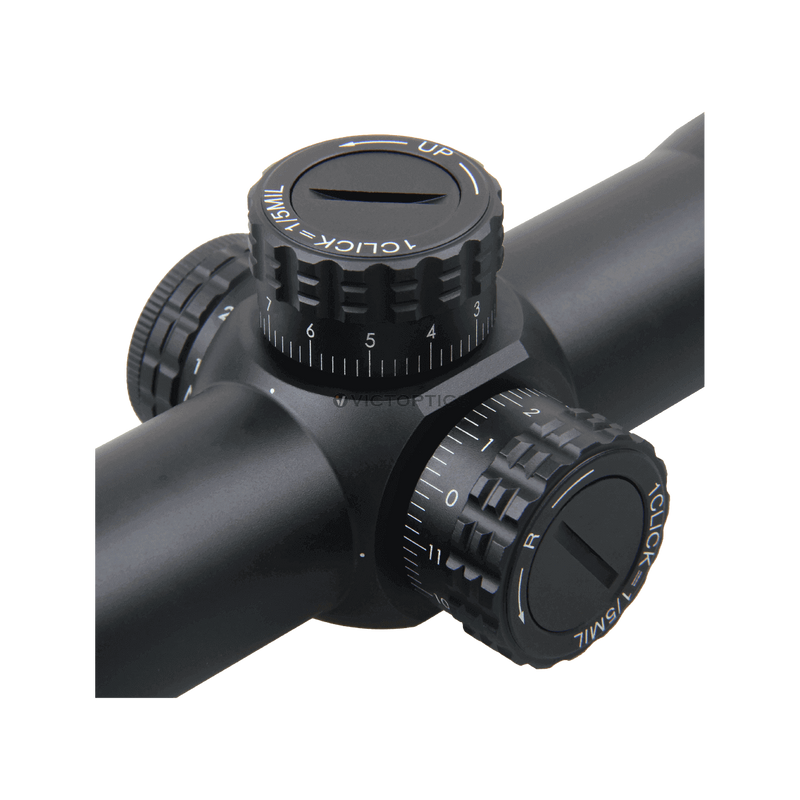

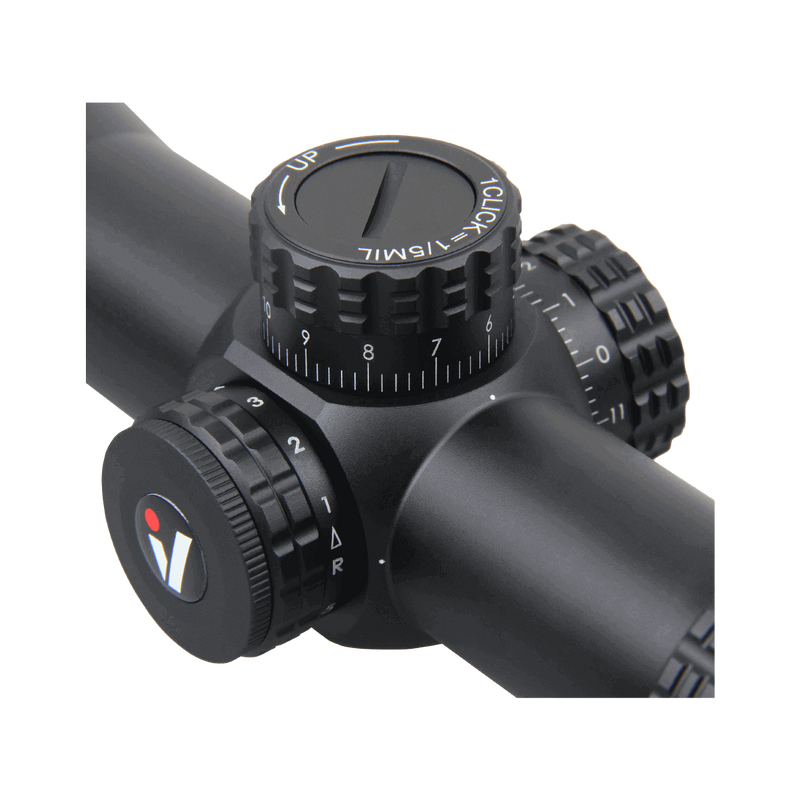

· 1/5 MIL Adjustment w/ Zero Reset & Turret Lock Features, w/ Power Ring Lever.
· FMC, Wide Field of View, 101mm 4.0in Long Eye Relief, Red & Green Illumination.
SPECIFICATION
| Magnification | 1.5-6x |
| Objective Lens Dia | 28 mm |
| Focal Plane | |
| Eye Relief | 101 mm / 4.0 in |
| Exit Pupil | 10.7-4.0 mm |
| Lens Coating | Fully multi-coated |
| Linear Field of View @ 100 yd | 72.8-18.8 ft @ 100 yards |
| Linear Field of View @ 100 m | 24.27-6.27 m @ 100 meters |
| Angular Field of View | 13.94-3.59° |
| Reticle | wire VMD-2 in mil specification |
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |
| Click Value | 1/5 MIL |
| Turret Function | Turret Lock & Zero Reset |
| Elevation Adjustment Range | >30 MIL |
| Windage Adjustment Range | >30 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 5 levels red & green |
| Battery Type(NOT INCLUDE) | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 250 mm / 9.8 in |
| Weight (Net) | 395 g / 13.9 oz |
| Items in the Package | One Pair of Weaver Scope Rings, Power Ring Lever, Flip-up Caps and Cleaning Cloth , etc. |
SIZE

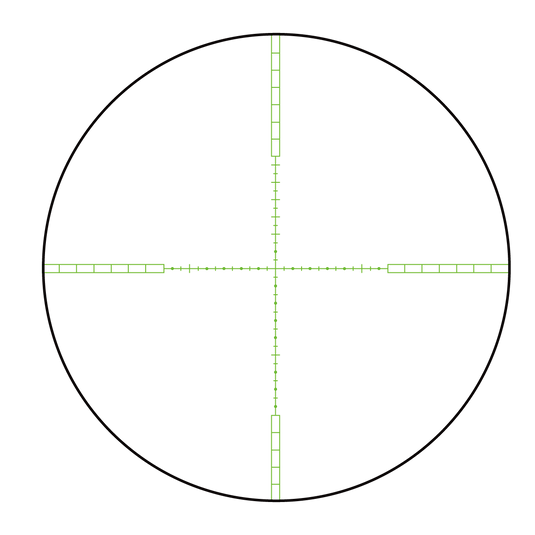

RETICLE
DOWNLOAD
