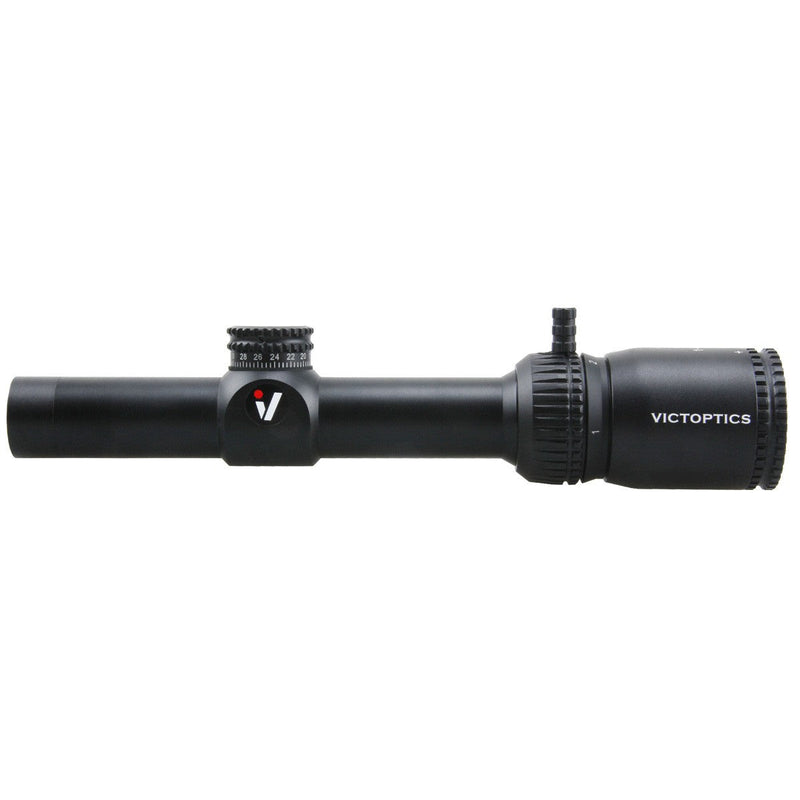

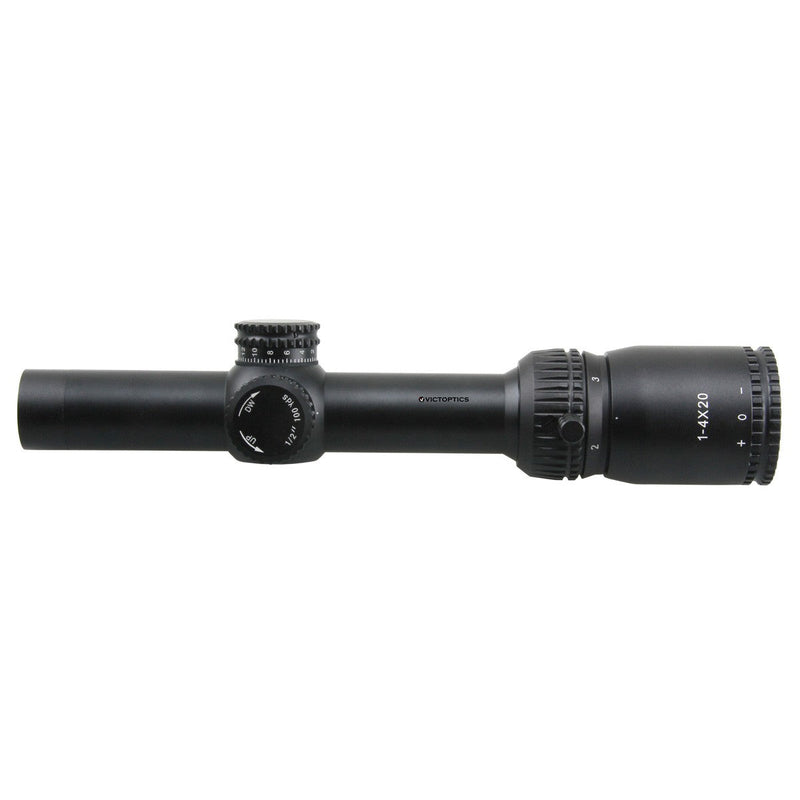

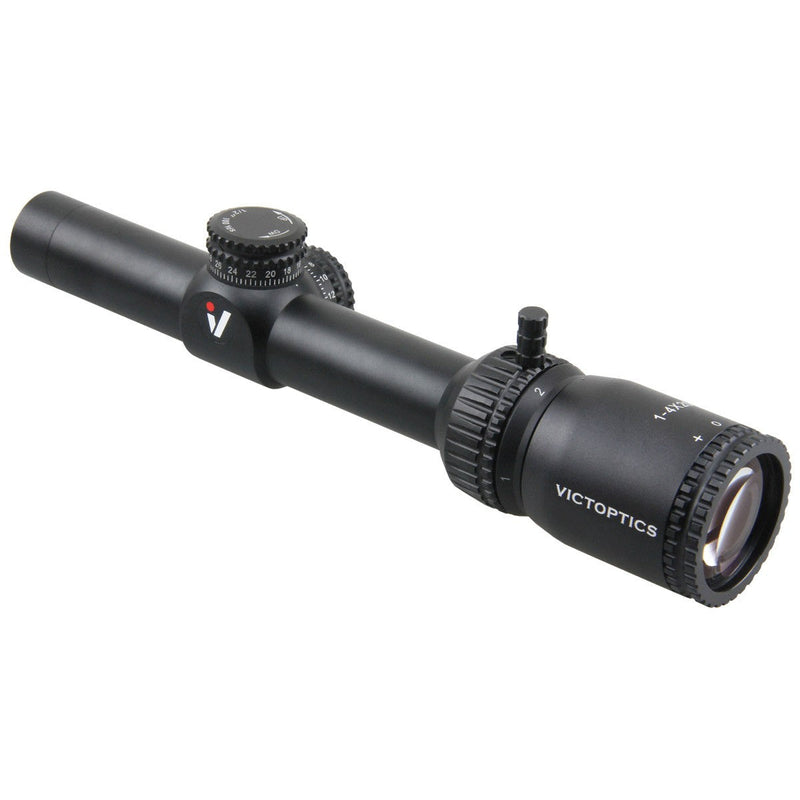

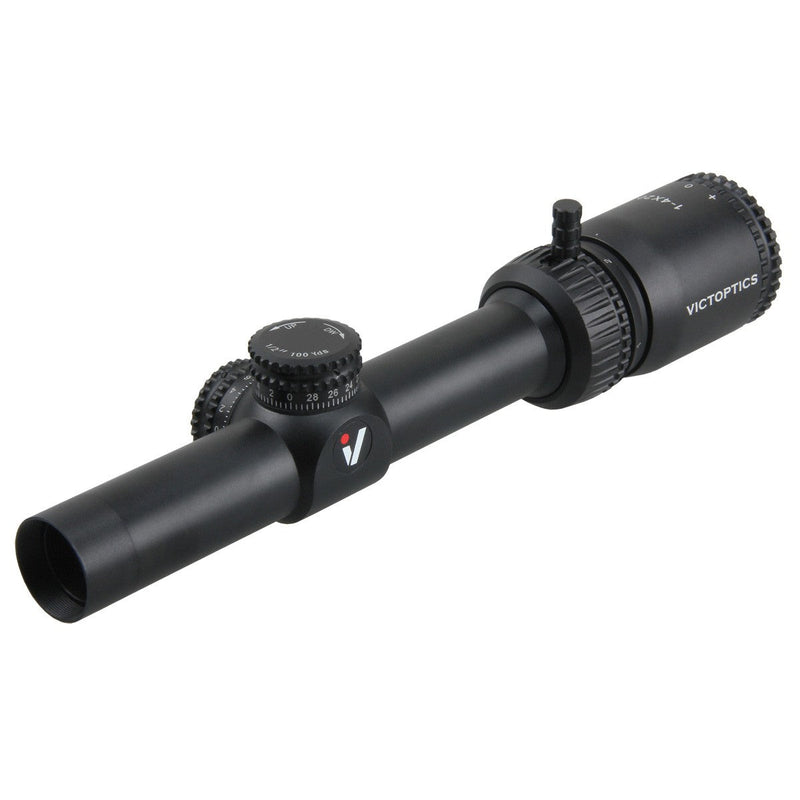

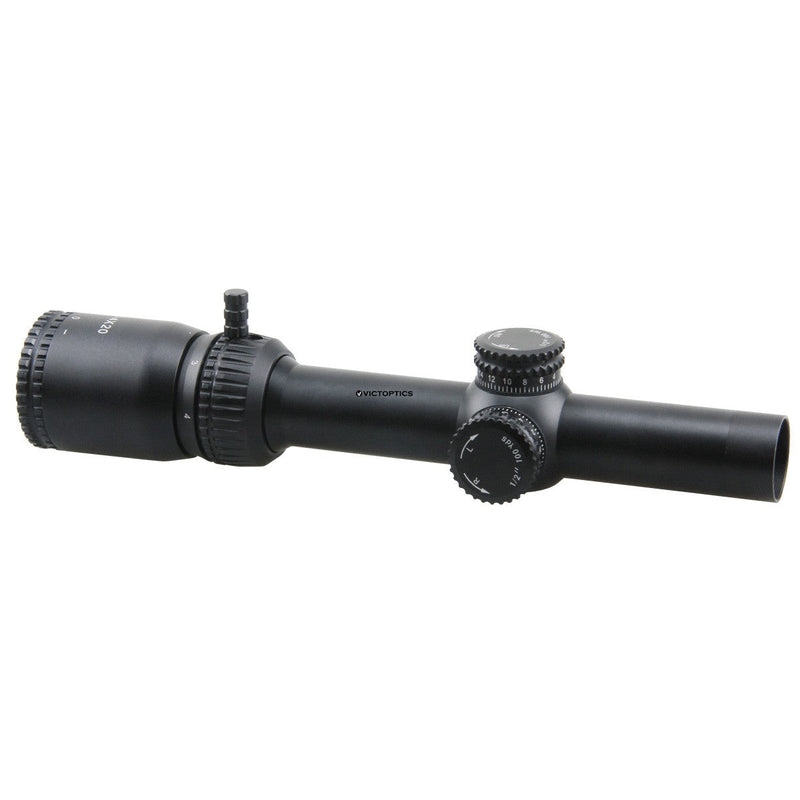

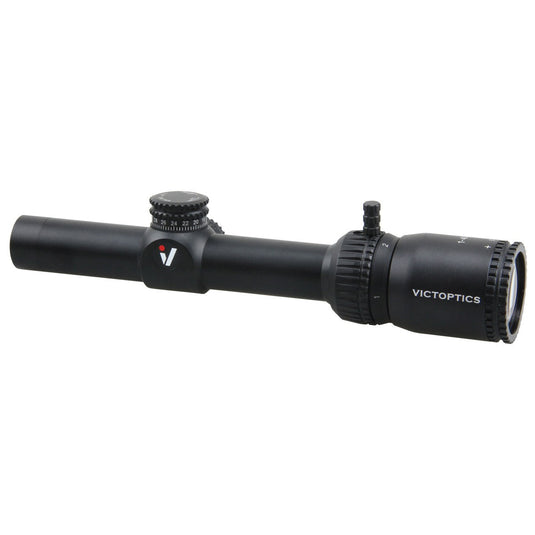

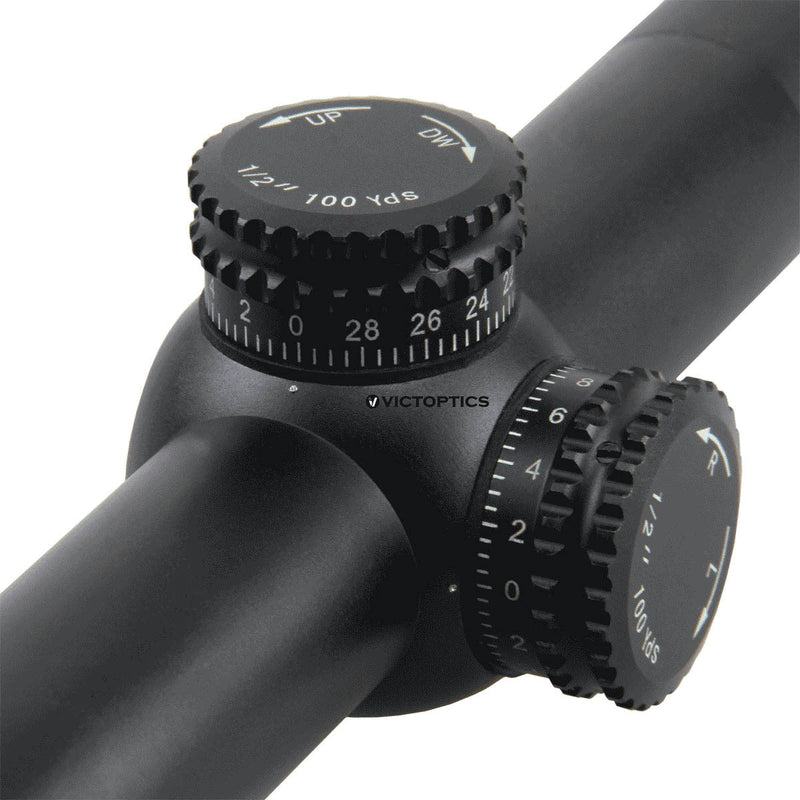

· 25.4mm 1" Monotube, Fully Multi Coated, 1/2 MOA Turret Adjustment.
· VMD-2 Mil & Ranging Reticle, Power Ring Throw Lever, Long Eye Relief.
| Magnification | 1-4x |
| Objective Lens Dia | 20 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 112-94 mm |
| Exit Pupil | 20.0-5.0 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 68-23.8 ft @ 100 yards |
| Linear Field of View @ 100 m | 22.7-7.9m @ 100 meters |
| Angular Field of View | |
| Reticle | VMD-2 |
| Tube Dia | 25.4 mm |
| Parallax Setting | 50 yards |
| Click Value | 1/2 MOA |
| Turret Function | |
| Elevation Adjustment Range | 200 MOA |
| Windage Adjustment Range | 200 MOA |
| Diopter Compensation | |
| Illumination Setting | N/A |
| Battery Type(NOT INCLUDE) | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 500 G |
| Housing Material | 6063-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 235 mm / 9.25 in |
| Weight (Net) | 325 g / 11.5 oz |

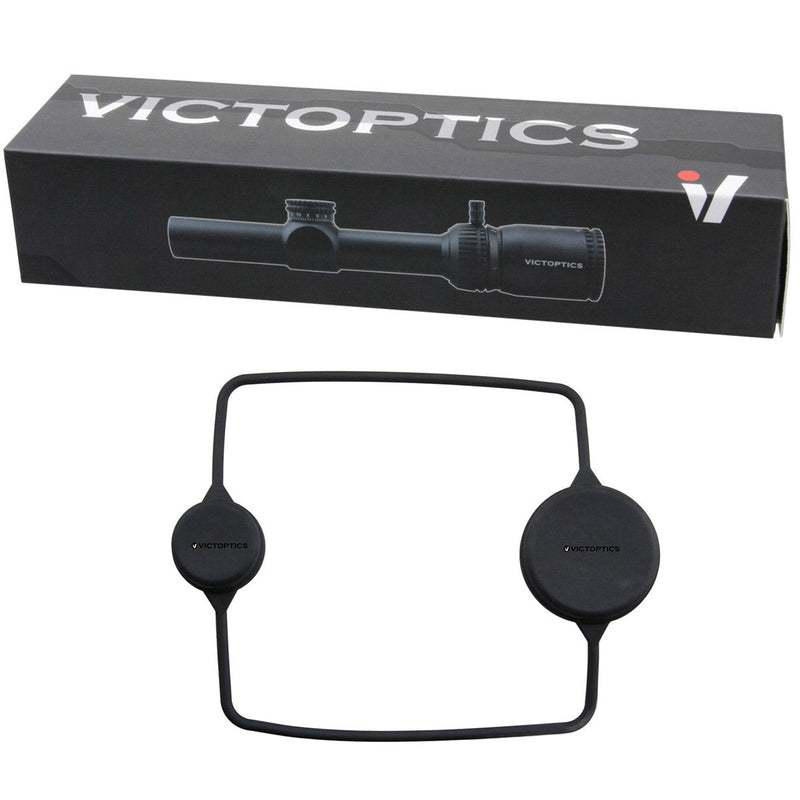

| Items in the Package | One Pair Of 25.4mm Weaver Scope Rings, Cleaning Cloth, Instruction, Lens Flip-Up Caps |
FEATURE
· 25.4mm 1" Monotube, Fully Multi Coated, 1/2 MOA Turret Adjustment.
· VMD-2 Mil & Ranging Reticle, Power Ring Throw Lever, Long Eye Relief.
SPECIFICATION
| Magnification | 1-4x |
| Objective Lens Dia | 20 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 112-94 mm |
| Exit Pupil | 20.0-5.0 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 68-23.8 ft @ 100 yards |
| Linear Field of View @ 100 m | 22.7-7.9m @ 100 meters |
| Angular Field of View | |
| Reticle | VMD-2 |
| Tube Dia | 25.4 mm |
| Parallax Setting | 50 yards |
| Click Value | 1/2 MOA |
| Turret Function | |
| Elevation Adjustment Range | 200 MOA |
| Windage Adjustment Range | 200 MOA |
| Diopter Compensation | |
| Illumination Setting | N/A |
| Battery Type(NOT INCLUDE) | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 500 G |
| Housing Material | 6063-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 235 mm / 9.25 in |
| Weight (Net) | 325 g / 11.5 oz |
| Items in the Package | One Pair Of 25.4mm Weaver Scope Rings, Cleaning Cloth, Instruction, Lens Flip-Up Caps |
SIZE

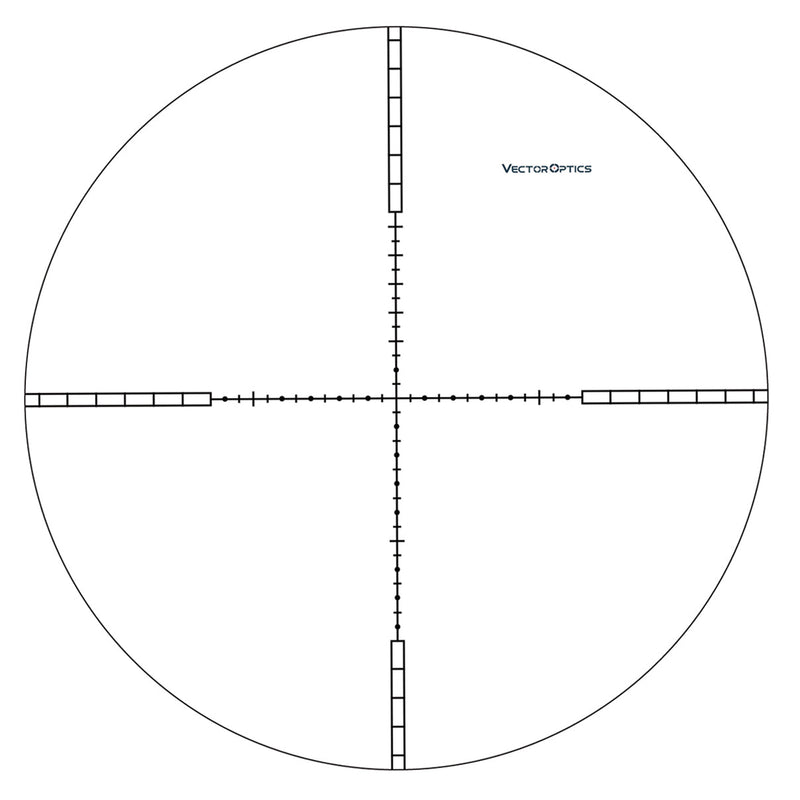

RETICLE
DOWNLOAD
