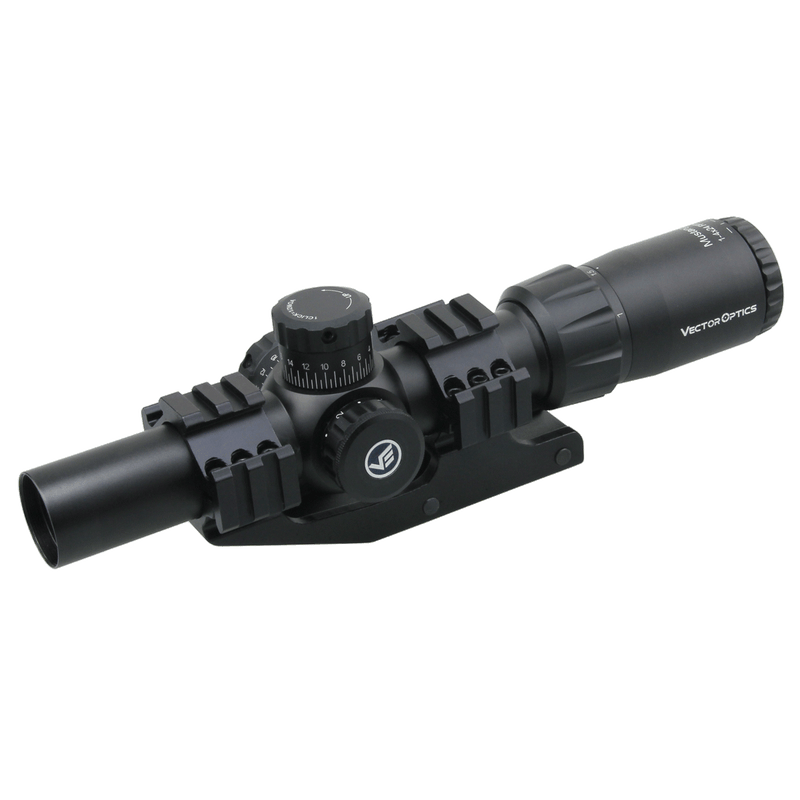

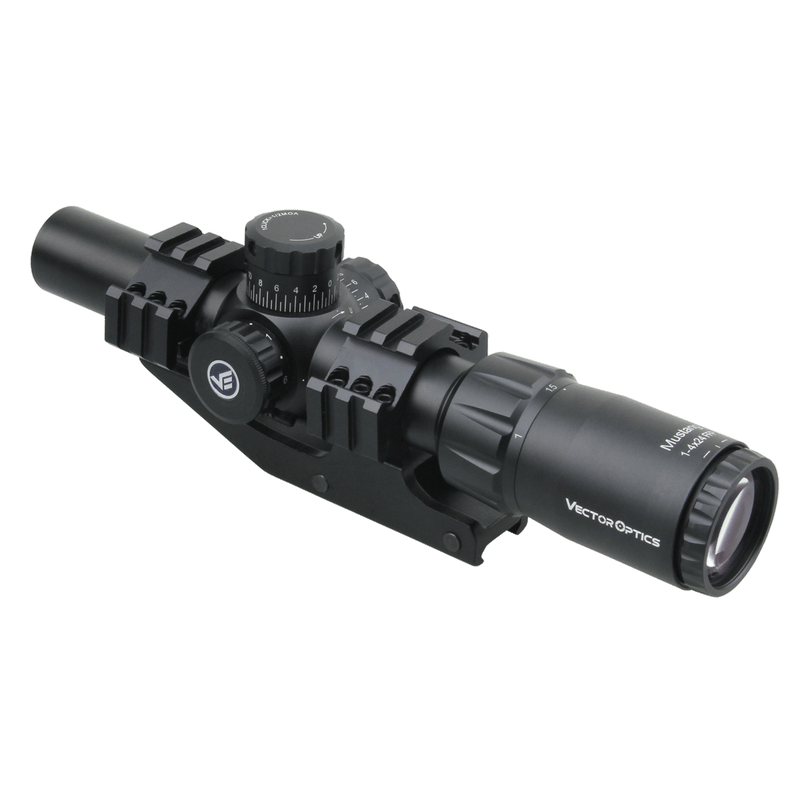

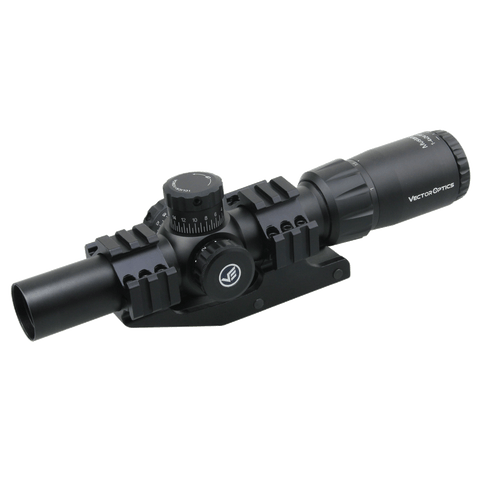

· True One Power Scope w/ Two Eyes Open at 1x Power, 30mm Monotube Made of 6061.
· 20.0° F.O.V @ 1x Power, 4" Long Eye Relief, Super Edge-to-Edge Crystal Clear Image.

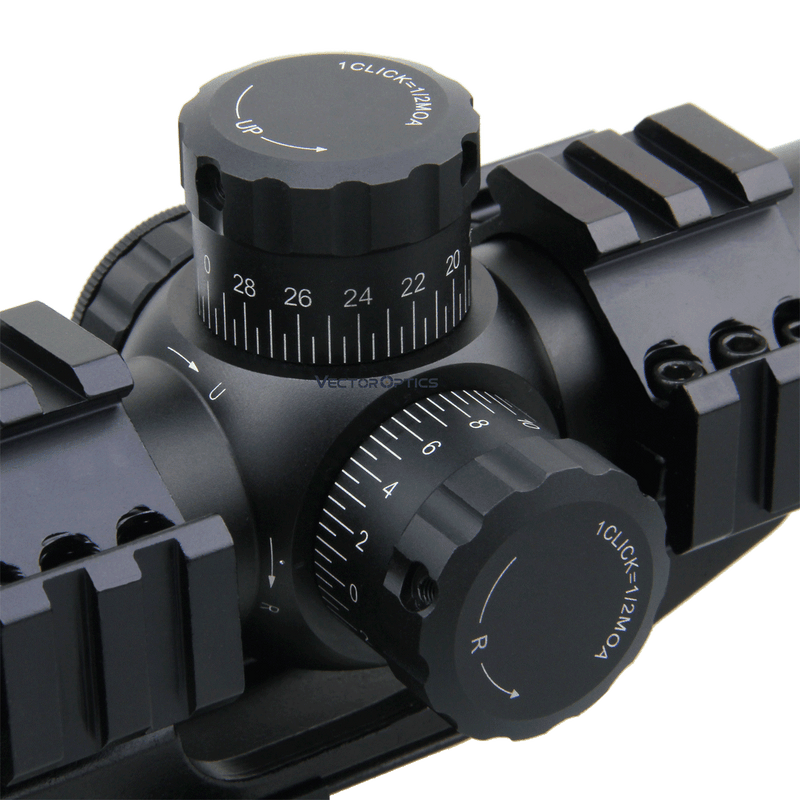

· First Focal Plane, 1/2 MOA Tactical Finger Adjustment with Turret Lock Feature.
· Etched Glass M-4RD MOA Reticle Used @ 4x Power with 6 Levels Red Illumination on Side.
| Magnification | 1-4x |
| Objective Lens Dia | 24 mm |
| Focal Plane | FFP |
| Eye Relief | 105-100 mm / 4.1-3.9 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 105.8-26.2 ft @100 yards |
| Linear Field of View @ 100 m | 35.28-8.73 m @100 meters |
| Angular Field of View ° | 20.0-5.0° |
| Reticle | Etched Glass M-4RD |
| Parallax Setting | 100 yards |
| Tube Dia | 30 mm |
| Click Value | 1/2 MOA |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 60 MOA |
| Windage Adjustment Range | 60 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Levels Red |
| Battery Type (NOT INCLUDE) | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX6 |
| Fogproof | Filled Nitrogen |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 255 mm / 10.0 in |
| Weight | 700 g / 24.6 oz |

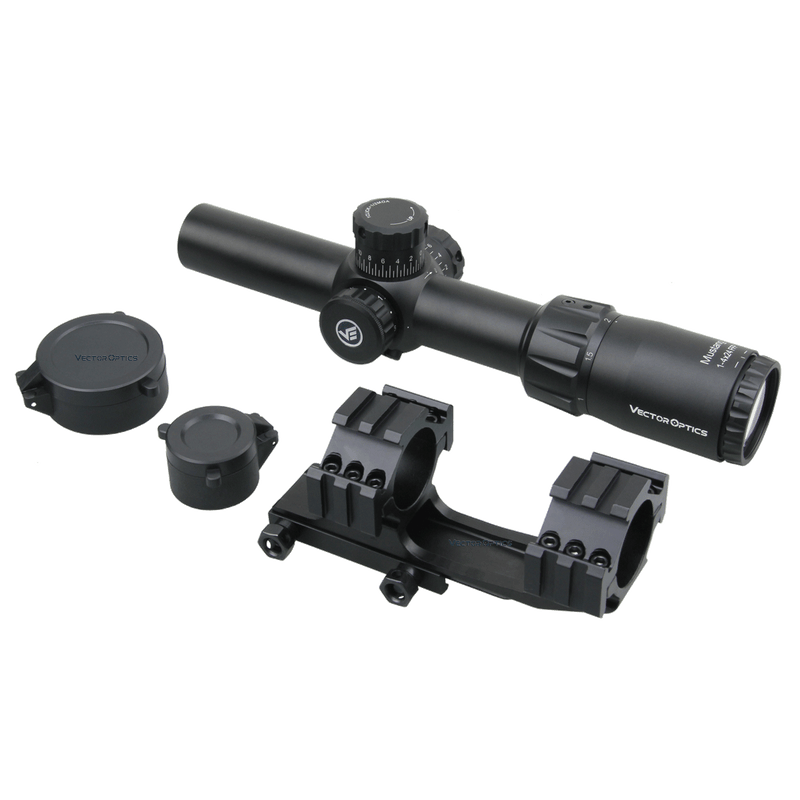

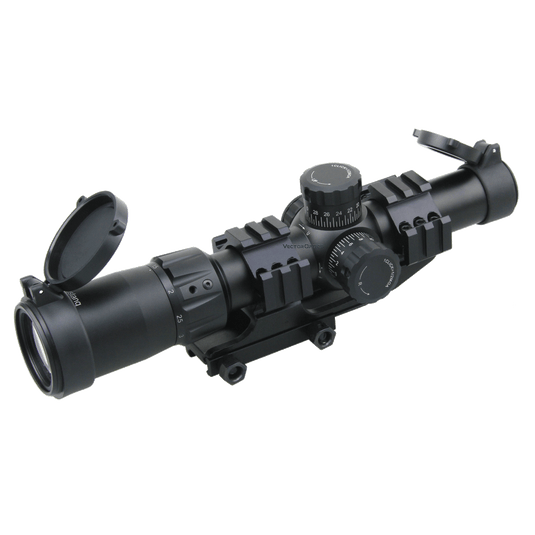

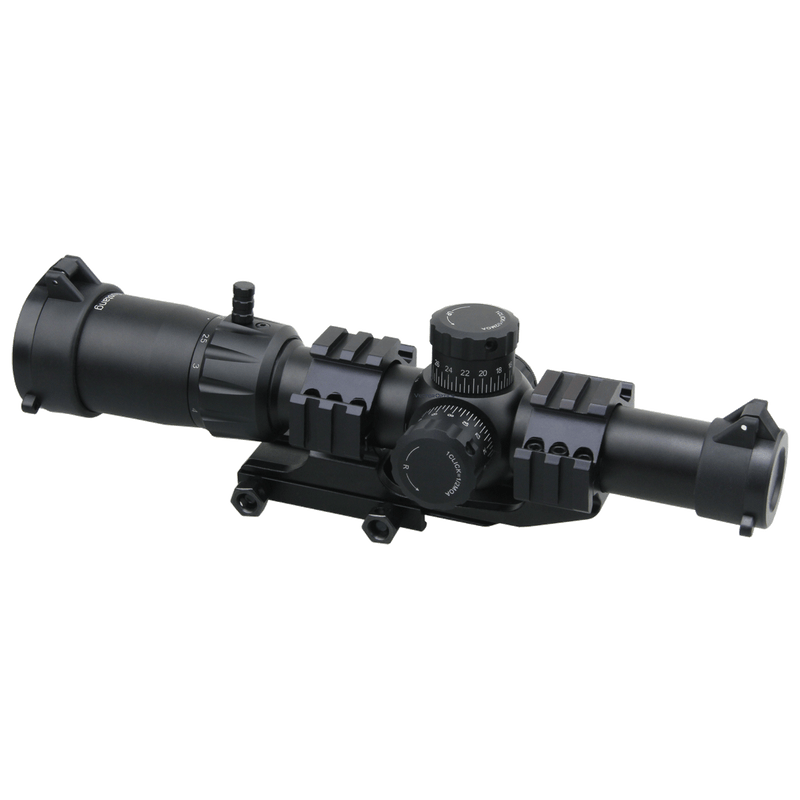

| Items in the Package | 30mm One-piece Picatinny Mount, Flip-up Caps, Power Ring Lever Mount and Cleaning Cloth, etc. |
FEATURE
· True One Power Scope w/ Two Eyes Open at 1x Power, 30mm Monotube Made of 6061.
· 20.0° F.O.V @ 1x Power, 4" Long Eye Relief, Super Edge-to-Edge Crystal Clear Image.
· First Focal Plane, 1/2 MOA Tactical Finger Adjustment with Turret Lock Feature.
· Etched Glass M-4RD MOA Reticle Used @ 4x Power with 6 Levels Red Illumination on Side.
SPECIFICATION
| Magnification | 1-4x |
| Objective Lens Dia | 24 mm |
| Focal Plane | FFP |
| Eye Relief | 105-100 mm / 4.1-3.9 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 105.8-26.2 ft @100 yards |
| Linear Field of View @ 100 m | 35.28-8.73 m @100 meters |
| Angular Field of View ° | 20.0-5.0° |
| Reticle | Etched Glass M-4RD |
| Parallax Setting | 100 yards |
| Tube Dia | 30 mm |
| Click Value | 1/2 MOA |
| Turret Function | Turret Lock |
| Elevation Adjustment Range | 60 MOA |
| Windage Adjustment Range | 60 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Levels Red |
| Battery Type (NOT INCLUDE) | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX6 |
| Fogproof | Filled Nitrogen |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 255 mm / 10.0 in |
| Weight | 700 g / 24.6 oz |
| Items in the Package | 30mm One-piece Picatinny Mount, Flip-up Caps, Power Ring Lever Mount and Cleaning Cloth, etc. |
SIZE

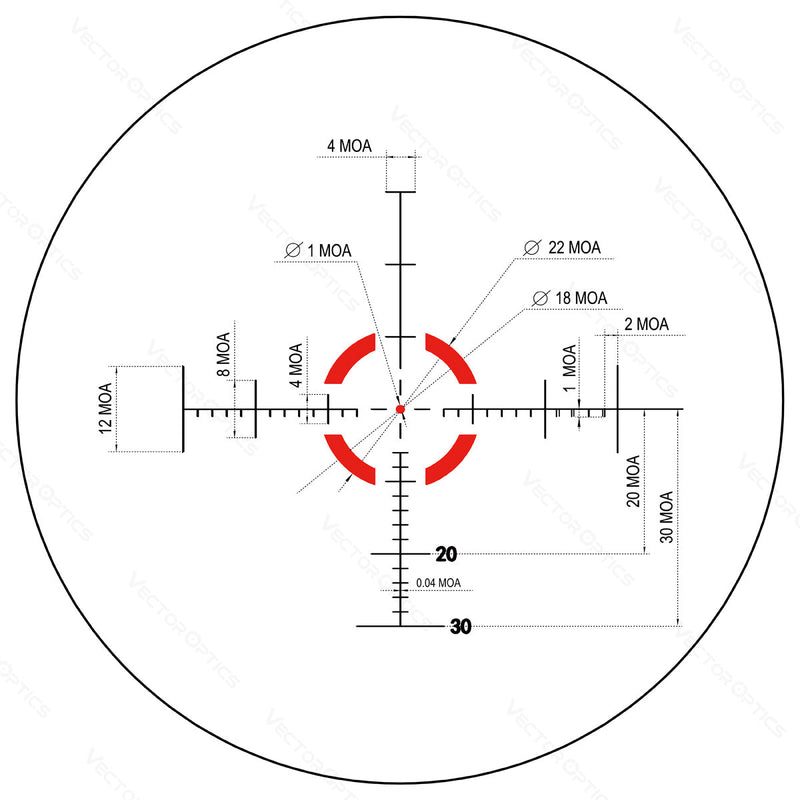

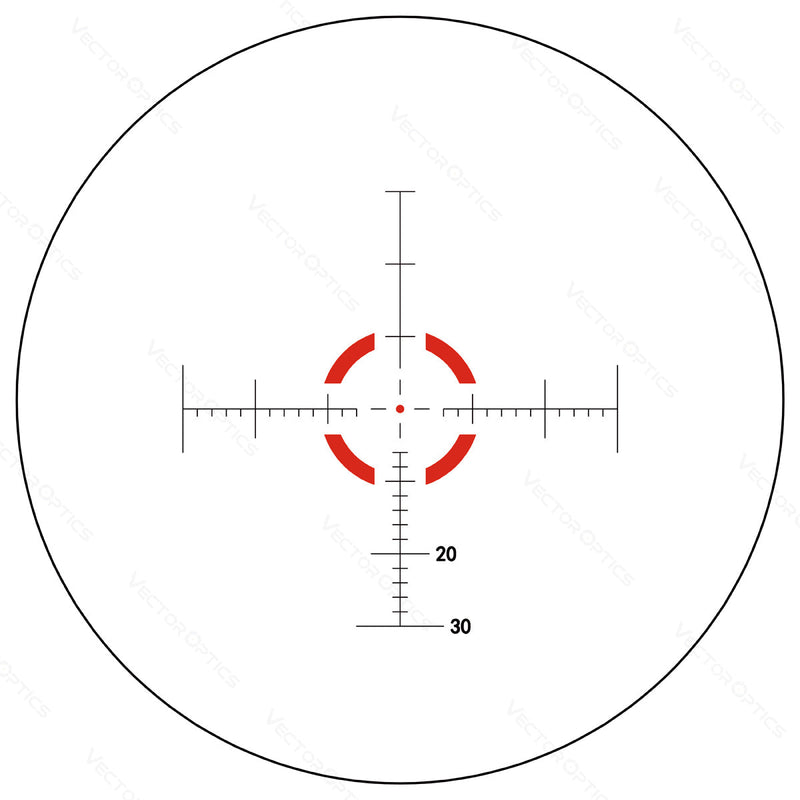

RETICLE
DOWNLOAD
